Automatic Edge Banding Machine with 13.5kW Total Power 18-24m/min Adjustable Speed and 8 Core Working Stations

Name: Automatic Edge Banding Machine with 13.5kW Total Power 18-24m/min Adjustable Speed and 8 Core Working Stations
Brand: Qingdao Baihang Industry and Trade Co., Ltd
SKU: 388Y
Availability: InStock

Brand Name:	BH
Model Number:	388Y
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Sheet Preheating Power:

0.3 KW

Glue Box Transmission Power:

0.55 KW

Conveyor Belt Motor Power:

2.2 KW

Motor Power:

0.35 KW X 2 (18,000 Rpm)

Fine Trimming Motor Power:

0.75 KW X 2 (18,000 Rpm, 300 Hz)

Packaging Details:

5000 x 750 x 1500 mm

Highlight:

Automatic Edge Banding Machine 13.5kW

Edge Banding Machine 18-24m/min speed

Automatic Edge Bander 8 core stations

Product Description

Automatic Edge Banding Machine Combining Multiple Processing Steps

The BHM388Y industrial edge bander is a multi-station integrated woodworking machine built for medium-to-large furniture factories. It integrates 8 core working stations: pre-milling, spiral glue coating, end cutting, rough trimming, fine trimming, contour tracking, flat scraping and buffing, finishing, and complete edge sealing in one single pass without secondary manual touch-ups.

Technical Specifications

Item	Data
Dimensions	5000 x 750 x 1500 mm
Weight	1500 kg
Operating Voltage	380V/50Hz
Total Power	13.5kW
Sheet Thickness	10~60mm
Conveyor Speed	18~24m/min
Minimum Width	50mm
Minimum Length	70mm
Operating Air Pressure	0.7MPa
Edge Band Thickness	0.3~3mm
Glue box heating power	1.5 kW
Sheet preheating power	0.3 kW
Glue box transmission power	0.55 kW
Conveyor belt motor power	2.2 kW
Trimming motor power	0.55 kW x 2 (12,000 rpm, 200 Hz)
Fine trimming motor power	0.75 kW x 2 (18,000 rpm, 300 Hz)
Tracking and profiling motor power	0.35 kW x 2 (18,000 rpm)
Polishing motor power	0.18 kW x 2

Functions and Performance

Pre-milling Unit

Double milling cutters remove saw marks and uneven burrs on raw board edges to guarantee tight glue fitting.

Spiral Glue Coating Tank

Internal spiral mixing ensures even heating and uniform glue coverage, avoiding insufficient adhesion or glue overflow.

Dual Trimming Units

Independent high-speed oblique motors complete rough and fine trimming sequentially to cut excess edging strips flatly.

Flat Scraping & Buffing

The scraper clears tiny uneven edges after trimming; two polishing wheels wipe off residual glue marks for smooth, flawless edge surfaces.

Reliable Brand Configuration

It adopts touch-screen PLC control system plus high-precision encoder to synchronize all mechanical actions and lower failure rates. Key core accessories adopt well-known brands: AirTAC cylinders, HIWIN linear guides, Schneider electrical components, Changchuan feed motors and Autonics proximity switches. The integrated timing control system optimizes running stability and operation safety.

Application & After-Sales

Ideal for mass production of custom cabinets, wardrobes, wooden doors and straight-edge decorative panels. The fully automatic workflow effectively reduces labor input and upgrades finished product texture. We offer a 1-year spare parts warranty, free remote video technical guidance and on-site factory training for overseas purchasers.

Product Images

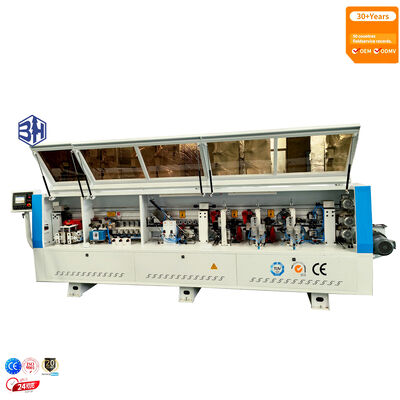

Front View

Side View

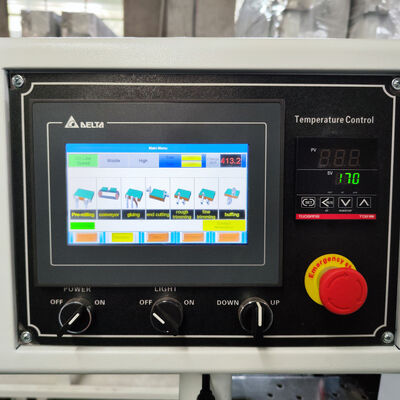

Control Panel

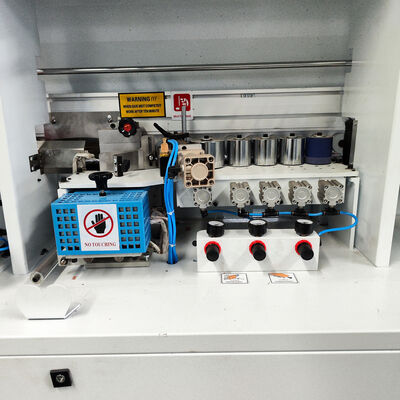

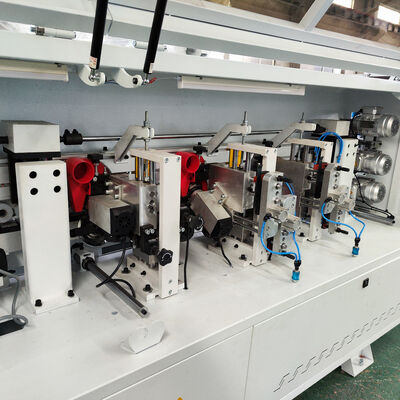

Processing Station

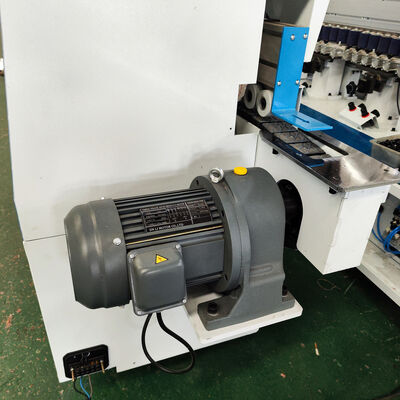

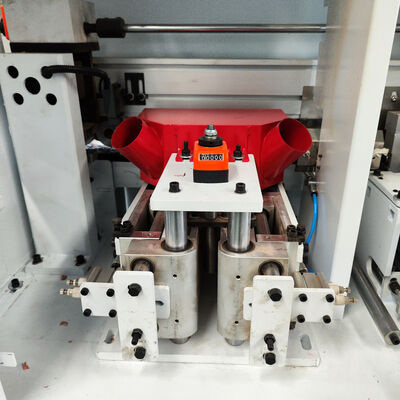

Detailed View

Operational View
