| Brand Name: | BH |
| Model Number: | 368F |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 2000Sets/Year |

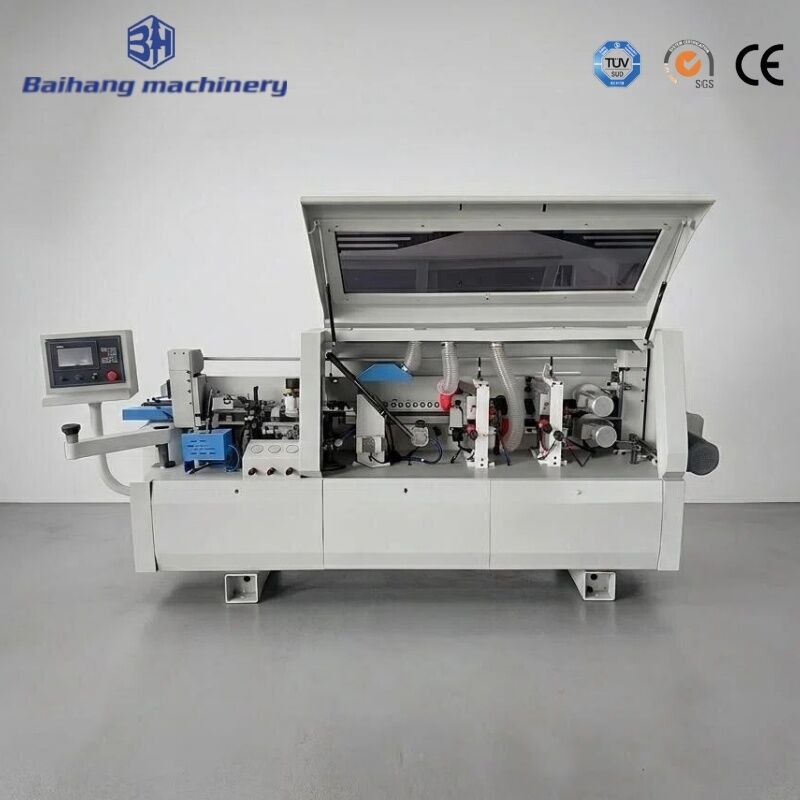

The BHM368F Edge Banding Machine is a high-performance and reliable woodworking equipment designed for straight-line edge banding of various panel materials, including MDF, particleboard, and plywood. With a compact structure and user-friendly operation, it is widely used in custom furniture, kitchen cabinets, and office furniture production lines, significantly improving both edge quality and production efficiency.
Intelligent Control System
Equipped with a standard PLC microcomputer controller based on time-control principles, ensuring stable and reliable operation with a simple interface and enhanced safety.
Precision Gluing System
The glue tank heats hot-melt adhesive, and the spiral-structure applicator ensures even glue distribution across the board edge for strong adhesion.
End Trimming
A single-guide-rail design precisely cuts off excess edge banding at both ends of the panel, ensuring clean and square edges.
Fine Trimming
High-speed oblique cutting motor with alloy discs provides smooth and uniform trimming, with adjustable settings to suit different board thicknesses and materials.
Scraping Function
Removes ripple marks left by the trimming process, making the upper and lower edges smoother and neater.
Buffing Unit
Polishes the edge banding section for a glossy, refined finish, enhancing the overall appearance of the finished panel.
High Efficiency & Stability
Conveyor speed reaches 16m/min, suitable for continuous mass production and improved output.
Wide Processing Range
Handles board thickness from 10mm to 60mm, edge banding thickness from 0.3mm to 3mm, minimum board width of 50mm, and minimum board length of 70mm, covering most common furniture panel sizes.
Easy Operation
PLC control simplifies the process, reduces manual adjustments, and lowers the skill requirement for operators.
Superior Edge Quality
From gluing, trimming, scraping, to buffing — every step is optimized to deliver smooth, neat, and durable edges.
Reliable Components
Uses branded parts and accessories (see page 4 of the brochure), ensuring long-term durability and stable performance.
Detailed images
Intelligent controlStandard
PLC microcomputer control,using the principle of time control,greatly increases stability and safety.
Glue tank
The glue coating device heats hot meltadhesive through a glue pot and uses aspiral structure to
evenly apply glue,ensuring a strong adhesive force.
End cutting
Qitou adopts a single guide rail to cut theedges of the board at both ends.
Fine trimming
High speed oblique cutting motor,adjustable operation is more convenient,and the alloy disc ensures
smooth and even trimming.
Scraping
Used to eliminate ripple marks caused bynon-linear cutting processes during edgetrimming, making the
upper and lower partsof the edge material smoother and neater.
Buffing
Polishing makes the edge sealing sectionsmoother and more effective.
FAQ
1. Do you have any MOQ limit for product orders?
Low MOQ, 1 set for sample checking is available. We will give discounted price under large quantity.
2. Is it OK to print my logo on the machine?
Yes. Please inform us formally before our production and confirm the design firstly based on our machines.
3. How does your factory do regarding quality control?
All the products will be100% checked before shipment.
4. What is the lead time?
It usually takes 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. What are your terms of packing?
Generally, we pack our goods in neutral cartons/wrap film under a full container. Or we will make a wooden box. And we also can according to your requirements if any.
6. How to solve quality problems after sales?
Take photos and videos of the problems and send them to us. We will make a satisfactory solution for you within 72 hours when we confirm the problems.
7. How could I get a sample?
The sample will be shipping with you. And you will be charged shipping costs. Express delivery charge depends on the quantity of the samples.
8: Is it possible to load mixed products in one container?
Yes, it’s available.
