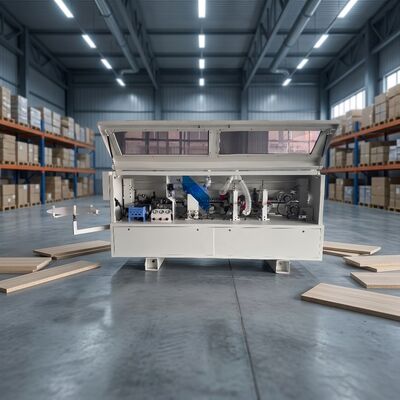

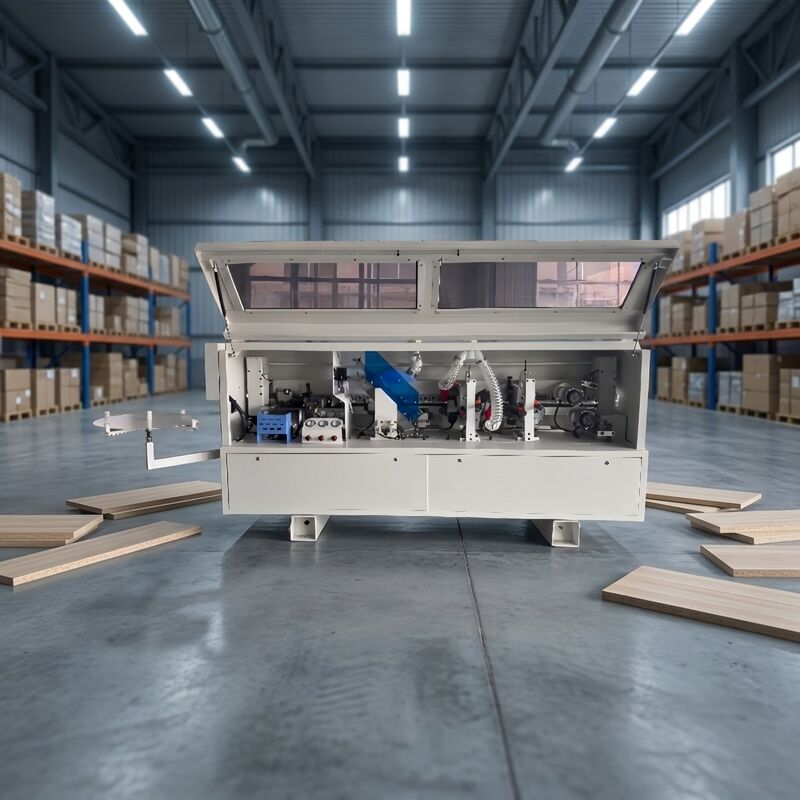

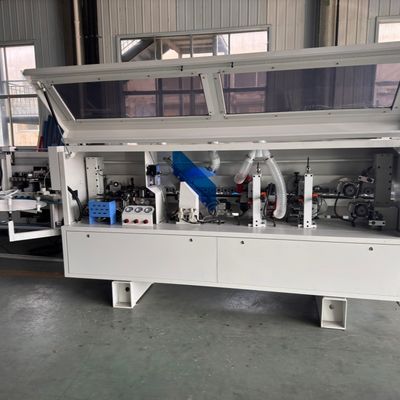

Compact 5-Function Automatic Edge Banding Machine with 7KW Power for Woodworking

Compact 5-Function Automatic Edge Banding Machine with 7KW Power for Woodworking

Brand Name:	BH
Model Number:	368F
MOQ:	1
Price:	negotiate
Payment Terms:	T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Power:

7KW

Thickness:

10-60mm

Size:

3500X750X1500mm

Presssure:

0.6-0.8mpa

Weight:

1000KG

Packaging Details:

wooden packge

Highlight:

5-function automatic edge banding machine

compact edge banding machine for woodworking

7KW automatic edge banding machine

Product Description

Compact Automatic Edge Banding Trimming Machine 7KW Woodworking Equipment

The 5-function edge banding machine is a compact, high-efficiency and high-performance woodworking equipment tailored for small and medium-sized furniture producers. Integrating five core functions including gluing, end trimming, trimming, scraping and polishing, the machine can create smooth, firm and aesthetic edge finishes for various panel materials. It delivers industrial-standard processing effects with simple operation and easy daily maintenance, serving as a cost-effective and high-performance option for small and medium processing workshops.

Product Overview

This edge banding machine is compatible with multiple edge banding materials such as PVC, ABS, melamine and natural wood veneer, featuring wide adaptability for different panel processing. It works perfectly with MDF, plywood, particleboard and laminate boards, achieving tight bonding and delicate edge finishing for every workpiece. Adopting a robust frame and high-precision parts, the equipment delivers stable operation and outstanding durability. With an ergonomic structure and intuitive control system, it allows operators to flexibly adjust temperature, feeding speed and cutting accuracy, ensuring stable and professional processing results at all times.

Technical Specifications

Model	BH-368F	Edge Thickness	0.3-3mm
Motor Power	7KW	Minimum Width of Board	50mm
Machine Size	3500X750X1500mm	Air Pressure	0.6-0.8mpa
Panel Thickness	10-60mm	Weight	1000kg
Feed Speed	18~24m/min	Weight After Packaging	1100kg

Main Features

Glue Pot System

The machine is equipped with a high-performance hot melt glue pot that provides even heating and consistent glue flow. This ensures that adhesive is applied uniformly along the panel's edge, resulting in strong bonding and smooth surface coverage. The glue system helps eliminate gaps or weak spots, significantly improving the overall durability and visual appearance of the finished product.

End Trimming

The end trimming module accurately trims redundant edge banding from the front and rear ends of panels. It ensures neat, flush and seamless edge alignment for every workpiece. Equipped with wear-resistant guide rails and high-precision cutting blades, the unit maintains outstanding trimming accuracy even during long-duration continuous production.

Trimming

Designed for fast edge shaping, the trimming system strips off surplus edge materials to fit the natural contour of panels. Its high-speed motor operates with low vibration to deliver clean and precise cuts, optimizing processing accuracy and prolonging the service life of cutting tools. This pre-trimming procedure lays a solid foundation for subsequent fine finishing work.

Scraping

Following the trimming process, the scraping unit removes tiny blemishes and residual glue on panel edges. This critical procedure ensures uniform and professional edge presentation. It smooths out uneven edge surfaces, improving both the visual effect and touch texture of finished products to deliver a high-grade furniture appearance.

Polishing

As the final finishing step, the polishing system adopts double buffing wheels to grind and smooth edges into a sleek, glossy finish. Beyond enhancing the ornamental effect, it forms a protective layer on edges to resist scratches and abrasion. The processed edges fully meet the high aesthetic and durability requirements of modern furniture manufacturing.

Key Advantages

High Efficiency and Productivity: This all-in-one machine combines five core edge banding processes into one compact device, greatly optimizing overall working efficiency. It supports uninterrupted continuous operation with little manual operation required, effectively cutting down production cycle time and labor expenses.
Precision and Consistency: Every working procedure from gluing to final polishing is precisely engineered with high-standard configurations. Equipped with an advanced control system, the equipment delivers uniform processing results for mass production, keeping stable product quality that complies with international woodworking industry norms.
Durable Construction and Reliable Performance: Adopting premium mechanical accessories and reinforced steel frame structure, the machine is specially built for long-term industrial working scenarios. Its sturdy structural design effectively lowers vibration during high-speed operation, ensuring stable running status and prolonging the overall service life of the equipment.
User-Friendly Operation: Featuring a simplified control panel and flexible adjustable parameters, the machine allows operators to freely regulate temperature, glue flow rate and trimming speed. Operators can master efficient and safe machine operation quickly without receiving complicated professional training.
Compact Design and Easy Maintenance: The 5-function edge banding machine adopts a space-saving integrated structure, perfectly adapting to the layout demands of small and medium-sized processing workshops. It features simple daily maintenance procedures with easily cleanable components and easily accessible spare parts, reducing equipment downtime and daily operating costs.
Strong Adhesion and Perfect Finishing: Benefiting from the upgraded glue pot system and precise trimming structure, the machine achieves ultra-strong bonding performance and flawless seamless edge finishing. The refined polished edge not only improves product durability but also optimizes visual appearance, making it ideal for high-grade furniture manufacturing.

Applications

The 5-Function Edge Banding Machine finds extensive application in diverse woodworking and furniture manufacturing scenarios. It fits perfectly for:

Furniture Manufacturing: Great for edge sealing of cabinets, wardrobes, office desks, tables, drawers, shelves and other panel-type furniture. Smooth, gap-free edge treatment improves service life as well as visual effect.
Interior Decoration Projects: Applied in the fabrication of decorative wall panels, door frames and indoor fittings. It delivers professional surface effects compliant with contemporary design requirements.
Woodworking and Cabinet Making: Adaptable to edge processing on MDF, particleboard, plywood and laminated boards. It creates neat, accurate edges to prevent moisture intrusion and edge chipping.
Small and Medium Workshops: Simple operation and compact structure make it well-suited for small furniture workshops, custom carpentry studios and training institutions. It delivers industrial-level performance with cost advantages.
Export and Commercial Production: Built to satisfy global quality specifications. The 5-function unit serves as a trustworthy option for foreign furniture manufacturers and distributors looking for long-lasting, low-upkeep and high-productivity edge banding equipment.

Component Overview

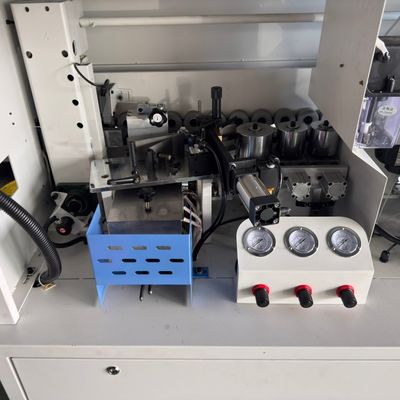

Glue Pot

The glue pot is responsible for heating and melting adhesive, and evenly coating glue onto the edge of boards. Stable temperature control ensures uniform glue application, which realizes tight bonding between edge banding tape and panels and avoids degumming.

Glue Pot System

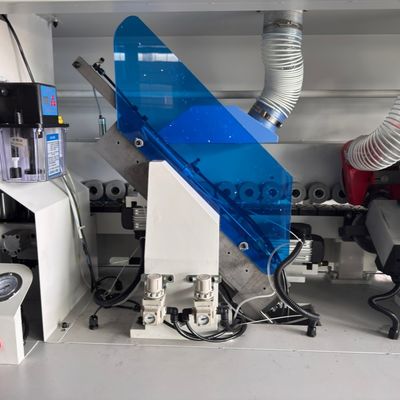

End Cutting Unit

The end cutting mechanism cuts off the excess edge tape protruding at the front and rear ends of workpieces. It trims the edge tape flush with both ends of the panel to obtain neat, flat end surfaces.

End Cutting Unit

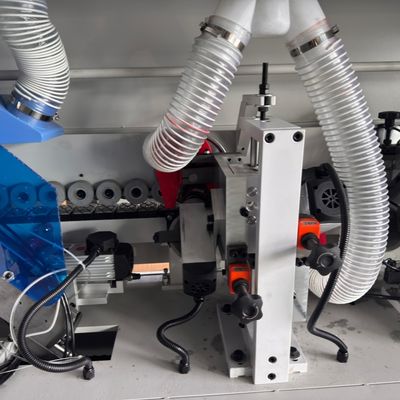

Trimming Unit

The trimming assembly precisely shapes the upper and lower edges of edge banding tape. It removes redundant material and creates smooth rounded transition arcs between the tape and panel surface for exquisite appearance.

Trimming Unit

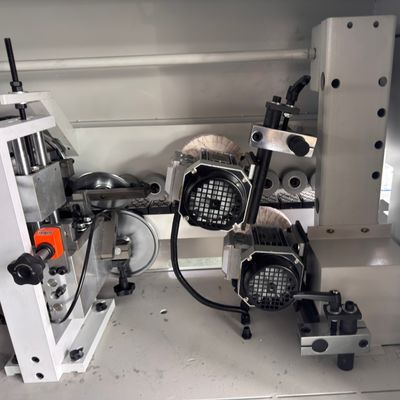

Buffing Unit

The buffing wheel polishes and cleans the trimmed edges. It eliminates tiny scratches and burrs left after trimming, making the edge surface glossy and improving the overall finish effect.

Buffing Unit
