| Brand Name: | BH |
| Model Number: | BHM START 300 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 3000Sets/Year |
Product Overview

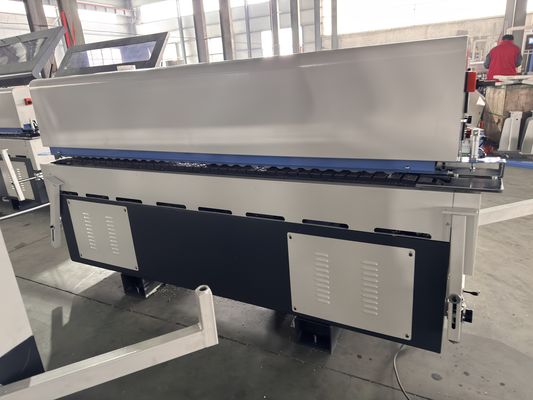

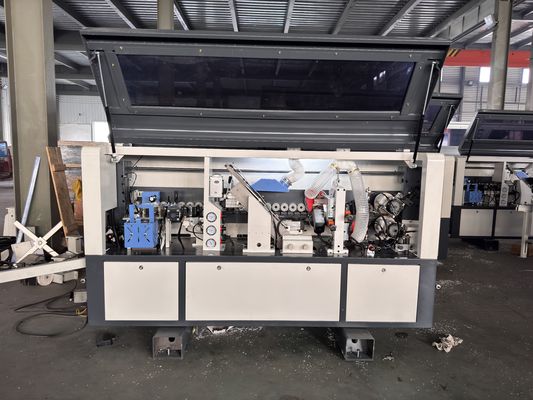

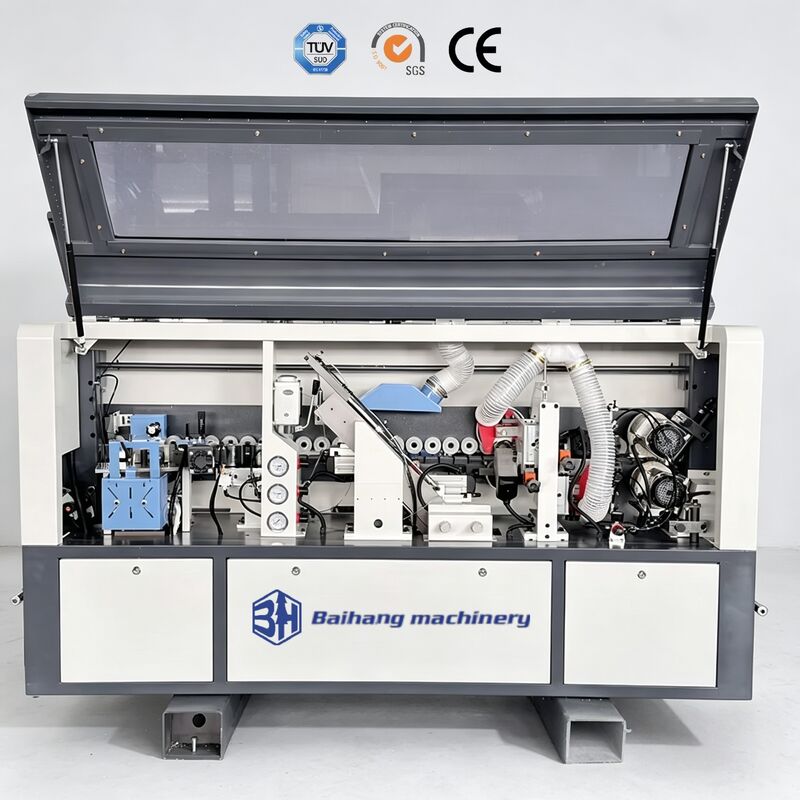

The BHM START 300 is a fully automatic edge banding machine designed for small to medium-sized board shops and custom furniture workshops. With compact dimensions of 3000×750×1500mm and 800kg weight, it delivers industrial-grade performance in a space-saving footprint. Running at 16m/min conveyor speed, it handles board thicknesses of 10-60mm and edge banding of 0.3-3mm, with minimum workpiece sizes of 50mm (width) and 70mm (length). Powered by 7kW at 380V/50Hz with 0.7MPa air pressure, the machine features a vertical control panel and hand-cranked digital beam adjustment. The integrated processing sequence — gluing, pressing, rough trimming, end cutting, corner trimming, dust extraction, secondary scraping, and buffing — completes the entire edge banding process in a single pass.
| Specification | Value | Specification | Value |
|---|---|---|---|
| Outline dimension | 3000*750*1500mm | Conveyor speed | 16m/min |
| Machine weight | 800KG | Minimum width of board | 50mm |
| Working voltage | 380V/50Hz | Minimum length of board | 70mm |
| Total power | 7KW | Working pressure | 0.7Mpa |
| Plate thickness | 10-60mm | Edge banding thickness | 0.3~3mm |
Encoder Precision Control – Encoder-driven motion control ensures sensitive response and low failure rate, significantly improving operational reliability.
PLC Intelligent Control – Standard PLC microcomputer system with time-control logic enhances machine stability and operator safety.
Large-Capacity Glue Pot – Supports continuous operation with spiral-structure glue applicator for even, strong adhesive coverage.
Digital Beam Adjustment – Hand-cranked mechanism with digital readout allows quick, precise height changes for different board thicknesses.
Precision End Cutting – Single-rail unit accurately trims excess edge banding from both ends for a clean, flush finish.
Fine Trimming – High-speed oblique cutting motor with alloy disc ensures smooth, uniform, and precise trimming.
Secondary Scraping – Removes ripple marks from trimming, delivering flat, professional edges.
Buffing Unit – Polishes the sealed edge to a glossy, high-quality surface finish.
Dust Extraction – Large-diameter vacuum port keeps the work area clean and reduces maintenance.
Compact & Powerful – Small footprint saves valuable workshop space while maintaining 16m/min production speed.
Quick Changeover – Digital beam adjustment enables fast switching between different panel thicknesses, ideal for short-run custom orders.
High Reliability – Encoder-based control reduces mechanical wear, lowers breakdown risk, and cuts maintenance costs.
User-Friendly – Vertical display panel and PLC logic allow new operators to master the machine with minimal training.
Consistent Quality – Fully automated one-pass processing ensures every panel achieves identical, defect-free edge finishes.
Cost-Effective – Industrial features at a competitive price point, perfect for upgrading from manual or semi-automatic equipment.
Energy-Efficient – Only 7kW total power consumption keeps operating costs low.
Custom Cabinets & Kitchens – Ideal for MDF and particleboard cabinet doors, drawer fronts, and shelving units.
Boutique Furniture – Perfect for small-batch, high-end tables, chairs, bookshelves, and decorative panels.
Office Furniture – Suited for desktops, filing cabinets, conference tables, and modular workstations.
Retail Displays & Store Fixtures – Produces clean, polished edges for shelving, POS units, and exhibition booths.
DIY & Small Workshops – Handles minimum 50×70mm panels, suitable for hobbyists and small-scale entrepreneurs.
Educational Facilities – User-friendly controls make it ideal for woodworking schools and vocational training.
Renovation Projects – Flexible processing for built-in wardrobes, kitchen islands, and vanity units.
