Automatic Edge Banding Machine with 16m/min Speed for 10-60mm Plate Thickness and 7KW Total Power

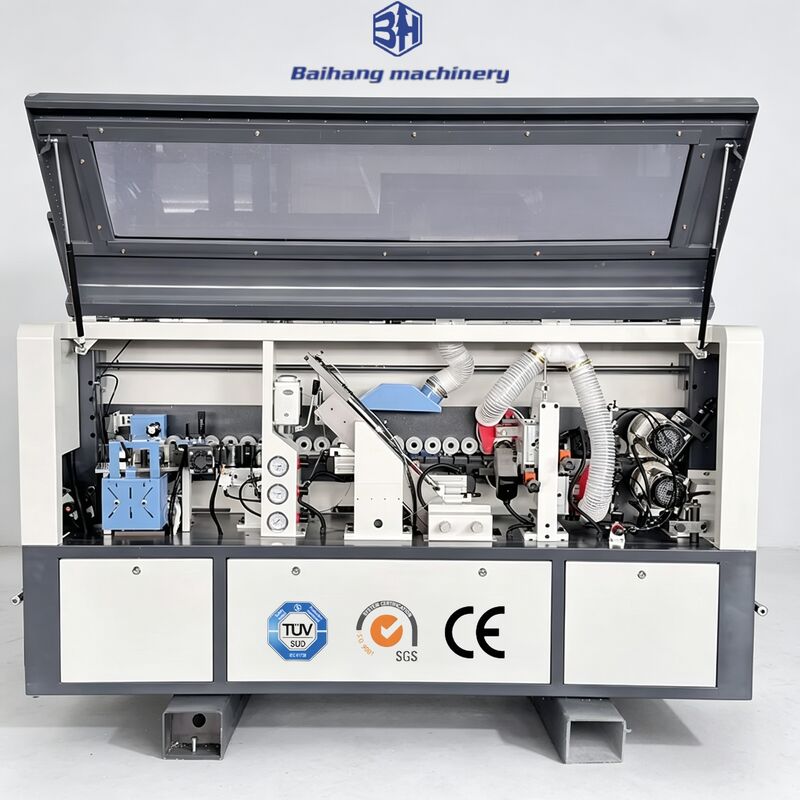

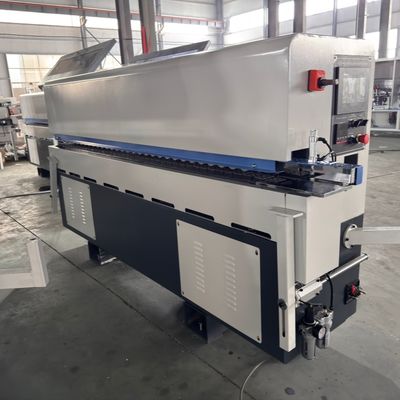

The BHM START 300 is a fully automatic edge banding machine designed for small to medium-sized board shops and custom furniture workshops. With compact dimensions of 3000×750×1500mm and 800kg weight, it delivers industrial-grade performance in a space-saving footprint.

Running at 16m/min conveyor speed, it handles board thicknesses of 10-60mm and edge banding of 0.3-3mm, with minimum workpiece sizes of 50mm (width) and 70mm (length). Powered by 7kW at 380V/50Hz with 0.7MPa air pressure, the machine features a vertical control panel and hand-cranked digital beam adjustment.

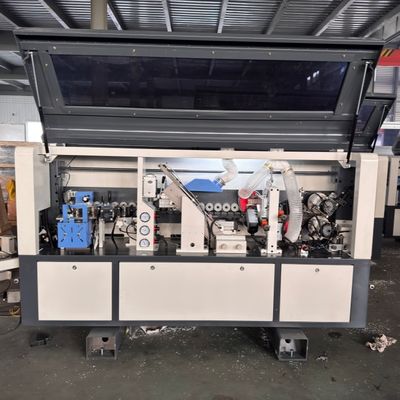

The integrated processing sequence — gluing, pressing, rough trimming, end cutting, corner trimming, dust extraction, secondary scraping, and buffing — completes the entire edge banding process in a single pass.

• Encoder Precision Control - Encoder-driven motion control ensures sensitive response and low failure rate, significantly improving operational reliability.
• PLC Intelligent Control - Standard PLC microcomputer system with time-control logic enhances machine stability and operator safety.
• Large-Capacity Glue Pot - Supports continuous operation with spiral-structure glue applicator for even, strong adhesive coverage.
• Digital Beam Adjustment - Hand-cranked mechanism with digital readout allows quick, precise height changes for different board thicknesses.
• Precision End Cutting - Single-rail unit accurately trims excess edge banding from both ends for a clean, flush finish.
• Fine Trimming - High-speed oblique cutting motor with alloy disc ensures smooth, uniform, and precise trimming.
• Secondary Scraping - Removes ripple marks from trimming, delivering flat, professional edges.
• Buffing Unit - Polishes the sealed edge to a glossy, high-quality surface finish.
• Dust Extraction - Large-diameter vacuum port keeps the work area clean and reduces maintenance.

• Compact & Powerful - Small footprint saves valuable workshop space while maintaining 16m/min production speed.
• Quick Changeover - Digital beam adjustment enables fast switching between different panel thicknesses, ideal for short-run custom orders.
• High Reliability - Encoder-based control reduces mechanical wear, lowers breakdown risk, and cuts maintenance costs.
• User-Friendly - Vertical display panel and PLC logic allow new operators to master the machine with minimal training.
• Consistent Quality - Fully automated one-pass processing ensures every panel achieves identical, defect-free edge finishes.
• Cost-Effective - Industrial features at a competitive price point, perfect for upgrading from manual or semi-automatic equipment.
• Energy-Efficient - Only 7kW total power consumption keeps operating costs low.

• Custom Cabinets & Kitchens - Ideal for MDF and particleboard cabinet doors, drawer fronts, and shelving units.
• Boutique Furniture - Perfect for small-batch, high-end tables, chairs, bookshelves, and decorative panels.
• Office Furniture - Suited for desktops, filing cabinets, conference tables, and modular workstations.
• Retail Displays & Store Fixtures - Produces clean, polished edges for shelving, POS units, and exhibition booths.
• DIY & Small Workshops - Handles minimum 50×70mm panels, suitable for hobbyists and small-scale entrepreneurs.
• Educational Facilities - User-friendly controls make it ideal for woodworking schools and vocational training.
• Renovation Projects - Flexible processing for built-in wardrobes, kitchen islands, and vanity units.
