Automatic Edge Banding Machine designed for continuous operation and consistent edge finishing in woodworking industries

Automatic Edge Banding Machine designed for continuous operation and consistent edge finishing in woodworking industries

Brand Name:	BH
Model Number:	BHM 367Y
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Document:

BH300F PRO(1).pdf

Total Power:

9KW

Plate Thickness:

10-60mm

Speed:

18~24m/min

Dimension:

3600*750*1500mm

Voltage:

380V/50Hz

Edge Banding Thickness:

0.3~3mm

Conveyor Speed:

18~24m/min

Minimum Width Of Board:

50mm

Minimum Length Of Board:

70mm

Packaging Details:

3600*850*1600mm

Highlight:

Automatic Edge Banding Machine for woodworking

Continuous operation edge banding machine

Consistent edge finishing banding machine

Product Description

BH300F PRO Compact Automatic Edge Banding Machine Product Details

Product Overview

BH300F PRO is a space-saving full-process edge banding equipment independently developed by Baihang Machinery, tailor-made for small furniture workshops and medium-sized custom cabinet factories. Compared with large heavy-duty edge banders, this model adopts a compact 3.3m integrated frame, cutting floor occupation by nearly 30% while retaining six core processing stations from pre-milling to polishing. It supports continuous high-speed production of MDF, particle board, solid wood panels, compatible with PVC, melamine and veneer edge strips ranging from 0.3mm to 3mm. With total power only 9kW, it greatly lowers daily power consumption, becoming a cost-effective entry-level automatic edge banding solution for new woodworking factories.

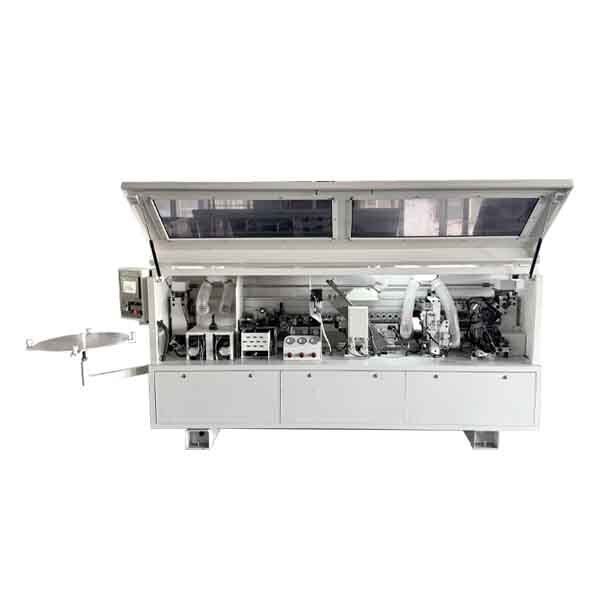

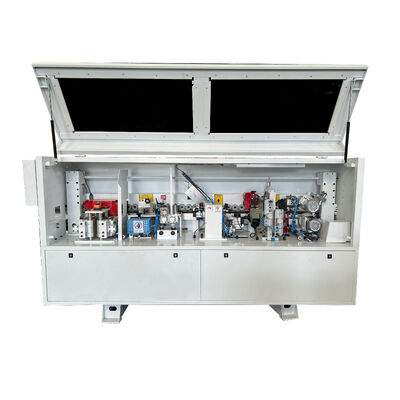

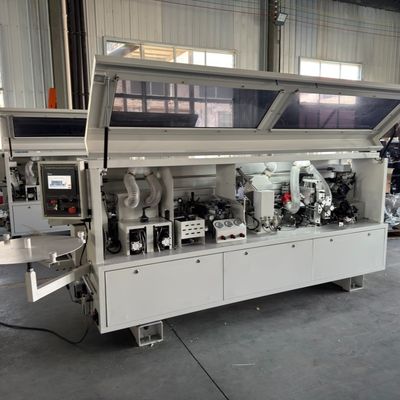

Core Processing Stations

Every working unit is independently adjustable via handwheel scales to match diverse board sizes and edge materials, realizing one-stop forming without secondary manual repair.

Dual Pre-Milling Unit: Twin alloy milling heads eliminate saw burrs, diagonal cutting marks and wood grain protrusions on raw boards, flattening board edges to enhance glue adhesion and avoid long-term degumming issues.
Constant-Temp Spiral Glue System: Large-capacity anti-carbonization glue pot with spiral stirring roller evenly distributes hot melt glue; independent temperature control prevents glue scorching, delivering bubble-free tight bonding.
Single-Guide End Cutting Station: Linear guide cutter trims redundant edge tape at both front and rear board ends, reducing abrasion of subsequent fine trimming cutters and preventing thin PVC strip cracking.
High-Speed Fine Trimming Group: Tilt adjustable high-frequency motors with wear-resistant alloy saw blades polish upper and lower edge surfaces to smooth, burr-free finish.
Flat Scraping Module: Precision scraper removes residual glue lines and tiny ripples left by trimming, smoothing uneven transition zones between panels and edge bands.
Double Buffing Polishing Wheels: Opposite rotating cotton wheels erase minor scratches and restore edge tape gloss, achieving seamless visual integration between board and edge band.

Technical Specifications

Specification	Value	Specification	Value
Outline dimension	3300×750×1500mm	Conveyor speed	18~24m/min
Machine weight	1000KG	Minimum width of board	50mm
Working voltage	380V/50Hz	Minimum length of board	70mm
Total power	9KW	Working pressure	0.7Mpa
Plate thickness	10-60mm	Edge banding thickness	0.3~3mm

Premium Brand Core Components

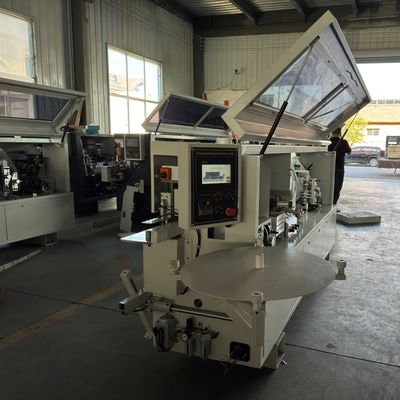

The whole machine runs on Delta PLC + color touch screen, with real-time fault prompt, parameter memory and one-click reset functions, featuring sensitive response and ultra-low failure rate. All key electric, pneumatic and transmission components adopt internationally renowned brands for long-hour stable operation: Delta control system, AirTAC pneumatic cylinders, Schneider air switches, HIWIN linear guide rails, SJZO frequency converters, CC Longchuan conveyor motors, Autonics proximity sensors and SICK encoders. Standard 0.7MPa air pressure system with built-in oil-water separator keeps air circuit clean and unobstructed.

Advantages & Application

With compact layout and reliable branded fittings, the BHM367Y features low maintenance cost and easy operation, friendly for new operators. It is widely applied in small furniture factories, custom woodworking studios and interior decoration workshops focusing on straight edge banding. We provide complete operation manuals, free online video technical support and factory training service for all global buyers.

Ideal Applications

Small to medium furniture manufacturing workshops
Custom cabinetry production facilities
Architectural woodworking shops
Panel processing departments within larger operations
Training facilities for woodworking education

Frequently Asked Questions

Can customized services be supported?

Yes, we can customize color, size, and logo to your specifications.

Where is your factory located?

Our manufacturing facility is in Qingdao City, Shandong Province, China.

Can you make the machine according to my design or prototype?

Yes, our professional designers will create the most suitable production plan for your requirements.

Is this machine easy to operate for first-time users?

We provide instructional videos and English manuals, plus free professional guidance until you achieve proficiency.

What's your MOQ and delivery terms?

Minimum order quantity is 1 set. We ship directly to your designated port - please provide your port name for accurate shipping rates.

How is your after-sales service?

Our sales team is available 24/7, with optional overseas installation service.

What if my machine needs repair?

We provide free online training. For warranty-covered major issues, we will repair the machine.

Shipping Information

Orders ship within 2 to 3 weeks after confirmation. Delivery time varies by location. Tracking information is provided upon dispatch. All products are securely packed to ensure safe arrival.

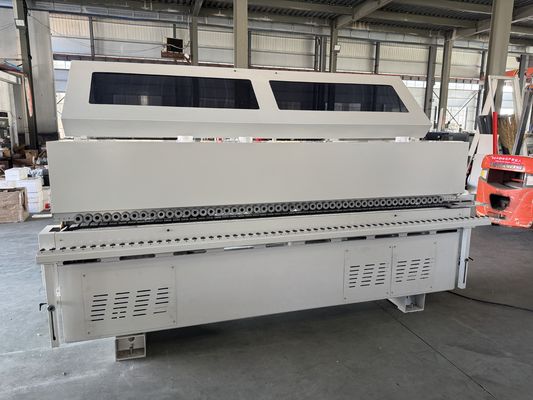

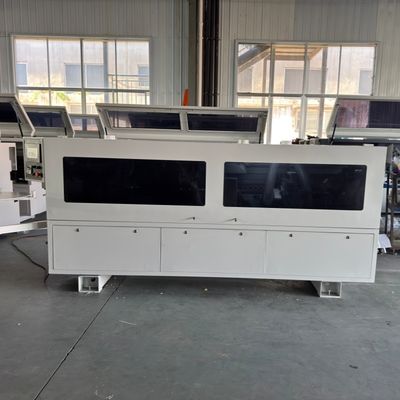

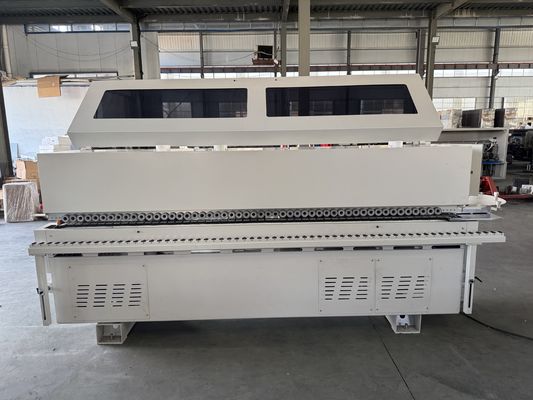

Product Images
