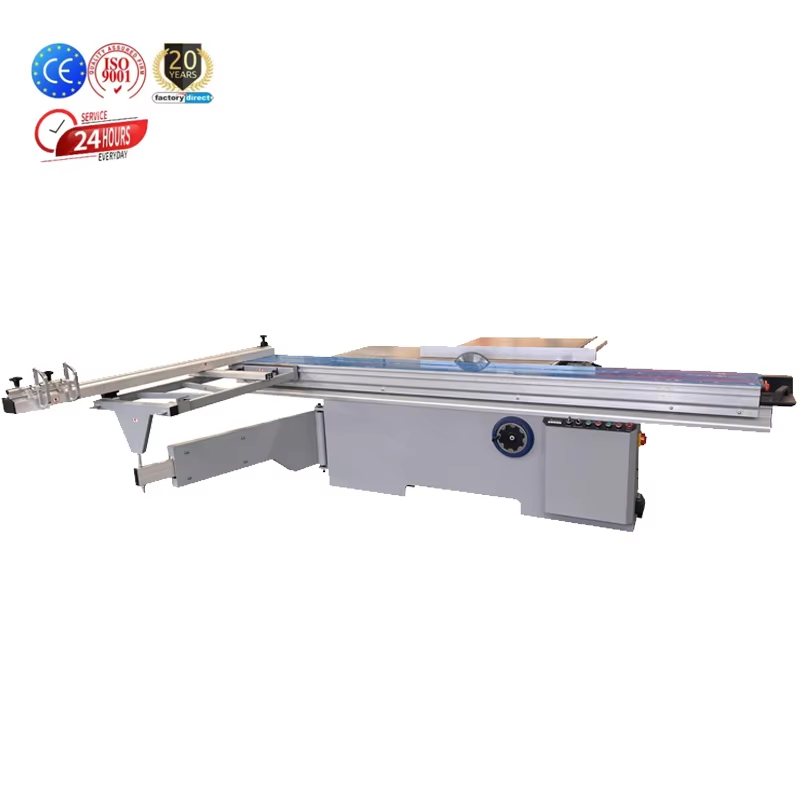

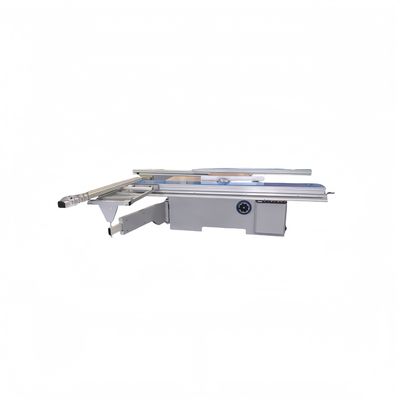

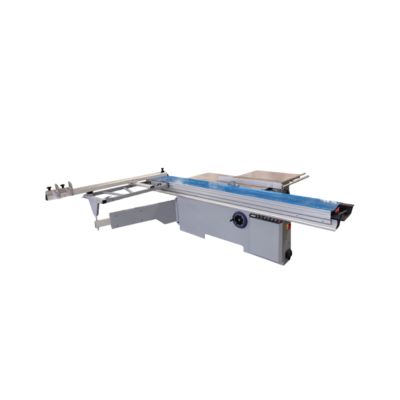

Woodworking Sliding Table Panel Saw Machine Electric Lift 380V / 220V

Woodworking Sliding Table Panel Saw Machine Electric Lift 380V / 220V

Brand Name: BH
Model Number: BHM-45S
MOQ: 1
Price: 1650USD
Payment Terms: T/T
Supply Ability: 3000sets/year
Detail Information
Place of Origin:
Qingdao,China
Certification:
CE
Document:
Size:
3200*375*1100mm
Voltage:
380/220v
Weight:
750kg
Motor Power:
5.5*1.1KW
Lifting Method:
Electric
Core Component:
Motor
Packaging Details:
wooden box
Highlight:

Woodworking Sliding Table Panel Saw Machine

,

Sliding Table Panel Saw Machine 380V

,

Woodworking Panel Saw Machine 220V

Product Description
Woodworking Sliding Table Panel Saw Machine Electric Lift
Product Overview

To ensure operational safety, sliding panel saw is equipped with infrared anti-collision sensing, emergency brake button, and fully enclosed protective cover, which can monitor abnormal actions in real time and automatically stop the machine. The ergonomic design of the operating handle and low center of gravity structure further reduces fatigue and ensures the safety of long-term operations.

Key Features
  • The electric lifting system can accurately adjust the height of the saw blade. It is simple and convenient to operate and does not require manual adjustment, which reduces operating errors and ensures cutting accuracy.
  • Compared with the traditional manual lifting table saw, the electric lifting table saw can complete the lifting and adjustment of the saw blade in a short time, which improves the working efficiency and is particularly suitable for mass production and complex cutting tasks.
  • The electric lifting system is adjusted by CNC to ensure the lifting accuracy of the saw blade, with an error usually within ±0.1mm, making it suitable for processes requiring high-precision cutting
Technical Specifications
Table Type European standard thickened slide table
Slide Table Size 3200 x 375mm
Motor Power 5.5×1.1kw
Voltage 380/220v
Digital display yes
Weight 750kg
Product Advantages
  • Precise adjustment and high cutting accuracy
  • Improve production efficiency and rapid lifting

Product Application

  • The woodworking sliding table saw can not only cut wood, but also process some composite materials (such as plastic wood, PVC board, gypsum board, etc.), which is suitable for a wider range of construction and decoration needs
  • Used in the production of solid wood flooring, laminate flooring and other wood flooring products, the sliding table saw can efficiently cut floors of different thicknesses and materials and ensure the dimensional consistency of the products.
Woodworking Sliding Table Panel Saw Machine Electric Lift 380V / 220V 0
Standard thickened push table
Slide table size: 3200 * 375mm

Woodworking Sliding Table Panel Saw Machine Electric Lift 380V / 220V 1
5.5 * 1.1kw high power
The motor is installed above the frame
Woodworking Sliding Table Panel Saw Machine Electric Lift 380V / 220V 2
Accurate display from 0-90 °
Woodworking Sliding Table Panel Saw Machine Electric Lift 380V / 220V 3
Main saw rapid lifting and lowering
Frequently Asked Questions


Q1: Can you provide customized services?
A1: Yes, we can customize the color, size, and logo you require.



Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao, Shandong Province.



Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have a professional designer who can design the most suitable design and production plan for the machine you are ordering from us.



Q4: This is my first time using this machine. Is it easy to operate?
A4: An instructional video showing how to use the machine and an English instruction manual are sent with the machine. If you still have any questions, we will provide you with free professional guidance until you can use the machine well.



Q5: What is your minimum order quantity and delivery?
A5: Our minimum order quantity is 1 machine. We can ship the machine directly to your country's port. Please let us know your port name. We will provide you with the best shipping and machine price.



Q6: How is your after-sales service?
A6: Our sales staff are online 24 hours a day. We can also provide overseas installation services.



Q7: If my machine breaks down, can you help me repair it?
A7: Yes. We offer free online training. If your machine has a major problem during the warranty period, we can repair it.
