| Brand Name: | BH |
| Model Number: | BHM-45D |
| MOQ: | 1 |
| Price: | 1300-1700USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

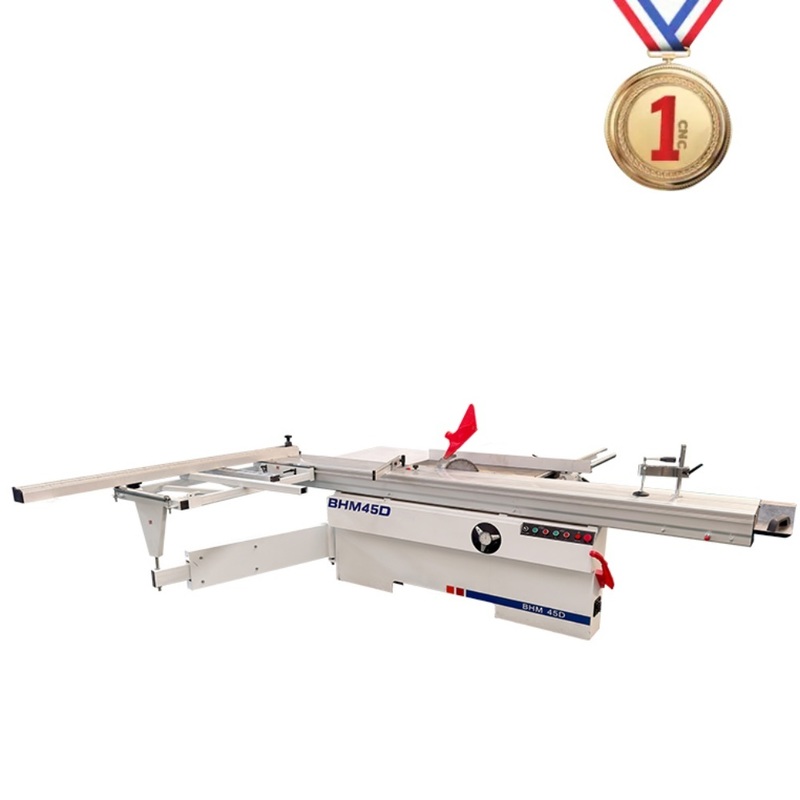

The table saw is a high-performance sliding panel saw designed for precise cutting of various sheet materials. It features a working length of 3200 mm and supports cutting angles from 0° to 45°, with a maximum cutting thickness of 70 mm. Equipped with a powerful 5.5 kW main motor and a 0.75 kW scoring motor, the main saw blade operates at 4000–6000 RPM, while the scoring blade runs at 7000–8000 RPM, ensuring smooth and chip-free cuts. The machine utilizes a Delixi electrical system and boasts a robust structure, making it suitable for medium to high-intensity woodworking environments.
| Specification | Value |
|---|---|
| Push table length | 3200 mm |
| Push table width | 375 mm |
| Motor power | 5.5 *0.75KW |
| Sawshaft speed | 4000-6000RMP |
| Speed of Scoring saw blade | 7000-8000RMP |
High Stability: Features a European-standard thickened sliding table (3200 × 375 mm) for smooth and stable material feeding.

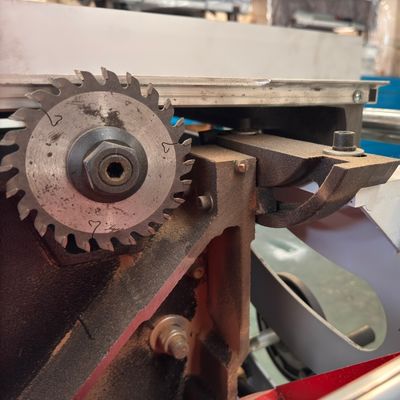

Powerful Performance: Dual motor system with 5.5 kW main motor and 0.75 kW scoring motor for efficient and clean cutting.
Precision Positioning: Includes a finely adjustable rip fence and a heavy-duty crosscut fence with two flip stops, usable up to 2000 mm, supporting 45° cross-cutting.
Dust Extraction System: Integrated 150 mm vacuum port at the bottom and a saw blade dust hood that follows the shaft, effectively collecting dust.
Robust Construction: Made with an integrated bent frame, 4 mm front panel, 5 mm rear panel, and 6 mm top plate. The machine weighs 650 kg, ensuring durability and vibration reduction.
Ease of Use: Equipped with a pressure feeder to assist with large panel and 45° angle cutting, improving operational efficiency.
The Table Saw is widely used in:
Furniture manufacturing for panel sizing and cutting
Batch production of custom cabinets, wardrobes, and other furniture
Door, window, and decorative trim processing, including bevel cuts
Precision cutting of engineered wood panels such as particleboard, MDF, and plywood
Ideal for woodworking shops, building material processing workshops, and custom furniture production lines
