| Brand Name: | BH |
| Model Number: | BHM-45D |
| MOQ: | 1 |
| Price: | 1300-1700USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

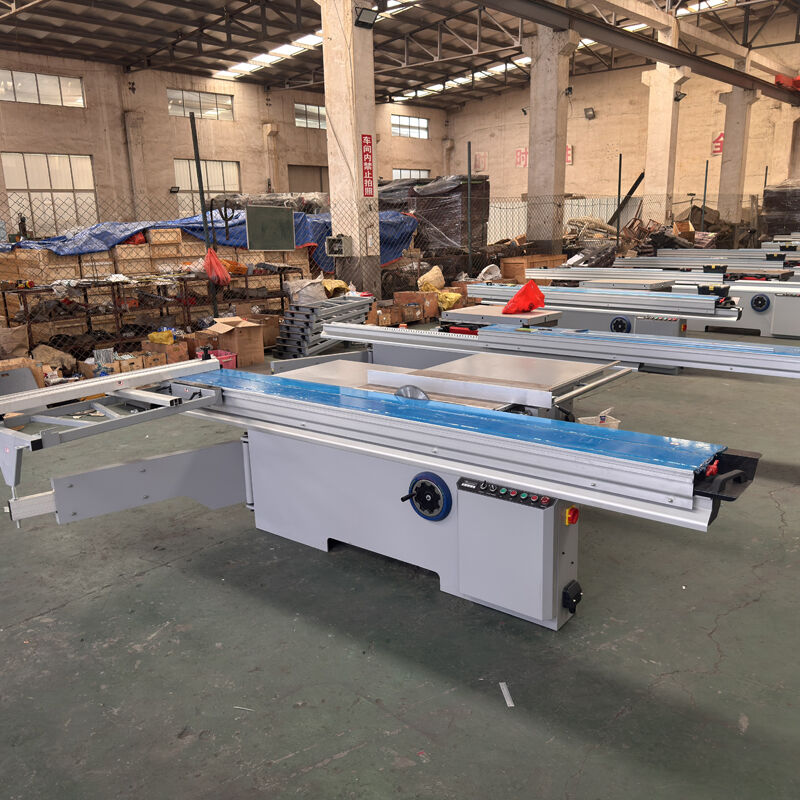

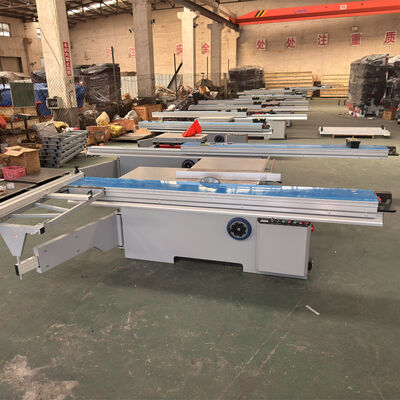

The BHM-45S Sliding Panel Saw is a high-performance, precision cutting solution designed for stable and efficient woodworking operations. Engineered for professional workshops and industrial applications, it combines robust construction with advanced features to deliver accurate cuts up to 45 degrees, handling large panels with ease.The BHM-45S Sliding Panel Saw by Baihang Machinery is a high-performance, precision cutting solution designed for stable and efficient woodworking operations. Engineered for professional workshops and industrial applications. The machine utilizes a Delixi electrical system and boasts a robust structure, making it suitable for medium to high-intensity woodworking environments.
| Specification | Value |
|---|---|
| Push table length | 3200 mm |
| Push table width | 375 mm |
| Motor power | 5.5 *1.1KW |
| Sawshaft speed | 4000-6000RMP |
| Speed of Scoring saw blade | 7000-8000RMP |
Cutting Capacity: Maximum cutting length of 3100 mm and thickness of 70 mm, with a versatile cutting angle range of 0–45°.

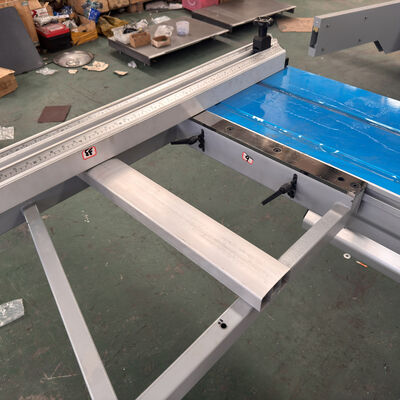

Worktable: Features a large sliding table (3200 × 375 mm) with a reinforced push table for smooth and stable material handling.
Motor System: Powered by a high-performance 5.5 kW main motor and a 1.1 kW scoring motor, ensuring clean, chip-free cuts. Both motors are mounted above the frame for improved durability and maintenance access.
Saw Blades: Equipped with a 300 mm main saw blade and a 120 mm scoring blade, running at 4000–6000 RPM and 7000–8000 RPM respectively for precise scoring and cutting.

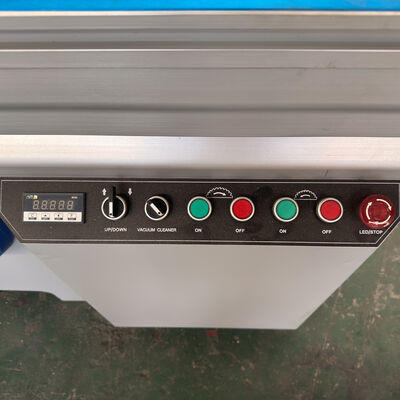

Digital Control: Integrated digital display for accurate angle setting (0–90°) and electric lifting for quick and easy saw blade adjustment.
Enhanced Usability & Design
Rip Fence & Crosscut Fence: Includes a finely adjustable rip fence with a 1500 mm solid chrome-plated guide rail and a heavy-duty crosscut fence (1850 mm) with two flip stops, suitable for angled cuts.
Sturdy Construction: Built with an integrated bent frame, 16 mm top plate, and 6 mm front/rear panels for vibration-free operation and long-term reliability.
Vacuum System: Features a bottom 150 mm dust port and a movable saw blade hood connected to a vacuum cleaner, maintaining a clean working environment.
Additional Accessories: Includes a pressure feeder for assisting with large panel and 45° horizontal cutting, along with full-size workbenches and ergonomic adjustment handles.
The Table Saw is widely used in:
Furniture manufacturing for panel sizing and cutting
Batch production of custom cabinets, wardrobes, and other furniture
Door, window, and decorative trim processing, including bevel cuts
Precision cutting of engineered wood panels such as particleboard, MDF, and plywood
Ideal for woodworking shops, building material processing workshops, and custom furniture production lines
