| Brand Name: | BH |
| Model Number: | BHM-45M |
| MOQ: | 1 |
| Price: | 1600USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |
Furniture Factory Precision Cutting Penal Saw Machine Manual Sliding Table Panel Saw With Digital Display

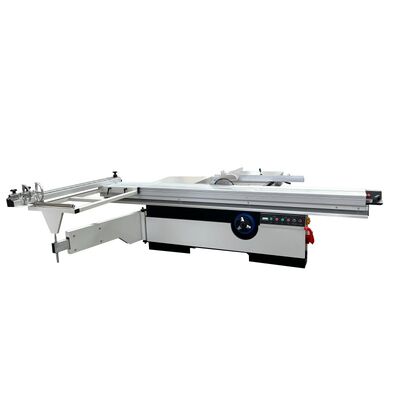

Product Overview-The BHM-45M
This equipment is equipped with an intelligent touch screen and a digital setting system. Users only need one click to input parameters such as cutting dimensions and angles, and the system will automatically adjust the height and position of the saw blade, significantly reducing preparation time. Combined with the fast sliding function, the continuous operation efficiency is increased by 40%, making it particularly suitable for mass production scenarios such as cabinet processing and custom furniture assembly lines.
Sliding Table: European standard thickened sliding table with dimensions of 3200 * 375 mm and a locking device Motor Structure: 5.5×1.1 kW high-power motor mounted on top of the frame Cross-cut Fence: Heavy-duty cross-cut fence with a usable length of 1800 mm and 2 hooks

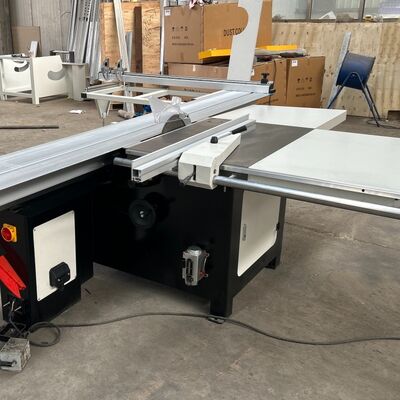

High-Precision Sliding Table
The machine features a European-standard thickened sliding table measuring 3200 × 375 mm, equipped with a reliable locking device for enhanced stability during operation.
Powerful Motor Configuration
With a 5.5 kW main motor and a 1.1 kW scoring motor mounted above the frame, the BHM-45M delivers consistent power for smooth and efficient cutting.
Advanced Cutting System
The main saw blade operates at 4000–6000 RPM, while the scoring blade runs at 7000–8000 RPM, ensuring clean, splinter-free edges on both sides of the workpiece.

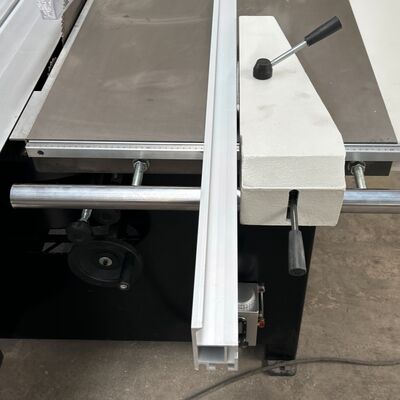

Precision Fencing System
Rip fence with fine-tuning capability, supported by a solid chrome-plated shaft (45 mm diameter, 1500 mm length).
Heavy-duty crosscut fence usable at 45°, featuring two flip-stops and a usable length of 1800 mm for accurate repeat cuts.
Product Application
Ideal for furniture making, cabinetry, and panel processing, the BHM-45M combines power, precision, and reliability in a robust industrial design.
Q1: Can you provide customized services?
A1: Yes, we can customize the color, size, and logo you require.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have a professional designer who can design the most suitable design and production plan for the machine you are ordering from us.
Q4: This is my first time using this machine. Is it easy to operate?
A4: An instructional video showing how to use the machine and an English instruction manual are sent with the machine. If you still have any questions, we will provide you with free professional guidance until you can use the machine well.
Q5: What is your minimum order quantity and delivery?
A5: Our minimum order quantity is 1 machine. We can ship the machine directly to your country's port. Please let us know your port name. We will provide you with the best shipping and machine price.
Q6: How is your after-sales service?
A6: Our sales staff are online 24 hours a day. We can also provide overseas installation services.
Q7: If my machine breaks down, can you help me repair it?
A7: Yes. We offer free online training. If your machine has a major problem during the warranty period, we can repair it.
