| Brand Name: | BH |
| Model Number: | BHM-45M |
| MOQ: | 1 |
| Price: | 1600USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

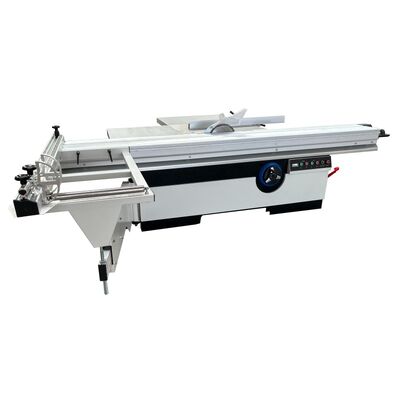

Sliding Table Saw Wood Cutter Machinery Precision Woodworking Panel Saw Fully Automatic For Furniture
Product Overview-The BHM-45M
This device comes with an intelligent touchscreen interface and a digital parameter setting system. With a single tap, users can input required cutting parameters including dimensions and angles; the equipment will then automatically adjust the vertical height and horizontal position of the saw blade, thus greatly minimizing setup time. When integrated with the rapid sliding function, the efficiency of continuous operation is improved by 40%, which makes the device well-suited for large-batch production applications such as cabinet processing workshops and custom furniture production lines.
High-Precision Sliding Table
The machine features a European-standard thickened sliding table measuring 3200 × 375 mm, equipped with a reliable locking device for enhanced stability during operation.
Powerful Motor Configuration
With a 5.5 kW main motor and a 1.1 kW scoring motor mounted above the frame, the BHM-45M delivers consistent power for smooth and efficient cutting.
Advanced Cutting System
The main saw blade operates at 4000–6000 RPM, while the scoring blade runs at 7000–8000 RPM, ensuring clean, splinter-free edges on both sides of the workpiece.

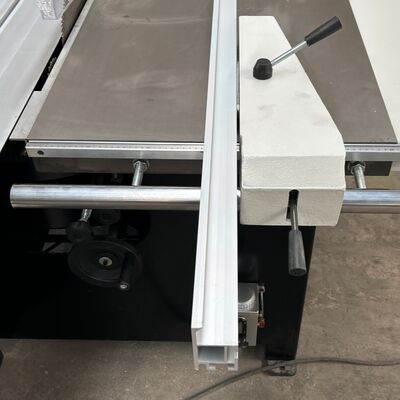

Precision Fencing System
Rip fence with fine-tuning capability, supported by a solid chrome-plated shaft (45 mm diameter, 1500 mm length).

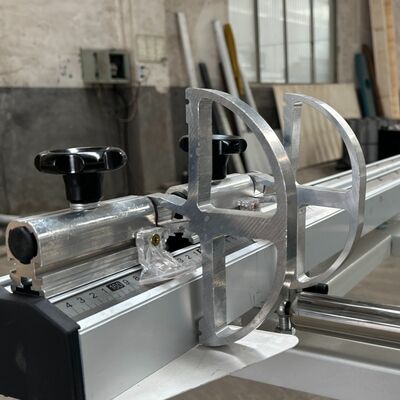

Heavy-duty crosscut fence usable at 45°, featuring two flip-stops and a usable length of 1800 mm for accurate repeat cuts.
Product Application
Transportation and Safety
Ensuring the transportation safety of sliding table saws is critical to protecting the equipment from damage and preventing potential hazards during transit.
Prior to shipping, the saw must be thoroughly prepared:
first, disconnect all power sources and remove detachable components such as saw blades, fences, and auxiliary tools. These fragile and high-precision parts should be individually wrapped in shock-absorbing materials (e.g., EPE foam, bubble wrap) and placed in dedicated packaging boxes to avoid scratches or deformation. The main body of the saw must be securely fastened to a sturdy wooden pallet using high-strength bolts and steel straps—ensure the pallet meets international shipping standards (e.g., ISPM 15 for wood packaging) to prevent breakage during handling.
Additionally, the entire unit should be covered with a waterproof and dustproof PE film to shield against moisture, dust, and corrosion, especially for long-distance sea or air transport. During loading and unloading, only use professional equipment such as forklifts or cranes with appropriate load-bearing capacity; avoid direct contact between the forklift tines and the saw’s body or sliding table to prevent dents. The transportation vehicle must be clean, dry, and free of sharp objects that could puncture the packaging. Secure the palletized saw with additional ropes or ratchet straps to minimize movement, vibration, or tilting during transit—ensure the device remains in an upright position at all times, as tilting or flipping may damage internal mechanical structures, electrical components, or the precision sliding mechanism.
Upon arrival, inspect the packaging for signs of damage (e.g., tears, dents, water stains) before unloading.
If any damage is detected, document it with photos and notify the shipping company immediately. When unpacking, use proper tools to avoid damaging the equipment, and check all components against the packing list to ensure completeness. Following these guidelines will effectively safeguard the sliding table saw’s performance and structural integrity, ensuring it arrives at the destination in optimal working condition.
Ideal for furniture making, cabinetry, and panel processing, the BHM-45M combines power, precision, and reliability in a robust industrial design.
