Penal Saw 45 Degree CNC Cutting Saw For Woodworking Precision Sliding Table Saw For Mdf Wood Board Cutting

Name: Penal Saw 45 Degree CNC Cutting Saw For Woodworking Precision Sliding Table Saw For Mdf Wood Board Cutting
Brand: Qingdao Baihang Industry and Trade Co., Ltd
SKU: BHM-45M
Price: 1600 USD
Availability: InStock

Brand Name:	BH
Model Number:	BHM-45M
MOQ:	1
Price:	1600USD
Payment Terms:	T/T
Supply Ability:	3000sets/year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao，China

Certification:

Size:

3200*375*1100mm

Voltage:

380/220v

Weight:

700kg

Motor Power:

5.5*1.1KW

Digital Display:

With

Max Cutting Tangth:

3100MM

Max Cutting Thickness:

70MM

Packaging Details:

Wooden box

Highlight:

45 degree CNC cutting saw

precision sliding table saw

MDF wood board saw

Product Description

Penal Saw 45 Degree CNC Cutting Saw For Woodworking Precision Sliding Table Saw For Mdf Wood Board Cutting

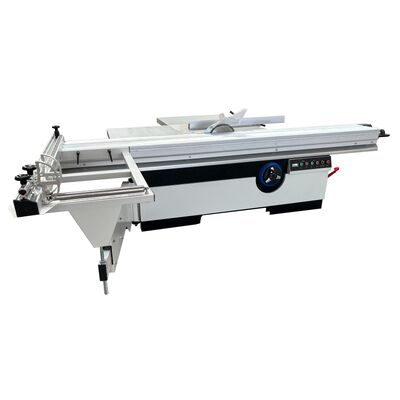

Product Overview-The BHM-45M

Featuring an intelligent touch screen and digital setting system, this machine allows users to input cutting parameters (dimensions, angles, etc.) with a single click. The saw blade’s height and position are adjusted automatically, cutting down preparation time substantially. Paired with the fast sliding function, it boosts continuous operation efficiency by 40%, ideal for high-volume production like cabinet manufacturing and custom furniture production lines.

Sliding Table: European standard heavy-gauge sliding table (3200 * 375 mm) with locking mechanism

Motor Structure: 5.5×1.1 kW high-power motor installed above the machine frame

Cross-cut Fence: Heavy-duty cross-cut fence (1800 mm usable length) with 2 hooks

Key Features

High-Precision Sliding Table
The machine features a European-standard thickened sliding table measuring 3200 × 375 mm, equipped with a reliable locking device for enhanced stability during operation.
Powerful Motor Configuration
With a 5.5 kW main motor and a 1.1 kW scoring motor mounted above the frame, the BHM-45M delivers consistent power for smooth and efficient cutting.
Advanced Cutting System
The main saw blade operates at 4000–6000 RPM, while the scoring blade runs at 7000–8000 RPM, ensuring clean, splinter-free edges on both sides of the workpiece.
Precision Fencing System
- Rip fence with fine-tuning capability, supported by a solid chrome-plated shaft (45 mm diameter, 1500 mm length).
- Heavy-duty crosscut fence usable at 45°, featuring two flip-stops and a usable length of 1800 mm for accurate repeat cuts.

Technical Specifications

Push table length	3200 mm
Push table width	375mm
Main motor power	5.5KW
Sconing motor power	1.1KW
Main saw blade diameter	300mm(250-350mm)
Scoring saw diameter	120mm
Main spindie diameter	30mm
Scoring spindie diameter	20mm
Sawshaft speed	4000-6000RMP
Speed of Scoring saw blade	7000-8000RMP
Max Cutting tangth	3100MM
Max Cutting thickness	70MM
Angle of Saw blade	650KG
weight	0-45°
Electric lifting	NO
Digital display	With

Product Advantages

Precise adjustment and high cutting accuracy
Improve production efficiency and rapid lifting

Product Application

The woodworking sliding table saw can not only cut wood, but also process some composite materials (such as plastic wood, PVC board, gypsum board, etc.), which is suitable for a wider range of construction and decoration needs
Used in the production of solid wood flooring, laminate flooring and other wood flooring products, the sliding table saw can efficiently cut floors of different thicknesses and materials and ensure the dimensional consistency of the products.

Transportation and Safety

Transporting sliding table saws requires strict adherence to safety protocols to avoid equipment failure and ensure smooth delivery. Start with professional packaging: the base of the saw should be fixed to a reinforced wooden pallet using anti-slip pads and locking bolts to distribute weight evenly and prevent shifting. All moving parts, including the sliding table, cross-cut fence, and mechanism, must be locked in place using manufacturer-provided locking pins or custom fixtures. High-precision components like the saw blade and digital control panel should be wrapped in shockproof materials and separated from the main body to prevent impact damage.

For long-distance or international shipping, choose packaging materials that meet export standards—moisture-proof agents should be placed inside the packaging to absorb humidity, and the outer layer should be reinforced with corrugated cardboard or wooden crates for extra protection. During loading, ensure the saw is positioned in the center of the transport vehicle, away from the edges, and secured with multiple straps across the pallet to resist sudden stops or turns. Avoid stacking heavy items on top of the saw, as this may cause permanent damage to the sliding table or internal gears.

It is essential to inform the shipping team about the equipment’s fragility and special handling requirements (e.g., "Do Not Tilt," "Handle With Care," "Keep Upright")—mark these warnings clearly on the packaging with high-visibility labels. During transit, monitor the transport conditions (e.g., temperature, humidity) if possible, especially for shipments containing electronic components sensitive to extreme environments. Upon delivery, unload the saw using a forklift with a wide, stable base, and lift it only from the designated lifting points to avoid straining the frame. Conduct a thorough inspection of the equipment’s exterior, sliding table smoothness, and electrical connections before installation. By following these practical steps, you can significantly reduce the risk of damage and ensure the sliding table saw remains safe and functional throughout the transportation process.

Ideal for furniture making, cabinetry, and panel processing, the BHM-45M combines power, precision, and reliability in a robust industrial design.

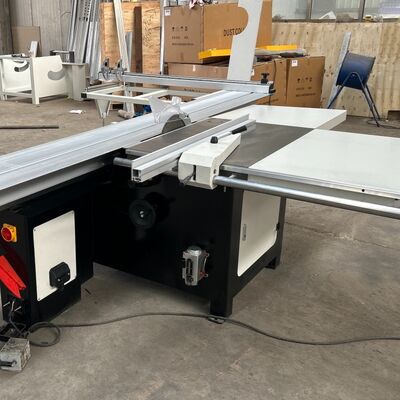

Push Table Saw

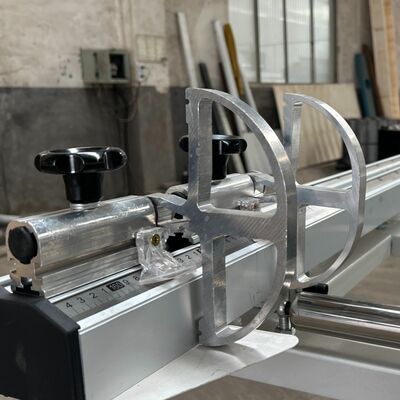

Accurate display from 0-90 °

Main saw rapid lifting and lowering
