| Brand Name: | BH |
| Model Number: | BHM-45M |
| MOQ: | 1 |
| Price: | 1600USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |
Factory Precision Cutting Penal Saw Machine Manual Sliding Table Panel Saw With Digital Display
Product Overview-The BHM-45M

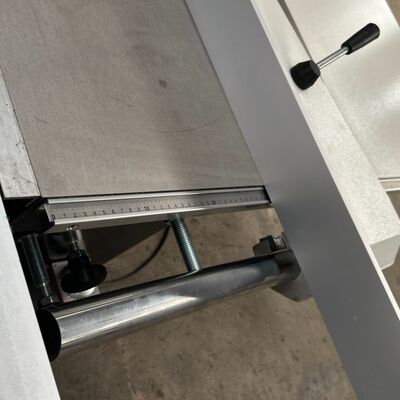

High-Precision Sliding Table
The machine features a European-standard thickened sliding table measuring 3200 × 375 mm, equipped with a reliable locking device for enhanced stability during operation.
Powerful Motor Configuration
With a 5.5 kW main motor and a 1.1 kW scoring motor mounted above the frame, the BHM-45M delivers consistent power for smooth and efficient cutting.
Advanced Cutting System
The main saw blade operates at 4000–6000 RPM, while the scoring blade runs at 7000–8000 RPM, ensuring clean, splinter-free edges on both sides of the workpiece.

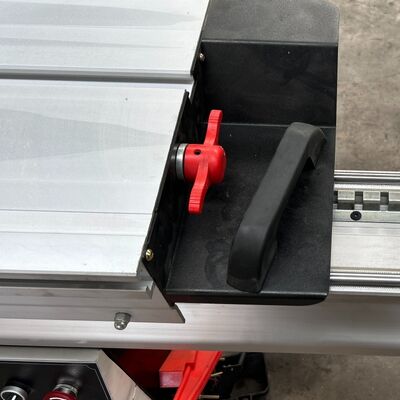

Precision Fencing System
Rip fence with fine-tuning capability, supported by a solid chrome-plated shaft (45 mm diameter, 1500 mm length).
Heavy-duty crosscut fence usable at 45°, featuring two flip-stops and a usable length of 1800 mm for accurate repeat cuts.
Product Application
Transportation and Safety
The transportation safety of sliding table saws is not only a matter of equipment protection but also compliance with international shipping regulations and risk mitigation. To meet global safety standards, all packaging materials must be non-toxic, moisture-resistant, and capable of withstanding heavy loads and mechanical stress. The wooden pallet must be heat-treated and marked with the ISPM 15 stamp to comply with phytosanitary requirements for international trade, avoiding delays or rejections at customs.
Before shipping, conduct a comprehensive safety check: verify that all electrical components are properly insulated and sealed to prevent short circuits caused by moisture; ensure the saw blade is removed and stored in a protective case with a warning label (e.g., "Sharp Blade - Handle With Care"); and secure the sliding table with steel cables or adjustable clamps to eliminate lateral movement. For sea freight, additional waterproofing measures (e.g., vacuum packaging, marine-grade plastic covers) are recommended to protect against saltwater corrosion and humidity.
During transport, the sliding table saw must be transported in an upright position—never lay it on its side or upside down, as this can damage the precision alignment of the sliding mechanism, motor, and gearbox. The transportation vehicle should be equipped with shock-absorbing suspension systems to minimize vibration, and the driver should be trained to avoid sudden accelerations, decelerations, or sharp turns. It is also mandatory to obtain appropriate cargo insurance covering damage caused by accidents, natural disasters, or improper handling, ensuring financial protection for both the seller and the buyer.
Upon arrival at the destination, a joint inspection should be conducted by the recipient and the shipping agent. Any damage or discrepancies must be documented in writing with photographic evidence, and a claim should be filed promptly with the shipping company if necessary. By adhering to these compliance-focused safety measures, you can ensure the transportation process is efficient, legally compliant, and free from avoidable risks, protecting your business reputation and customer satisfaction.
Ideal for furniture making, cabinetry, and panel processing, the BHM-45M combines power, precision, and reliability in a robust industrial design.
