| Brand Name: | BH |
| Model Number: | BHM-45D |
| MOQ: | 1 |
| Price: | 1300-1700USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

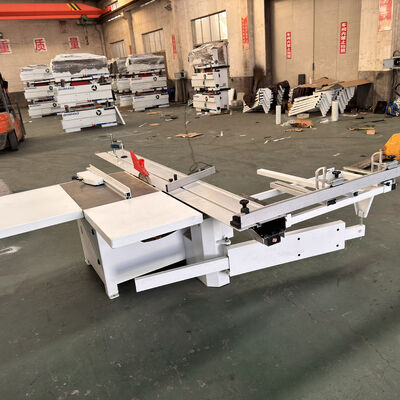

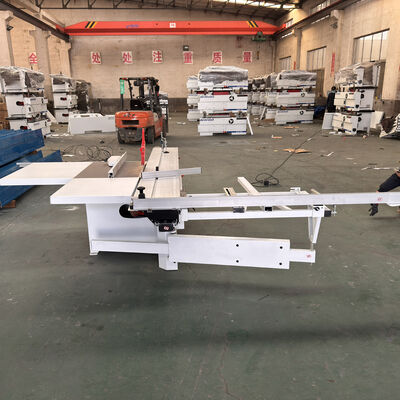

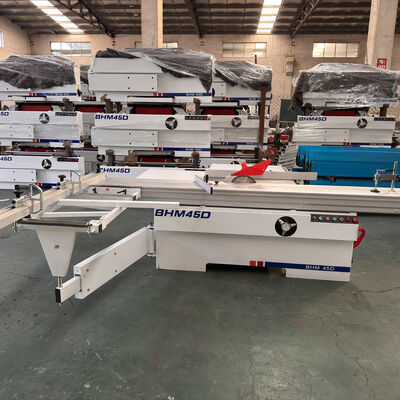

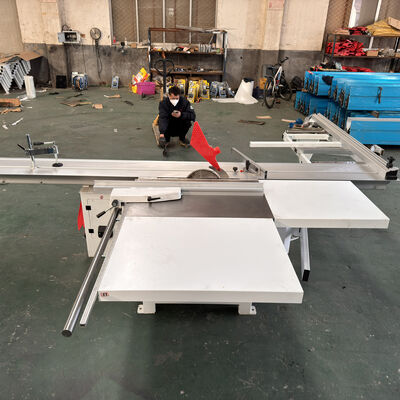

The BHM-45D Sliding Panel Saw from Baihang Machinery is engineered for stable, high-precision cutting in demanding workshop environments. With a working length of 3200mm and the ability to cut angles from 0° to 45°, it handles a wide range of panel sizing, trimming, and bevelling tasks with ease and accuracy.
| Specification | Value |
|---|---|
| Push table length | 3200 mm |
| Push table width | 375 mm |
| Motor power | 5.5 *0.75KW |
| Sawshaft speed | 4000-6000RMP |
| Speed of Scoring saw blade | 7000-8000RMP |
Key Specifications
Max Cutting Length: 3100mm
Max Cutting Thickness: 70mm
Main Motor Power: 5.5 KW
Scoring Motor Power: 0.75 KW
Main Saw Blade Diameter: 300mm (range 250–350mm)
Scoring Saw Diameter: 120mm
Saw Shaft Speed: 4000–6000 RPM
Scoring Saw Speed: 7000–8000 RPM
Machine Weight: 650 kg
Designed for Performance & Durability
Robust Sliding Table System
The BHM-45D features a thickened sliding push table measuring 3200mm × 375mm, ensuring smooth and stable movement for precise long cuts and large panel handling.
High-Power Motor Configuration
Equipped with a 5.5 KW main motor and a 0.75 KW scoring motor—both mounted above the frame—this saw delivers reliable power for clean, tear-free cuts on laminated panels and solid wood.
Precision Fencing & Guiding
Fine-Tune Rip Fence: Allows accurate parallel cutting with easy adjustment.
Heavy-Duty Crosscut Fence: Features two flip stops and a usable length of 1850mm. It can be used at 45° and slides smoothly for repeated crosscuts.
Rip Fence Axis: Includes a solid chrome-plated shaft with a usage length of 1500mm for enhanced durability and smooth operation.
Built to Last
The machine framework is constructed with a 4mm front panel, 5mm rear panel, and 6mm top plate, all integrated through bending for exceptional rigidity and vibration resistance.
Enhanced Usability & Clean Operation
Full-Size Workbench: Provides ample support for large panels.
Pressure Feeder: Assists with large board and 45° horizontal cutting for safer, more controlled operation.
Vacuum Cleaning System: Includes a 150mm bottom vacuum interface, saw blade vacuum cleaner, and a hood that follows the saw shaft to maintain a clean working environment.
Reliable Electrical System
Fitted with Delixi brand electrical components for consistent performance and easy maintenance.
The Table Saw is widely used in:
Furniture manufacturing for panel sizing and cutting
Batch production of custom cabinets, wardrobes, and other furniture
Door, window, and decorative trim processing, including bevel cuts
Precision cutting of engineered wood panels such as particleboard, MDF, and plywood
Ideal for woodworking shops, building material processing workshops, and custom furniture production lines
