Compact Edge Bander With Double Trimming Edge Banding Machine

Brand Name:	BH
Model Number:	468F
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Outline Dimension:

5000*850*1500mm

Machine Weight:

1600kg

Working Voltage:

380V/50Hz

Total Power:

9kw

Plate Thickness:

10~60mm

Working Pressure:

0.8MPa

Outline Dimension:

5000*850*1500mm

Machine Weight:

1600kg

Working Voltage:

380V/50Hz

Total Power:

9kw

Plate Thickness:

10~60mm

Working Pressure:

0.8MPa

Outline Dimension:

5000*850*1500mm

Machine Weight:

1600kg

Working Voltage:

380V/50Hz

Total Power:

9kw

Plate Thickness:

10~60mm

Working Pressure:

0.8MPa

Packaging Details:

5100*950*1600mm

Highlight:

compact edge bander machine

double trimming edge banding machine

automatic edge bander with warranty

Product Description

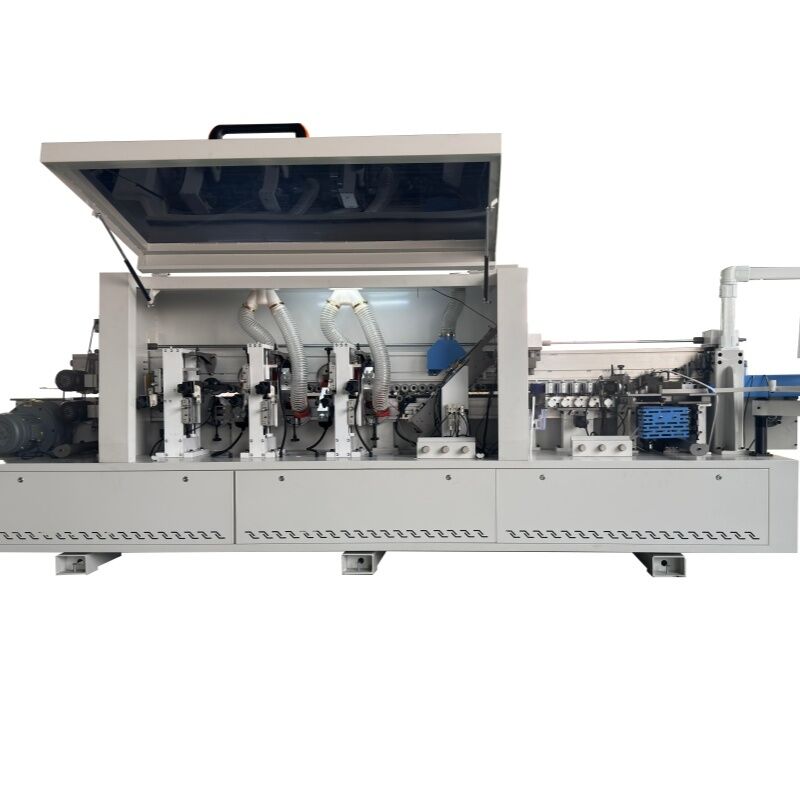

Compact Edge Bander With Double Trimming Edge Banding Machine

Product Features of Edge Banding Machine

This fully automatic edge banding machine is built for high-precision woodworking, integrating a complete sequence of processing stations into a single, streamlined unit. Its heavy-duty, welded steel frame ensures exceptional stability, minimizing vibration even at maximum operating speeds of 28 meters per minute. The machine accommodates panel thicknesses from 8mm to 60mm, with a maximum panel width of 1200mm, making it suitable for both small-batch custom work and large-scale production.

A standout feature is its intelligent glue application system, which uses a precision roller to apply EVA or PUR adhesive with a coating thickness adjustable from 0.1mm to 0.35mm. The glue pot maintains a constant temperature of 160–200℃ via PID control, ensuring consistent bonding strength across all panel types. The machine’s servo-driven feeding system, paired with pneumatic pressure rollers, achieves ±0.03mm positioning accuracy, guaranteeing uniform edge alignment.

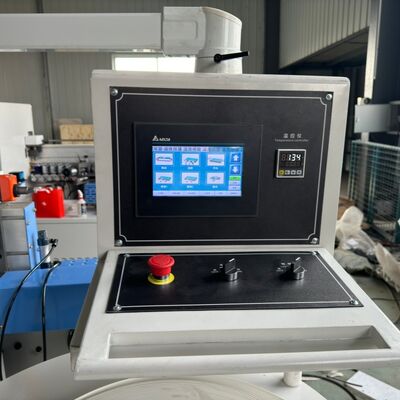

The machine also features a modular dust extraction system with dedicated ports at the pre-milling, trimming, and scraping stations, capturing over 98% of wood dust and debris to maintain a clean workspace. Transparent, pneumatically operated safety covers provide quick access for maintenance while adhering to international safety standards. Its 7-inch touch-screen HMI stores up to 50 processing recipes, allowing operators to switch between edge band materials (PVC, ABS, veneer, solid wood) in seconds, reducing changeover time by up to 45%.

Parameter

Outline dimension	50008501500mm	Conveyor speed	18~24m/min
Machine weight	1600kg	Minimum width of board	50mm
Working voltage	380V/50Hz	Minimum length of board	70mm
Total power	9kw	Working pressure	0.8MPa
Plate thickness	10~60mm	Edge banding thickness	0.3~3mm

Advantages

Compared to semi-automatic models, this edge banding machine delivers a 35% increase in throughput through continuous, unmanned operation, making it ideal for high-volume furniture manufacturers. Its multi-station design eliminates manual repositioning, cutting labor costs by up to 55% while reducing human error in edge alignment. The adaptive trimming system, equipped with diamond-tipped cutters that self-adjust to panel thickness, produces a seamless finish requiring no post-processing, cutting material waste by 22%.

Energy efficiency is a key benefit: variable-frequency drives and a heat recovery system reduce power consumption by 18% compared to standard machines. Its robust construction, featuring corrosion-resistant aluminum alloy components and sealed bearings, ensures a service life of over 12 years with minimal maintenance. The machine also offers superior flexibility, supporting both straight and curved edge banding with optional attachments, a versatility that single-function machines cannot match.

Functions

This all-in-one machine performs a complete edge banding workflow in one pass:

Gluing & Edge Feeding: A dual-roller applicator applies adhesive evenly, while a servo-driven system feeds edge band material synchronously with the panel to eliminate gaps.
End Cutting: Pneumatically actuated blades trim excess edge band from panel ends with clean, square cuts.
Rough Trimming: Rotating cutters remove bulk excess material from the top and bottom edges.
Fine Trimming: Precision blades achieve a flush finish with ±0.02mm accuracy.
Scraping: A flexible scraping wheel removes glue residue and smooths surface irregularities.
Buffing: A felt roller polishes the finished edge to a satin-like appearance.

The machine also includes an automatic lubrication system that maintains component performance, reducing downtime for manual maintenance.

Applications

This edge banding machine is a cornerstone of modern woodworking production lines, primarily used in manufacturing kitchen cabinets, office furniture, wardrobes, and retail display fixtures. It excels at processing particleboard, MDF, plywood, and solid wood panels, delivering professional edge finishing that enhances product durability and visual appeal.

In the construction sector, it is widely used to produce prefabricated interior wall panels and door components, where clean, durable edges are critical for structural integrity. In custom furniture workshops, its quick-change capabilities enable efficient production of small-batch, personalized orders, while in large-scale factories, it integrates seamlessly with CNC panel saws and conveyor systems to create fully automated production lines. It is also essential for producing educational furniture, such as classroom desks and cabinets, where safety and durability are paramount.

Transportation & Installation

The machine is shipped in a reinforced, seaworthy wooden crate with foam padding to protect precision components during transit. It is divided into 2 modular sections for easier handling, with a total net weight of 1600kg. We offer flexible shipping options, including sea freight, air freight, and land transportation, with FOB and CIF terms available.

Each shipment includes a detailed installation manual, electrical schematic, and a 12-month warranty covering parts and labor. Our technical team provides on-site installation and commissioning services, including calibration of processing stations, operator training, and performance testing. The machine requires a 380V 3-phase power supply and compressed air (0.6–0.8MPa) for operation. We also offer optional spare parts kits and annual maintenance contracts to ensure long-term reliability.
