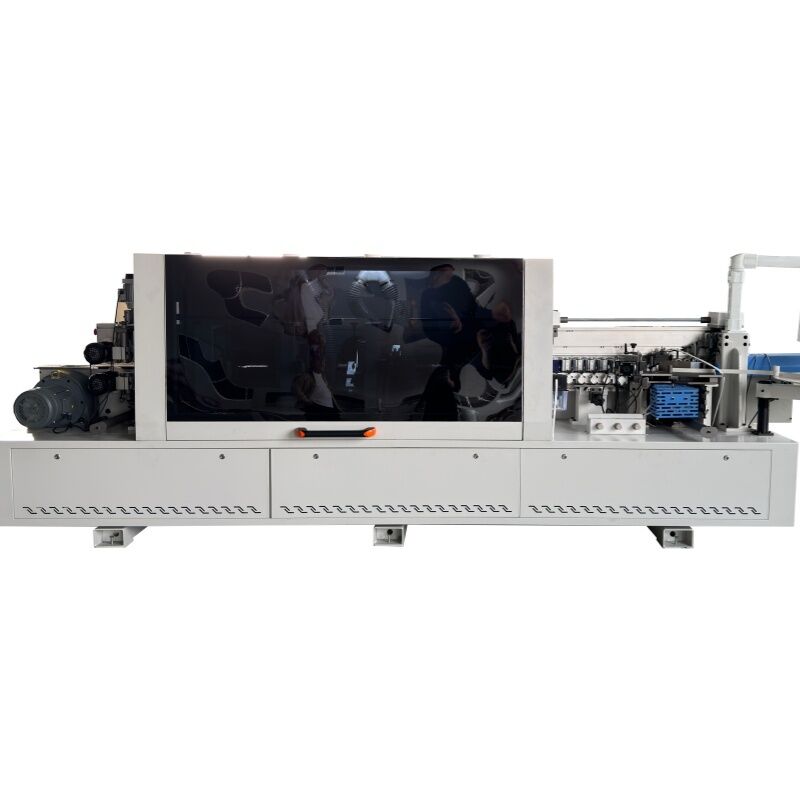

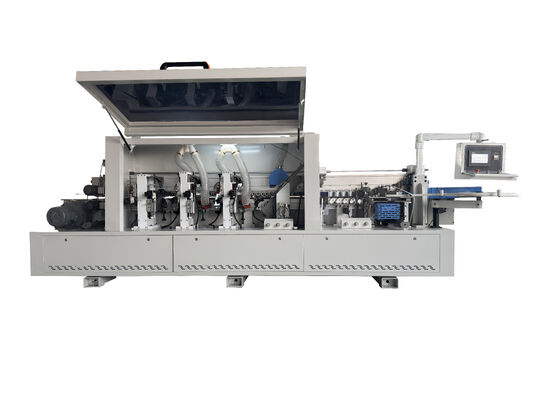

High Quality Cabinets Edge Bander Machine Double Trimming Wood Edge Band Machine

High Quality Cabinets Edge Bander Machine Double Trimming Wood Edge Band Machine

Brand Name:	BH
Model Number:	468F
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	3000Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Outline Dimension:

5000*850*1500mm

Machine Weight:

1600kg

Working Voltage:

380V/50Hz

Total Power:

9kw

Plate Thickness:

10~60mm

Working Pressure:

0.8MPa

Outline Dimension:

5000*850*1500mm

Machine Weight:

1600kg

Working Voltage:

380V/50Hz

Total Power:

9kw

Plate Thickness:

10~60mm

Working Pressure:

0.8MPa

Packaging Details:

5100*950*1600mm

Highlight:

double trimming edge band machine

wood edge banding machine

automatic cabinet edge bander

Product Description

 High Quality Cabinets Edge Bander Machine Double Trimming Wood Edge Band Machine
Product Features of Edge Banding Machine
This state-of-the-art edge banding machine represents the pinnacle of woodworking automation, combining 9 advanced processing modules to deliver flawless edge finishing for all types of wood panels. Its rigid cast iron base and precision linear guides ensure stability even at maximum processing speeds of 32 meters per minute, while the adaptive pressure system adjusts to panel surfaces, guaranteeing uniform glue application and edge band adhesion.
The machine’s glue tank is equipped with a PUR hot-melt system, which offers superior bonding strength and heat resistance compared to traditional EVA adhesives, with a melting temperature range of 130–190℃ controlled by a PID thermostat. A smart sensor array detects panel dimensions in real time, automatically adjusting cutter positions and feeding speeds to maintain accuracy. Its ergonomic design includes height-adjustable operator controls and LED lighting for enhanced visibility, while the noise-dampening enclosure reduces operational sound levels to 72dB, creating a more comfortable workspace.

The machine also incorporates a waste management system that collects glue residue and wood shavings, with a self-cleaning mechanism that reduces downtime for maintenance. Its modular design allows for easy upgrades with additional stations, such as grooving or corner rounding, as production needs grow.

Parameter

Outline dimension

5000*850*150m

Conveyor speed

18~24m/min

Machine weight

1600kg

Minimum width of board

50mm

Working voltage

380V/50Hz

Minimum length of board

70mm

Total power

9kw

Working pressure

0.8MPa

Plate thickness

10~60mm

Edge banding thickness

0.3~3mm

Advantages
One of the machine’s primary advantages is its versatility, supporting edge band materials from 0.3mm to 3.5mm thick, including PVC, acrylic, veneer, and solid wood strips. This eliminates the need for multiple machines, reducing capital expenditure by 38%. Its high-precision trimming system, featuring carbide-tipped blades with a lifespan of 900+ hours, ensures consistent quality even after prolonged use, reducing tool replacement costs by 28%.
The machine’s automated error detection system identifies misaligned panels or broken edge band material, triggering an immediate stop to prevent defective products and material waste. This proactive quality control feature reduces scrap rates by up to 20% compared to manual inspection processes. Additionally, the machine’s compact footprint (6.5m × 1.6m × 1.9m) allows it to fit into smaller production facilities, while its energy-efficient design reduces operational costs by 16% annually.

Functions
This comprehensive machine performs a full range of edge banding operations:
Panel Detection: Photoelectric sensors measure panel length and width, sending data to the PLC for automatic parameter adjustment.
Pre-heating: A hot air system pre-treats panel edges to improve glue penetration and bonding strength.

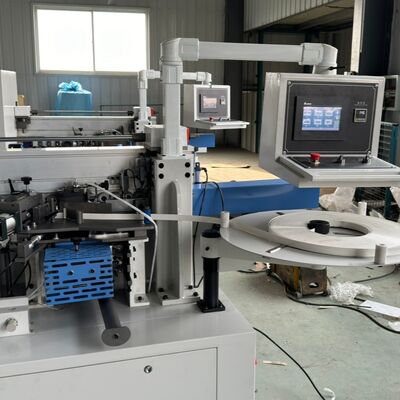

Gluing & Feeding: A dual-roller glue applicator ensures uniform adhesive coverage, while a servo-driven system feeds edge band material synchronously with the panel.
End Cutting & Trimming: High-speed circular saws trim excess edge band from panel ends, followed by top/bottom rough trimming to remove bulk material.
Fine Trimming & Scraping: Precision blades achieve a flush finish, and a flexible scraper smooths surface imperfections.
Buffing & Cleaning: A dual-stage buffing system polishes the edge, while an air blower removes dust and debris.

The machine also features a memory function that stores up to 100 processing recipes, allowing operators to quickly switch between different panel sizes and edge band materials, reducing setup time by 50%.

Applications
This edge banding machine is essential for woodworking businesses aiming to achieve professional-grade results with high efficiency. It is widely used in the production of residential furniture, such as wardrobes, bookshelves, and coffee tables, where durable, visually appealing edges are a key selling point. In the commercial sector, it is employed to manufacture office partitions, reception desks, and retail shelving, where consistent quality and quick turnaround times are critical.
The machine is also a vital component in the production of hospitality furniture, such as hotel room cabinets and restaurant booths, where durability and aesthetic appeal are essential. Its ability to handle both straight and curved panels makes it suitable for custom projects, including museum displays and luxury interiors, where unique designs require precise edge finishing. Additionally, it is used in the production of packaging materials and decorative panels, further expanding its industrial versatility.

Transportation & Installation
The machine is carefully packaged in a shock-absorbing wooden crate to protect sensitive components during transportation. It is disassembled into 3 manageable sections for easier loading and unloading, with a gross weight of 1600kg. We partner with global freight forwarders to offer flexible shipping options, including express air freight for urgent orders and consolidated sea freight for cost-effective bulk shipments.
Each shipment includes a comprehensive documentation package, including CE certification, an operation manual, and a parts list. Our technical support team provides remote installation guidance via video call, or on-site services for a nominal fee. We also offer a 12-month warranty covering parts and labor, with extended warranty options available. To ensure optimal performance, we provide a start-up kit containing spare blades, glue filters, and cleaning tools, along with operator training materials to maximize productivity from day one.
