| Brand Name: | BH |
| Model Number: | 1330A |
| MOQ: | 1 |
| Price: | $5000 - $8000 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

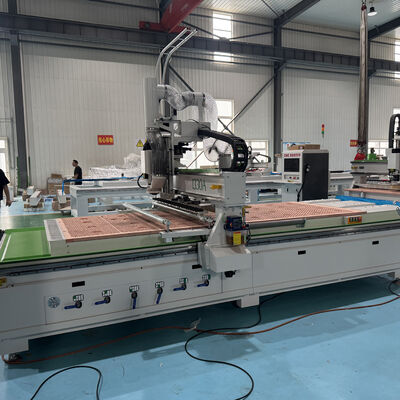

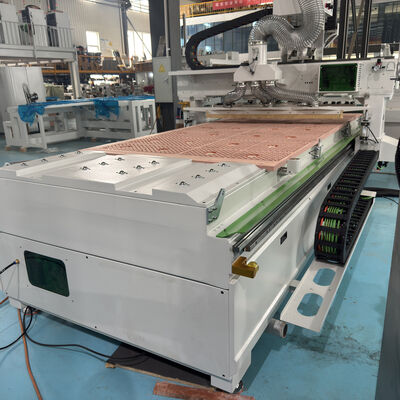

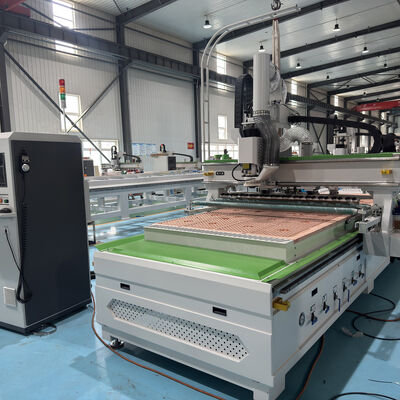

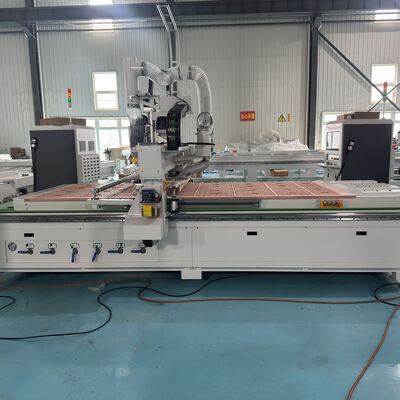

The 1330A ATC CNC Router is a versatile and powerful machining center designed for high-precision, high-volume processing of cabinet bodies, doors, and various panels. It integrates a 12-tool automatic tool changer (ATC), a dual press roller system, and a partitioned vacuum table to deliver exceptional efficiency, accuracy, and material hold-down for demanding production environments.
Main Features:
Dual-Function Powerhouse: Combines the capabilities for both cabinet body machining and detailed door panel processing in one robust machine.
High-Performance Spindle & ATC: Features a powerful 9KW automatic tool-changing spindle (18,000-24,000 RPM) paired with a patented inline 12-tool magazine, enabling complex multi-tool jobs without manual intervention.
Enhanced Precision & Rigidity: Constructed with a welded steel frame, stress-relieved and precision-machined on a 5-face machining center. Equipped with 25mm Taiwan steel guideways and 1.5-module P&C racks driven by 1.5KW servo motors for stable, high-accuracy performance.
Superior Material Holding: Utilizes a patented partitioned vacuum table with an 11KW pump and a dual press roller system to ensure secure, flat clamping of sheets—including smaller pieces—preventing movement during high-speed cutting.
Intelligent Efficiency Features: Includes time-saving functions like rapid drilling, form-based job sorting, and a rear-bed start button to streamline workflow and boost productivity.
Premium Components: Powered by a Taiwan LNC control system, Japan Shimpo reducers, Delixi electrical components, and a Taiwan Fuling inverter for reliable and stable operation.
Clean & Organized Operation: Features a highly effective patented dust hood, a follow-path air blowing system for cleaner cuts, and an organized drag chain with separated wiring for easy maintenance.
| Component | Specification |
|---|---|
| Machine size | 4300*2000*2100mm |
| Sheet processing dimensions | 3050*1220mm |
| Running Speed | 60m/min |
| Drive type | X/Y rack; Z screw |
| Table structure | Partitioned vacuum adsorption table |
| Spindle power | 9kw |
| Spindle speed | 18000~24000r/min |
| Maximum operating speed | 20m/min |
| Operating voltage | AC380/3PH/50HZ |
Ideal for furniture, cabinet, and door manufacturers, the 1330A ATC CNC Router is engineered to maximize output, precision, and operational convenience for professional panel processing.
