| Brand Name: | BH |
| Model Number: | 1330A |
| MOQ: | 1 |
| Price: | $5000 - $8000 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

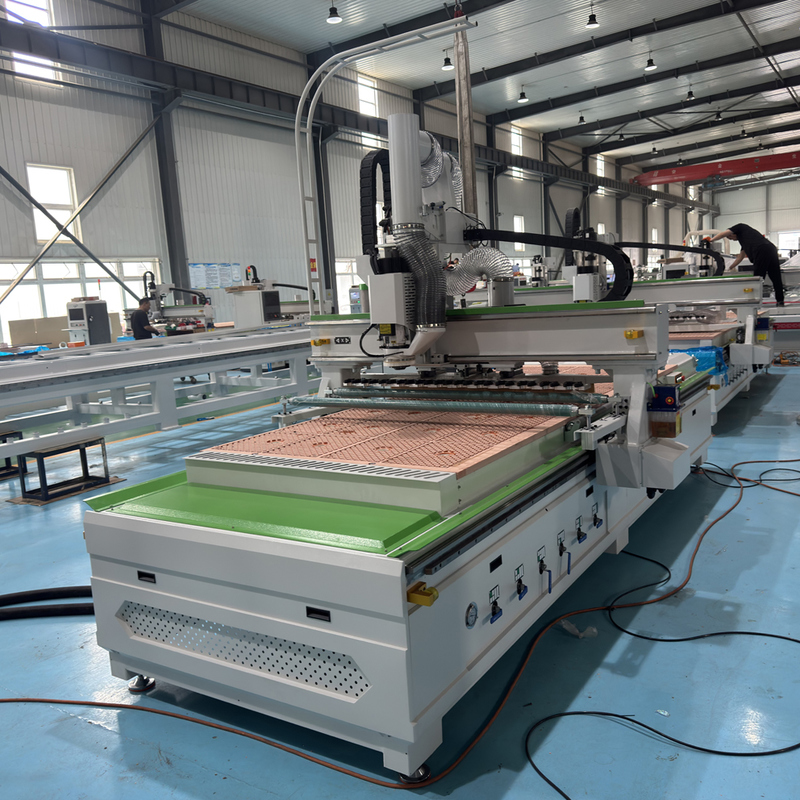

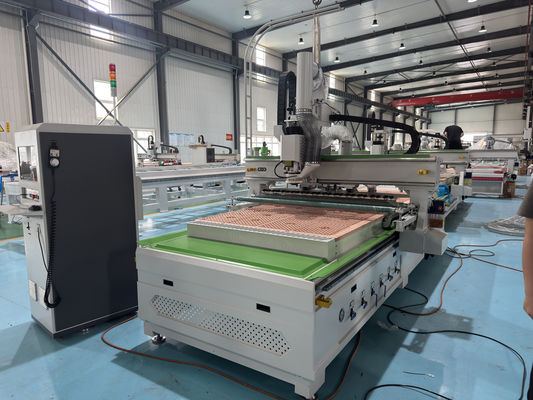

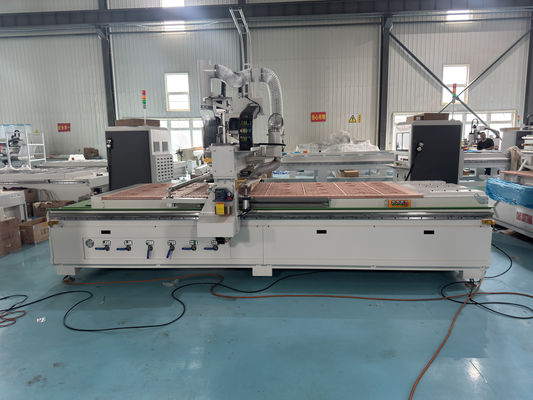

This advanced CNC router machine features an automatic tool changer that delivers significant operational benefits:
| Component | Specification |
|---|---|
| Machine size | 4300*2000*2100mm |
| Sheet processing dimensions | 3050*1220*18mm |
| Running Speed | 60m/min |
| Drive type | X/Y rack; Z screw |
| Table structure | Partitioned vacuum adsorption table |
| Spindle power | 9kw |
| Spindle speed | 18000~24000r/min |
| Maximum operating speed | 20m/min |
| Operating voltage | AC380/3PH/50HZ |
|
Control System: Taiwan LNC-Buyu control system. Stable, fast response, user-friendly interface for simpler, more intuitive operation. | |

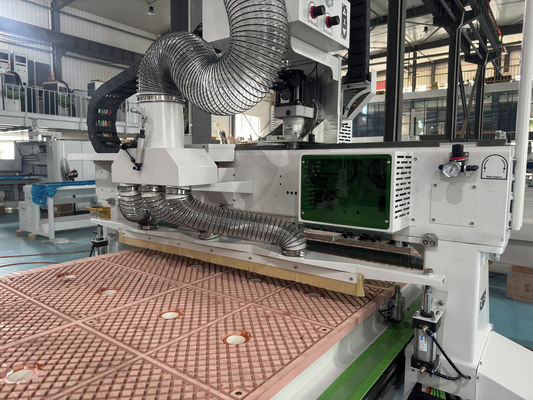

Zoned vacuum adsorption table with screw fixation. Patented design, stronger suction, prevents small boards from shifting. |
|
Spindle: CC / 9KW high-power automatic tool change spindle, 18000-24000r/min. High cutting torque, fast speed, smooth operation. | |
Linear 12-tool magazine. Meets customer needs for processing both cabinets and doors. Currently the highest tool capacity on the market. |
|
XYZ drive motors: Servo motors 1.5KW. Drives: Servo drives (matched to the above motors). | |
Patented dust collection hood. Excellent dust collection effect, even cleans dust from the cutting groove. |
|
Reducer: Japan Shimpo reducer, using helical planetary structure design for higher precision and longer service life. | |
Steel beam. Both the bed and beam undergo quenching and shot blasting, processed by a 5-face CNC machining center. |
|
Guide Rails: Taiwan steel guide rails (25MM), higher precision, higher hardness. | |
11KW vacuum pump. High-power adsorption ensures small boards do not shift. |
|
High precision, 1.5 module P&C rack and pinion transmission. Fast speed, high accuracy, wear-resistant material. | |
Drag chain: Imported layered and separated type. Each wire is separated individually for easy troubleshooting. |
|
Cables: Hengtong high-flex shielded drag chain cables, suitable for large seasonal temperature differences across regions. | |
Solenoid valves controlling the equipment's cylinders are all centralized at the rear of the beam for easy problem identification. |
|
Main electrical components: Domestic brand Delixi electrical components. Quality assured, readily available nationwide. | |
Follow-path air blow device. Truly achieves dust-free and environmentally friendly cutting. |
|
Inverter: Taiwan Fuling inverter, fast response, and more stable. | |
Dual press rollers press the sheet, applying even pressure to ensure dimensional accuracy during cutting. |
|
Centralized lubrication system. Timed, automatic, metered oiling extends the drive system's service life. | |
Equipped with keyboard and mouse for convenient operation. |
