Woodworking CNC Nesting Machine With 12pcs Linear Tool AC380V / 3PH / 50HZ

Woodworking CNC Nesting Machine With 12pcs Linear Tool AC380V / 3PH / 50HZ

Brand Name:	BH
Model Number:	1330A
MOQ:	1
Price:	$5000 - $8000
Payment Terms:	T/T
Supply Ability:	3000sets /year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao,China

Certification:

Size:

4300*2000*2100mm,Customized Size

Maximum Operating Speed:

20m/min

Spindle Speed:

18000~24000r/min

Table Structure:

Partitioned Vacuum Adsorption Table

Service:

OEM ODM,OEM\ODM,customized Service,Any Questions Will Be Answered Within 24 Hours.

Operating Voltage:

AC380/3PH/50HZ

Packaging Details:

3700*2250*2400mm

Highlight:

Woodworking CNC Nesting Machine

CNC Nesting Machine 3PH

Product Description

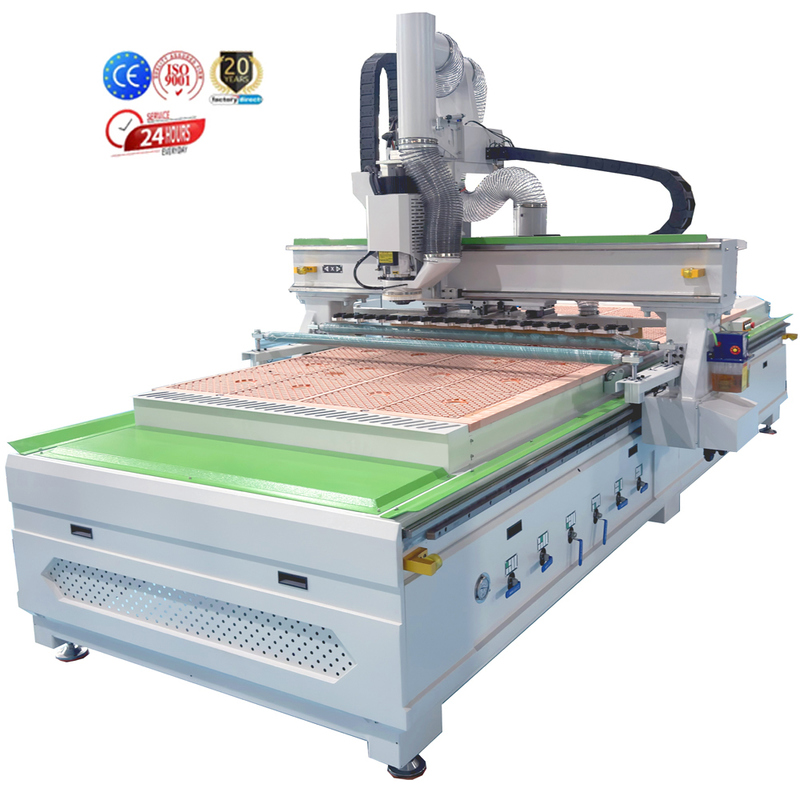

Woodworking Automatic Tool Change CNC Router Machine 1330 12pcs Linear Tool

Product Overview

Features new generation Taiwan LNC-Buyu control system with intelligent processing cross-border protection
Full steel structure welded and tempered bed for maximum rigidity and distortion-free operation
High-power automatic tool change spindle delivers superior cutting force
Large independent cabinet with separate keyboard for simple, convenient operation

Technical Specifications

Component	Specification
Machine size	430020002100mm
Sheet processing dimensions	3050122018mm
Running Speed	60m/min
Drive type	X/Y rack; Z screw
Table structure	Partitioned vacuum adsorption table
Spindle power	9kw
Spindle speed	18000~24000r/min
Maximum operating speed	20m/min
Operating voltage	AC380/3PH/50HZ

Customization Available: Models and configurations can be customized to customer requirements. Orders require prepayment. Contact us for specific pricing based on your configuration needs.

Key Features

Control System

Taiwan LNC-Buyu control system. Stable, fast response, user-friendly interface for simpler, more intuitive operation.

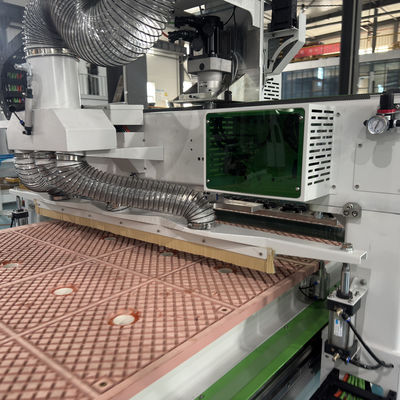

Vacuum Table

Zoned vacuum adsorption table with screw fixation. Patented design, stronger suction, prevents small boards from shifting.

Spindle

CC / 9KW high-power automatic tool change spindle, 18000-24000r/min. High cutting torque, fast speed, smooth operation.

Tool Magazine

Linear 12-tool magazine. Meets customer needs for processing both cabinets and doors. Currently the highest tool capacity on the market.

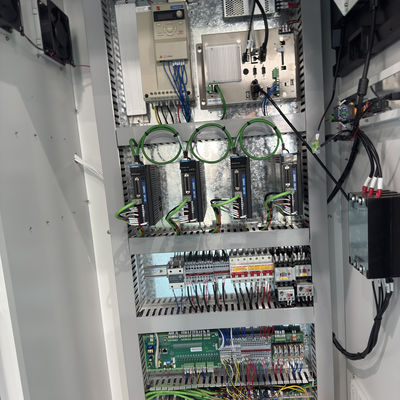

Drive Motors

XYZ drive motors: Servo motors 1.5KW. Drives: Servo drives (matched to the above motors).

Dust Collection

Patented dust collection hood. Excellent dust collection effect, even cleans dust from the cutting groove.

Reducer

Japan Shimpo reducer, using helical planetary structure design for higher precision and longer service life.

Steel Beam

Both the bed and beam undergo quenching and shot blasting for strength and machining accuracy.

Enhanced Functionality

Combines door panel and cabinet machining capabilities
Rapid plunge function for efficient drilling operations
Form sequencing processing function for streamlined workflow
Start-from-behind function for convenient operation

Applications

Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards
Advertising Industry: Advertising identification, sign making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives
Die Industry: Sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic molds

Frequently Asked Questions

Q1: Can customized services be supported?

A1: Yes, we can customize the color, size and logo you need.

Q2: Where is your factory located?

A2: We are a Chinese manufacturer in Qingdao city, Shandong province.

Q3: Can you make the machine according to my design or prototype?

A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.

Q4: Is this machine easy to operate for beginners?

A4: We provide guide videos and English instruction manuals with the machine, plus free professional guidance until you can operate proficiently.

Q5: What's your MOQ and delivery terms?

A5: Minimum order quantity is 1 set. We ship directly to your country's port.
