| Brand Name: | BH |
| Model Number: | BHM-45D |
| MOQ: | 1 |
| Price: | 1300-1700USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

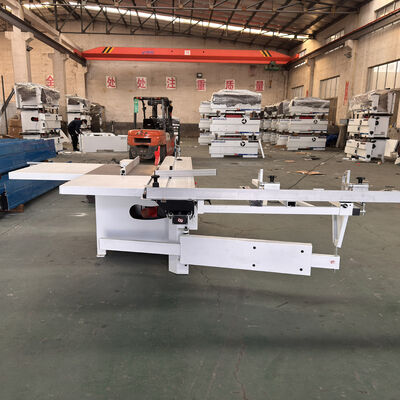

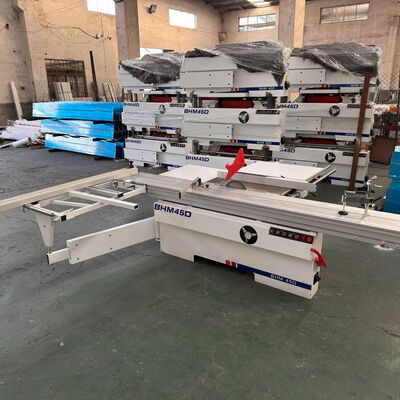

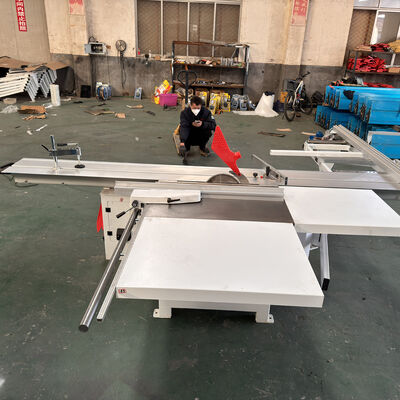

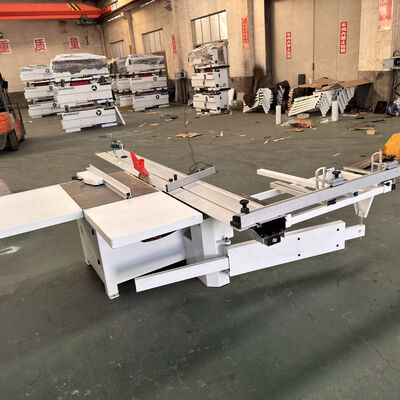

When consistent results and day-in, day-out reliability matter most, the BHM-45D stands as a fundamental force in the workshop. This sliding panel saw is engineered not with superfluous features, but with a dedicated focus on core performance: delivering straight, clean, and angled cuts through solid engineering and intelligent design. It transforms large panels into precise components with a confidence that comes from unwavering stability.
| Specification | Value |
|---|---|
| Push table length | 3200 mm |
| Push table width | 375 mm |
| Motor power | 5.5 *0.75KW |
| Sawshaft speed | 4000-6000RMP |
| Speed of Scoring saw blade | 7000-8000RMP |
Key Specifications
Max Cutting Length: 3100mm
Max Cutting Thickness: 70mm
Main Motor Power: 5.5 KW
Scoring Motor Power: 0.75 KW
Main Saw Blade Diameter: 300mm (range 250–350mm)
Scoring Saw Diameter: 120mm
Saw Shaft Speed: 4000–6000 RPM
Scoring Saw Speed: 7000–8000 RPM
Machine Weight: 650 kg
Designed for Performance & Durability
Built Around a Core of Stability
The experience begins with the solid 3200mm sliding table, a platform designed for smooth, unwavering movement even under full-sized sheets. This foundation supports a powerful 5.5 kW cutting system, paired with a 0.75 kW scoring motor, to effortlessly tackle materials up to 70mm thick. The result is a pristine, splinter-free finish on both laminate and solid wood, from the first cut to the last in a long production run.
Precision, Delivered Through Simplicity
Accuracy is engineered into every guide and fence. The fine-adjust rip fence ensures parallel perfection, while the substantial crosscut fence—a robust 1850mm unit with dual stops—handles repetitive sizing and 45-degree miters with steadfast repeatability. A full-size workbench provides essential support, and the included pressure feeder adds a layer of control and safety, particularly when managing large sheets or executing precise angled crosscuts.
Designed for the Real World
The BHM-45D understands the workshop environment. Its efficient vacuum system, anchored by a 150mm port and a follow-the-blade hood, captures dust at the source. The machine's skeleton is a testament to durability: a welded frame of integrated steel plates (4mm front, 5mm rear, 6mm top) that absorbs vibration and maintains alignment year after year. Trusted Delixi electrical components ensure dependable operation shift after shift.
For Those Who Value Substance
This model is the definitive choice for craftsmen and manufacturers who seek a direct, no-nonsense tool. It forgoes digital displays and power assist to offer pure, mechanical dependability and exceptional value. The BHM-45D doesn't just perform tasks; it becomes the reliable, unwavering backbone of your panel processing workflow, project after project.
The Table Saw is widely used in:
Furniture manufacturing for panel sizing and cutting
Batch production of custom cabinets, wardrobes, and other furniture
Door, window, and decorative trim processing, including bevel cuts
Precision cutting of engineered wood panels such as particleboard, MDF, and plywood
Ideal for woodworking shops, building material processing workshops, and custom furniture production lines
