| Brand Name: | BH |
| Model Number: | BHM-45D |
| MOQ: | 1 |
| Price: | 1300-1700USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |
| Specification | Value |
|---|---|
| Push table length | 3200 mm |
| Push table width | 375 mm |
| Motor power | 5.5 *1.1KW |
| Sawshaft speed | 4000-6000RMP |
| Speed of Scoring saw blade | 7000-8000RMP |
Cutting Capacity: Maximum cutting length of 3100 mm and thickness of 70 mm, with a versatile cutting angle range of 0–45°.

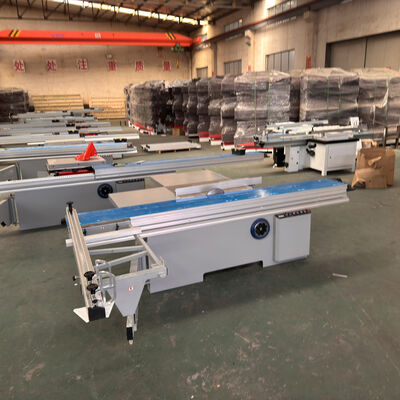

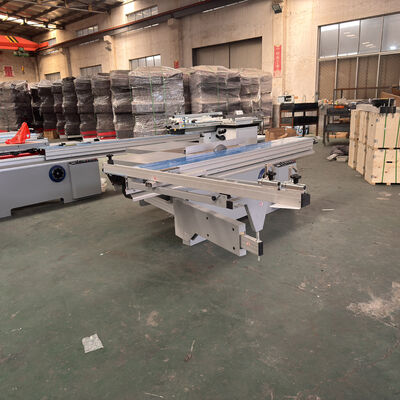

Worktable: Features a large sliding table (3200 × 375 mm) with a reinforced push table for smooth and stable material handling.
Motor System: Powered by a high-performance 5.5 kW main motor and a 1.1 kW scoring motor, ensuring clean, chip-free cuts. Both motors are mounted above the frame for improved durability and maintenance access.
Saw Blades: Equipped with a 300 mm main saw blade and a 120 mm scoring blade, running at 4000–6000 RPM and 7000–8000 RPM respectively for precise scoring and cutting.
Digital Control: Integrated digital display for accurate angle setting (0–90°) and electric lifting for quick and easy saw blade adjustment.
Enhanced Precision with Digital Control
The BHM45S is equipped with an accurate digital display covering a 0-90° range, providing clear visual feedback for exact angle and measurement settings. An electric lifting system allows for quick and effortless adjustment of the main saw blade, reducing setup time and improving operational efficiency.
Robust Construction for Lasting Performance
Built for stability and durability, the machine features a reinforced framework with 6mm front and rear panels, supported by a substantial 16mm top plate. This solid construction ensures minimal vibration and consistent alignment, even during intensive use. Weighing 750kg, the saw maintains a steady and reliable presence in the workshop.
Powerful and Efficient Cutting Capabilities
Powered by a 5.5kW main motor and a 1.1kW scoring motor, the BHM45S handles materials up to 70mm thick with clean, precise cuts. The sliding table measures 3200 x 375mm, accommodating large panels with ease, while the cutting range extends to 3100mm in length and 0-45° in angle versatility.
Optimized for User Convenience and Safety
The saw includes a full-size workbench and a pressure feeder, supporting safe and efficient handling of large boards and angled cuts. An integrated vacuum system with a 150mm port and follow-the-blade hood keeps the workspace clean, while fine-tune rip and crosscut fences ensure accurate and repeatable results.
Professional-Grade Features for Demanding Applications
With its combination of digital precision, motorized adjustments, and industrial-strength build, the BHM45S is an ideal solution for cabinet shops, furniture makers, and production facilities seeking a high-performance panel saw that balances advanced technology with practical reliability.
The Table Saw is widely used in:
Furniture manufacturing for panel sizing and cutting
Batch production of custom cabinets, wardrobes, and other furniture
Door, window, and decorative trim processing, including bevel cuts
Precision cutting of engineered wood panels such as particleboard, MDF, and plywood
Ideal for woodworking shops, building material processing workshops, and custom furniture production lines
