BHM45D Industrial Sliding Panel Saw with 3200mm Sliding Table 5.5KW Motor and 650KG Robust Frame for Stable Woodworking

Name: BHM45D Industrial Sliding Panel Saw with 3200mm Sliding Table 5.5KW Motor and 650KG Robust Frame for Stable Woodworking
Brand: Qingdao Baihang Industry and Trade Co., Ltd
SKU: BHM-45D
Price: 1,500.00 USD
Availability: InStock

Brand Name:	BH
Model Number:	BHM-45D
MOQ:	1
Price:	1300-1700USD
Payment Terms:	T/T
Supply Ability:	3000sets/year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao，China

Certification:

Document:

BHM-45D.pdf

Size:

3200*375*1100mm

Voltage:

380/220V

Weight:

650kg

Motor Power:

5.5*0.75kw

Lifting Method:

Manual

Core Components:

Motor

Packaging Details:

wooden box

Highlight:

industrial sliding panel saw

sliding table saw for woodworking

stable efficient woodworking saw

Product Description

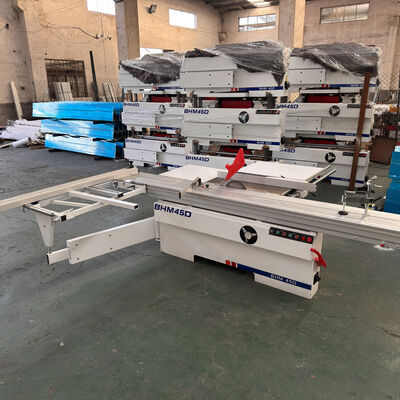

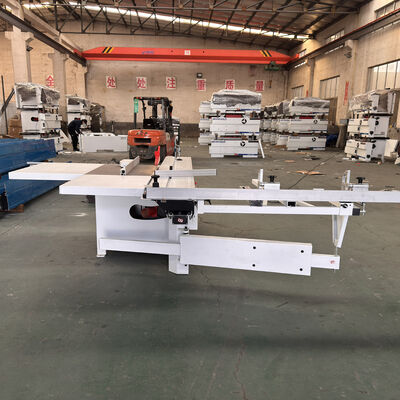

BHM45D Industrial Sliding Panel Saw

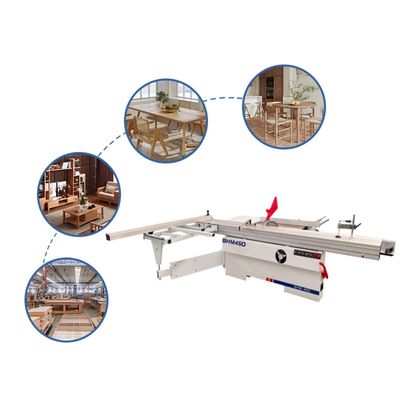

Elevate your furniture production with the BHM-45D Sliding Panel Saw by Baihang Machinery. Designed for stable production and long-term durability, this machine is the ideal choice for woodworking shops seeking reliable performance without unnecessary complexity. Whether you are cutting laminates, solid wood, or composite panels, the BHM-45D delivers precision and efficiency to meet your daily manufacturing demands.

Technical Specifications

Push table length	3200 mm
Push table width	375 mm
Motor power	5.5 * 0.75KW
Sawshaft speed	4000-6000 RPM
Speed of Scoring saw blade	7000-8000 RPM

Robust Performance and Power

At the core of the BHM-45D is a high-power motor structure featuring a 5.5KW main motor paired with a 0.75KW scoring motor. Uniquely, the motor is installed above the frame, optimizing space and maintenance access. The main saw shaft operates at 4000-6000 RPM, while the scoring saw blade reaches 7000-8000 RPM. This dual-speed capability ensures clean, chip-free edges on delicate materials, reducing the need for secondary sanding. With a maximum cutting thickness of 70mm and a cutting length of 3100mm, this saw handles full-sized sheets with ease.

Precision Engineering and Stability

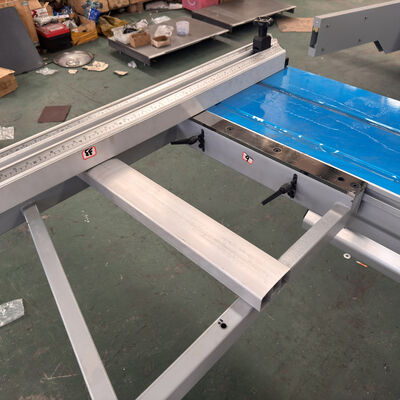

Accuracy begins with a stable base. The BHM-45D features a European standard thickened sliding table measuring 3200mm x 375mm. This expansive surface supports heavy workpieces, minimizing vibration during cuts. The machine is built on an integrated bending frame with a 6mm thick top plate, 4mm front panel, and 5mm rear panel, contributing to a solid machine weight of 650KG. This mass ensures steady operation even during prolonged use.

The fencing system is designed for quick adjustments and repeatability. The Fine Tune Rip Fence features a solid chrome-plated shaft (45mm diameter) with a usage length of 1500mm. The Heavy-Duty Crosscut Fence spans 1850mm and includes two flip stops, allowing for rapid setup of common dimensions. Both fences support accurate 0-45° cutting angles, enabling versatile bevel work.

Safety and Cleanliness

Maintain a safer workshop with the integrated vacuum cleaning system. The bottom 150mm vacuum interface connects to a saw blade vacuum cleaner where the hood follows the saw shaft. This design captures dust at the source, keeping the cutting line visible and protecting internal components from debris. Electrical reliability is guaranteed through CHINT brand electrical appliances, known for their stability in industrial environments. While this model focuses on manual operation (no digital display or electric lifting), it offers exceptional value and mechanical precision.

Product Features

European standard thickened slide table (3200 * 375mm)

Premium Delixi brand electrical components

150mm vacuum interface with saw blade vacuum cleaner and following hood

45° adjustable crosscut fence with smooth sliding mechanism

Frequently Asked Questions

Can customized services be supported?

Yes, we offer customization for color, size, and logo requirements.

Where is your factory located?

Our manufacturing facility is located in Qingdao City, Shandong Province, China.

Can you make the machine according to my design or prototype?

Our professional design team can create customized production plans based on your specifications.

Is this machine easy to operate for first-time users?

We provide instructional videos, English manuals, and free professional guidance until operators achieve proficiency.

What's your MOQ and delivery terms?

Minimum order quantity is 1 set. We ship directly to your designated port (please provide port details for accurate shipping costs).

How is your after-sales service?

24/7 customer support with optional overseas installation services available.

If my machine breaks down, can you help me fix it?

Yes. We offer free online training. If your machine has a major problem during the warranty period, we can repair it.
