| Brand Name: | BH |
| Model Number: | BHM-45D |
| MOQ: | 1 |
| Price: | 1300-1700USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

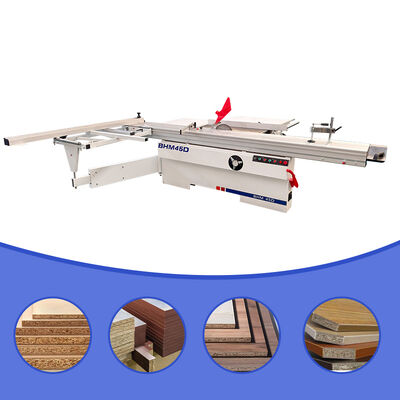

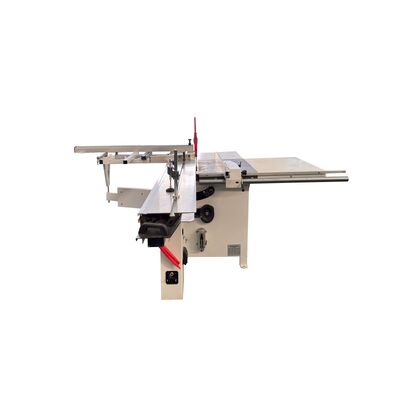

Woodworking Table Saw Plywood Sliding Panel Saw With 45 Degree
Product Overview
| Push table length | 3200 mm |
| Push table width | 375mm |
| Main motor power | 5.5KW |
| Sconing motor power | 0.75KW |
| Cutting Capacity | 0-45° |
| Weight | 650kg |
1.High-Power Propulsion Mechanism: Equipped with a 5.5kW main motor and 0.75kW scoring motor, delivering strong power to easily handle cutting tasks for various materials and thicknesses of panels.
2.High-Precision Cutting Performance: Main saw blade speed of 4000-6000rpm and scoring saw speed of 7000-8000rpm, combined with precise saw blade tilting angle adjustment (0-45°), ensure smooth and clean cutting surfaces.
3.User-Friendly Operation Design: Integrates crosscut fence and fine-tune rip fence technologies, simplifying operating procedures and improving cutting convenience and efficiency.
4.Heavy-Duty Stable Structure: Features a 4mm front panel, 5mm rear panel, 6mm top plate, and integrated bent and welded frame, combined with a heavy-duty chassis design, ensuring long-term operational stability and durability.
5.Precision Guide System: Equipped with a 2000mm solid chrome-plated rip fence shaft with a smooth, wear-resistant surface, ensuring precise guidance and cutting straightness.
6.Efficient Dust Removal System: Features a bottom 150mm vacuum interface that can connect to a saw blade dust collection device, effectively capturing dust generated during cutting and improving the working environment.
Product Applications
Panel Furniture Manufacturing: Suitable for precision cutting of panels for cabinets, wardrobes, bookshelves, and other furniture components.
Decorative Building Materials Processing: Can be used for cutting and trimming wall panels, flooring, decorative moldings, and other materials.
Door and Window Production: Meets the dimensional cutting and angled processing requirements for door panels, window frames, and other components.
Panel Sales Stores: Ideal for panel sellers to provide on-site cutting services for customers.
Small Processing Workshops: Suitable for small to medium-scale production environments, meeting diverse and small-batch cutting needs.
This machine excels in any application that demands high-volume, high-precision cutting of sheet materials like plywood, MDF, particle board, and plastic laminates.
Details display
