3200mm Table Sliding Table Saw with 5.5KW Main Motor and 45 Degree Cutting for Precision Woodworking

Name: 3200mm Table Sliding Table Saw with 5.5KW Main Motor and 45 Degree Cutting for Precision Woodworking
Brand: Qingdao Baihang Industry and Trade Co., Ltd
SKU: BHM-45D
Price: 1,500.00 USD
Availability: InStock

Brand Name:	BH
Model Number:	BHM-45D
MOQ:	1
Price:	1300-1700USD
Payment Terms:	T/T
Supply Ability:	3000sets/year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao，China

Certification:

Document:

BHM-45D.pdf

Size:

3200*375*1100mm

Voltage:

380/220V

Weight:

650kg

Motor Power:

5.5*0.75kw

Use:

Woodworking

Core Components:

Motor

Packaging Details:

wooden box

Highlight:

3200mm Push Table Sliding Table Saw

5.5KW Main Motor Panel Saw

45 Degree Cutting Woodworking Table Saw

Product Description

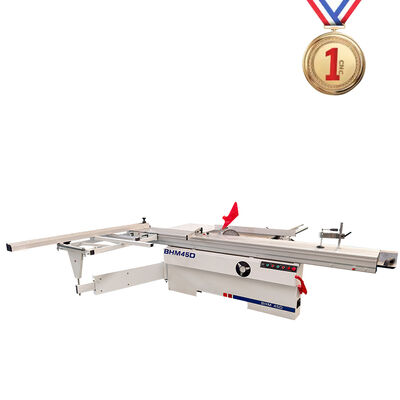

BHM-45D Precision Sliding Table Saw

The BHM-45D Precision Sliding Table Saw is a high-performance panel cutting equipment designed for medium-scale furniture manufacturing enterprises and panel processing workshops. This professional-grade woodworking machine combines high production capacity, precision cutting, exceptional stability, and operational safety.

Technical Specifications

Push Table Length	3200 mm
Push Table Width	375 mm
Main Motor Power	5.5 KW
Scoring Motor Power	0.75 KW
Cutting Capacity	0-45°
Maximum Cutting Length	3100 mm
Maximum Cutting Thickness	70 mm
Main Saw Blade Speed	4000-6000 rpm
Scoring Saw Speed	7000-8000 rpm
Weight	650 kg

Key Features & Advantages

High-Power Propulsion Mechanism: 5.5kW main motor and 0.75kW scoring motor deliver strong power for cutting various materials and thicknesses
High-Precision Cutting Performance: 4000-6000rpm main saw blade and 7000-8000rpm scoring saw ensure smooth, clean cutting surfaces
User-Friendly Operation Design: Integrated crosscut fence and fine-tune rip fence technologies simplify operating procedures
Heavy-Duty Stable Structure: 4mm front panel, 5mm rear panel, 6mm top plate with integrated bent and welded frame for long-term stability
Precision Guide System: 2000mm solid chrome-plated rip fence shaft ensures precise guidance and cutting straightness
Efficient Dust Removal System: Bottom 150mm vacuum interface connects to saw blade dust collection for improved working environment

Product Applications

Panel Furniture Manufacturing: Precision cutting for cabinets, wardrobes, bookshelves, and furniture components
Decorative Building Materials Processing: Cutting and trimming wall panels, flooring, decorative moldings
Door and Window Production: Dimensional cutting and angled processing for door panels and window frames
Panel Sales Stores: On-site cutting services for customers
Small Processing Workshops: Diverse and small-batch cutting needs in production environments

This machine excels in any application demanding high-volume, high-precision cutting of sheet materials like plywood, MDF, particle board, and plastic laminates.

Product Details

European Standard Thickened Slide Table

Slide table size: 3200 * 375mm

Delixi Brand Electrical Components

Efficient Dust Collection System

Bottom 150mm vacuum interface with saw blade vacuum cleaner. The vacuum hood follows the saw shaft for optimal dust collection.

45° Crosscut Fence System

Crosscut fence that can be used at 45° and slides easily as a complete unit.

Frequently Asked Questions

Can customized services be supported?

Yes, we can customize the color, size and logo you need.

Where is your factory located?

We are a Chinese manufacturer in Qingdao City, Shandong Province.

Can you make the machine according to my design or prototype?

Yes. We have professional designers to create the most suitable production plan for your requirements.

Is this machine easy to operate for first-time users?

We provide guide videos and English instruction manuals with the machine. Free professional guidance is available until you can operate the machine proficiently.

What's your MOQ and delivery terms?

Our minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for accurate shipping costs.

How is your after-sales service?

Our sales team is available 24/7. We also provide overseas installation services.
