| Brand Name: | BH |
| Model Number: | BHM-45D |
| MOQ: | 1 |
| Price: | 1300-1700USD |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

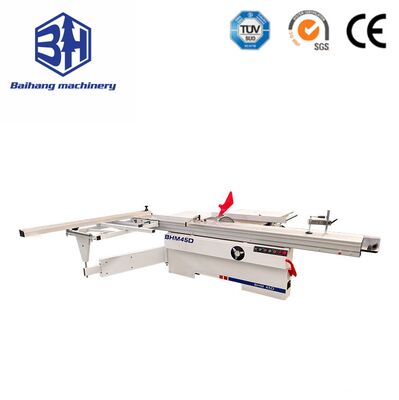

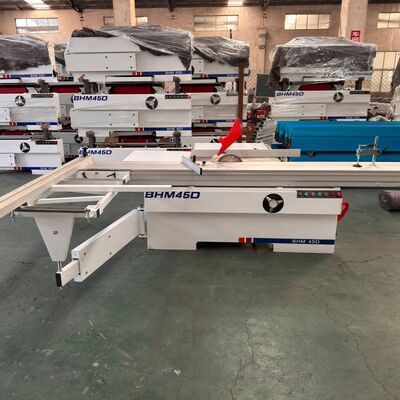

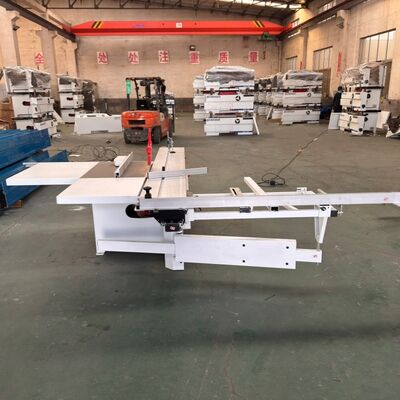

The BHM‑45D Sliding Panel Saw manufactured by Baihang Machinery is a robust, precision‑engineered woodworking machine built for stable, high‑volume production environments. Designed to deliver consistent cutting performance, this machine combines heavy‑duty construction, powerful dual motors, and user‑friendly operational features to meet the demands of professional furniture factories, cabinet workshops, joinery shops, and wood processing facilities.
With a working length of 3200mm and a push‑table dimension of 3200*375mm, it supports large‑format panel processing with exceptional stability and control. The scoring system operates at 7000-8000 RPM, creating a shallow pre‑cut groove that prevents surface chipping, splintering, or tear‑out on laminated boards, MDF, plywood, particleboard, and melamine panels. This dual‑blade system ensures clean, smooth, and professional‑quality finished edges, eliminating the need for extensive secondary sanding or trimming.
| Specification | Value |
|---|---|
| Push table length | 3200 mm |
| Push table width | 375 mm |
| Motor power | 5.5 * 0.75KW |
| Sawshaft speed | 4000-6000 RPM |
| Speed of Scoring saw blade | 7000-8000 RPM |
It features an integrated bending frame with a 4mm front panel, 5mm rear panel, and 6mm top plate, delivering exceptional rigidity and minimizing vibration during high‑speed operation. Weighing 650kg, the BHM‑45D remains firmly stable even under continuous heavy use, ensuring dimensional accuracy and extended service life.

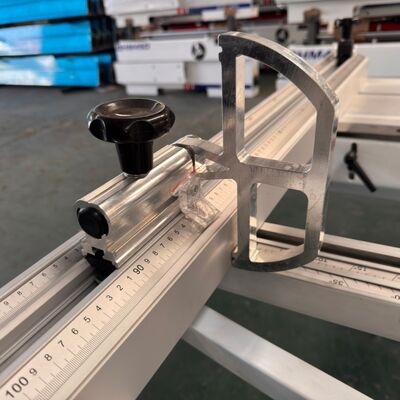

The solid chrome‑plated rip fence axis (1500mm usage length) and heavy‑duty crosscut fence (1850mm usage length) with dual flip‑stops enhance cutting precision and repeatability, allowing operators to produce uniform components in batch production without repeated measurement adjustments.
The BHM‑45D is widely used in custom cabinet manufacturing, kitchen furniture production, office furniture assembly, interior decoration, wooden door fabrication, and modular wood product processing. It excels in ripping large panels along the grain, crosscutting panels to precise lengths, cutting 45° miter joints for frames and corners, and bevel cutting for edge joining.
The optional pressure feeder assists in stable large‑panel cutting and 45° angle transverse cutting, further expanding its versatility for complex projects. Whether for small‑batch customized production or large‑scale standardized manufacturing, the BHM‑45D improves efficiency, reduces material waste, enhances product quality, and lowers labor costs, making it an indispensable core machine in modern woodworking workshops.
