| Brand Name: | BH |
| Model Number: | 388Y |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 3000Sets/Year |
The BHM388Y Automatic Edge Banding Machine is a powerhouse solution designed for woodworking workshops demanding high-volume output and uncompromising finish quality. Unlike standard models, the 388Y variant integrates a pre-milling station to ensure perfect substrate preparation, making it the ideal choice for processing MDF, solid wood, PVC, and acrylic panels. Built with an industrial-grade frame and premium components, this machine delivers a flawless, furniture-grade finish on every cycle.
| No | Item | Data |
|---|---|---|
| 1 | Dimensions | 5000 x 750 x 1500 mm |
| 2 | Weight | 1500 kg |
| 3 | Operating Voltage | 380V/50Hz |
| 4 | Total Power | 13.5kW |
| 5 | Sheet Thickness | 10~60mm |
| 6 | Conveyor Speed | 18~24m/min |
| 7 | Minimum Width | 50mm |
| 8 | Minimum Length | 70mm |
| 9 | Operating Air Pressure | 0.7MPa |
| 10 | Edge Band Thickness | 0.3~3mm |
| 11 | Glue box heating power | 1.5 kW |
| 12 | Sheet preheating power | 0.3 kW |
| 13 | Glue box transmission power | 0.55 kW |
| 14 | Conveyor belt motor power | 2.2 kW |
| 15 | Trimming motor power | 0.55 kW x 2 (12,000 rpm, 200 Hz) |
| 16 | Fine trimming motor power | 0.75 kW x 2 (18,000 rpm, 300 Hz) |
| 17 | Tracking and profiling motor power | 0.35 kW x 2 (18,000 rpm) |
| 18 | Polishing motor power | 0.18 kW x 2 |

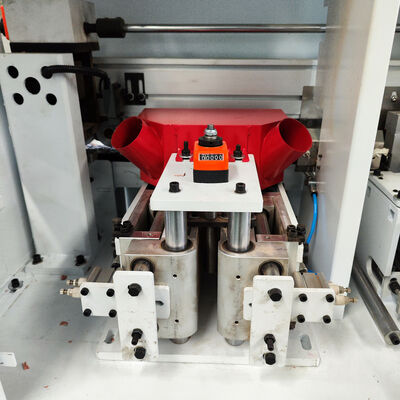

What sets the BHM388Y apart is its advanced workflow. Before the edge banding process even begins, the integrated dual pre-milling cutters remove burrs, grain marks, and irregularities from the panel edge. This ensures a perfectly flat surface for adhesion, significantly improving the final sealing effect and durability of the bond.
This machine handles the entire edge finishing process automatically:
At the core of the BHM388Y lies a standard PLC microcomputer control system. This intelligent interface, combined with a high-sensitivity encoder, manages all machine actions with precision. The result is rapid response times, exceptional stability during extended production runs, and a low failure rate.
We prioritize reliability by sourcing key components from globally recognized brands:
