| Brand Name: | BH |
| Model Number: | BHM START 300 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 3000Sets/Year |
Product Overview

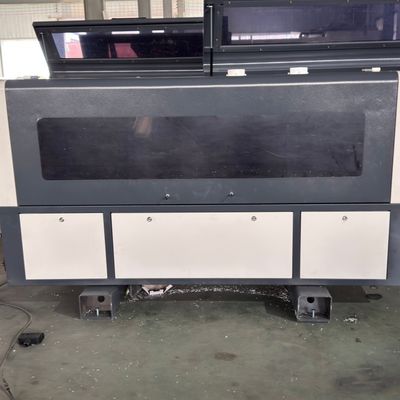

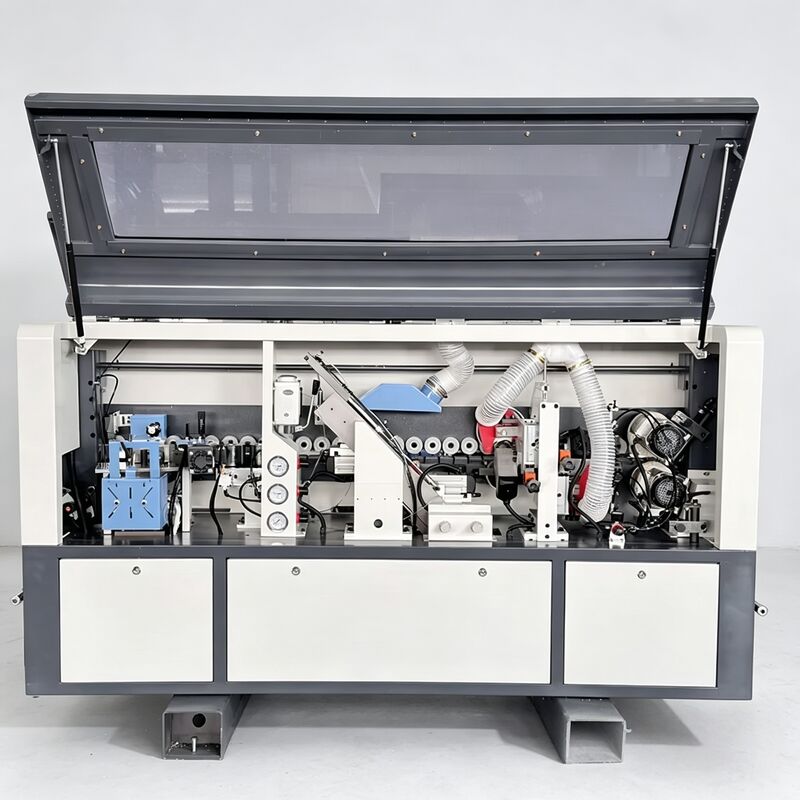

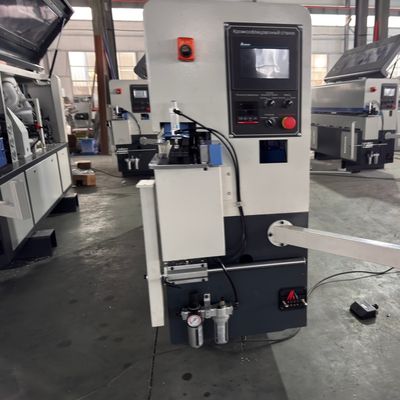

The BHM START 300 is a fully automated, high-speed edge banding solution tailored for small-scale board processing workshops and entry-level furniture production facilities. This compact unit measures 3000mm in length, 750mm in width, and 1500mm in height, with a total mass of 800kg. Its variable-speed feed system operates between 16 meters per minute, accommodating panel thicknesses from 10mm up to 60mm and edge strips ranging from 0.3mm to 3mm. The machine accepts boards as narrow as 50mm and as short as 70mm. Running on 380V/50Hz power with a total draw of 7kW and requiring 0.7MPa compressed air, the START 300 features a vertical display interface for straightforward operation. A hand-cranked mechanism with digital readout allows precise adjustment of the pressure beam height. The generously sized glue tank enables extended run times between refills. The machine executes a complete production sequence—gluing, pressing, rough trimming, end cutting, corner radiusing, high-volume dust extraction, secondary scraping, and final buffing—delivering a fully finished panel in one seamless pass.
| Specification | Value | Specification | Value |
|---|---|---|---|
| Outline dimension | 3000*750*1500mm | Conveyor speed | 16m/min |
| Machine weight | 800KG | Minimum width of board | 50mm |
| Working voltage | 380V/50Hz | Minimum length of board | 70mm |
| Total power | 7KW | Working pressure | 0.7Mpa |
| Plate thickness | 10-60mm | Edge banding thickness | 0.3~3mm |
1.Encoder-Guided Motion Control: A high-resolution encoder governs all mechanical sequences, delivering fast command response and minimal breakdown frequency.
2.Time-Based PLC Logic: The onboard programmable controller relies on simple time-control principles, making programming intuitive while boosting both operational safety and repeatability.
3.Extended-Run Glue Reservoir: The oversized adhesive tank supports continuous production runs, cutting downtime for frequent reloading. Its internal auger-style mechanism distributes molten adhesive evenly across the board edge for a dependable bond.
4.Digital Hand-Crank Beam Adjustment: The pressure beam height is set using a manual crank paired with a digital position display, allowing quick, precise changes when switching between different panel thicknesses.
5.Rail-Guided Flush Trimming: A linear-guide-based end-cutting station removes overhanging edge material cleanly from both the leading and trailing board ends, leaving them perfectly flush.
6.High-RPM Fine Profiling: A bevel-oriented, high-speed motor paired with a durable alloy disc produces a scratch-free, uniformly contoured edge surface with easy adjustability.
7.Final Surface Polishing: A soft rotary buffing wheel provides a glossy finish to the sealed edge, improving visual appeal and creating a smooth-to-the-touch result.
The BHM START 300 is well-suited for the following manufacturing environments:
Small Board Processing Workshops: Handles straight-line edge banding on MDF, particleboard, plywood, and other composite panels with professional-grade results.
Start-Up Furniture Operations: Offers an affordable yet capable entry point for new businesses producing cabinets, shelving, and other case goods.
Custom Kitchen & Bathroom Cabinetry: Delivers durable, moisture-resistant edge seals for vanity units, sink bases, and wall cabinets.
Retail Display & Fixture Fabrication: Creates clean, attractive edges on store fixtures, shelving units, and point-of-purchase displays.
General Joinery Shops: Provides reliable edge finishing for a variety of custom woodworking projects, from built-in bookcases to reception counters.
Educational & Training Workshops: Its user-friendly controls and robust construction make it an ideal teaching tool for vocational woodworking programs.
