BHM388YJ Automatic Edge Banding Machine Providing Edge Application with Minimal Waste and Easy Maintenance for Woodworking Workshops

BHM388YJ Automatic Edge Banding Machine Providing Edge Application with Minimal Waste and Easy Maintenance for Woodworking Workshops

Brand Name:	BH
Model Number:	468YJ
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	2000Units/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao China

Certification:

Minimum Width:

50mm

Minimum Length:

70mm

Operating Air Pressure:

0.7Mpa

Edge Banding Thickness:

0.3~3mm

Dimension:

6570*900*1600mm

Weight:

2600kg

Packaging Details:

6570*990*1690mm

Highlight:

automatic edge banding machine for woodworking

edge banding machine with easy maintenance

edge banding machine minimal waste

Product Description

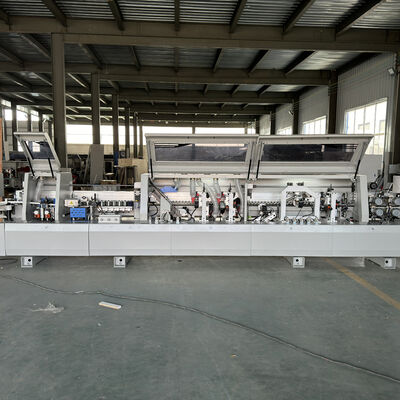

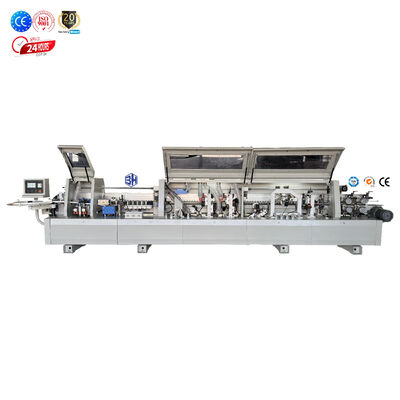

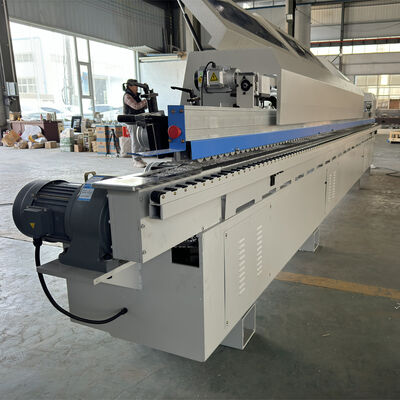

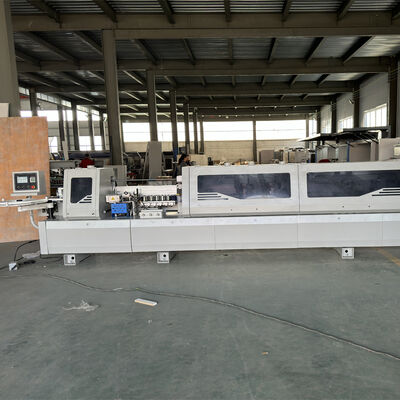

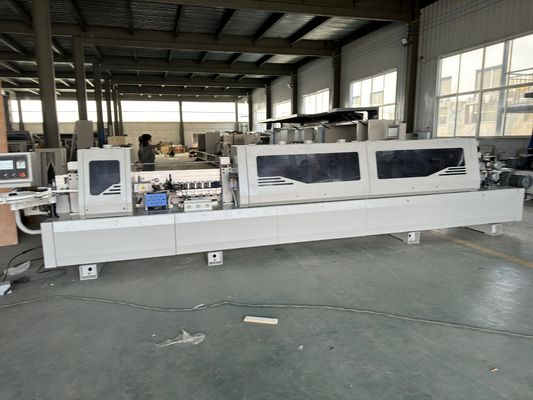

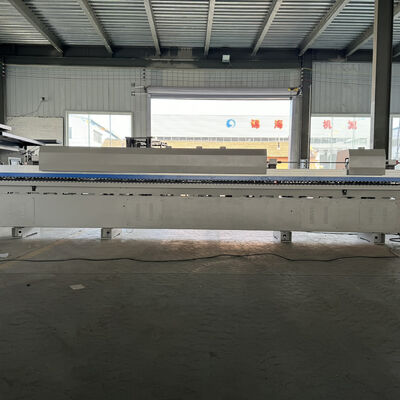

BHM388YJ Full Automatic Edge Banding Machine

The BHM388YJ heavy-duty edge bander is a multi-station woodworking machine designed for medium and large furniture factories with mass production demands. It integrates comprehensive processing stations: pre-milling, spiral glue coating, end cutting, rough trimming, fine trimming, corner rounding, contour scraping, flat scraping and buffing, finishing complete edge sealing in one feeding cycle.

The machine boasts a solid frame sized 6700×750×1500mm with adjustable conveyor speed of 18–24m/min. It runs at total power of 15.8kW under standard 0.7MPa working pressure. It supports boards 10–60mm thick and edge strips from 0.3mm to 3mm, and can process tiny workpieces with minimum 70mm length and 50mm width, compatible with MDF, plywood, solid wood, PVC and acrylic edge bands.

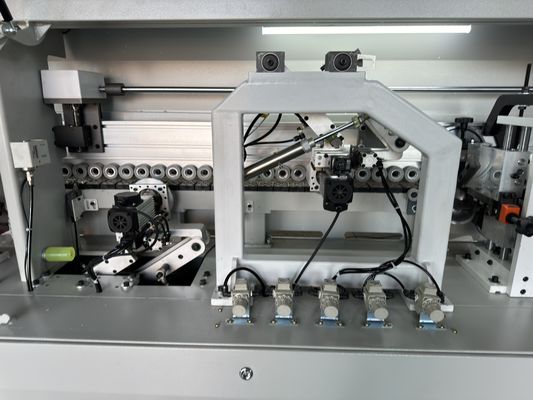

Core Processing Stations

Pre-milling: Twin milling cutters remove saw burrs, uneven edges and tilt marks on raw panels to guarantee tight glue bonding.
Spiral Glue Tank: Built-in spiral stirring evenly heats and spreads hot melt glue, delivering uniform coating and strong adhesion without overflow.

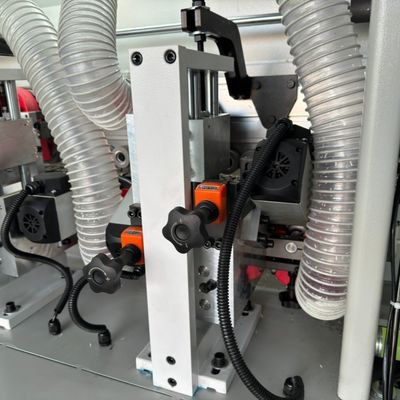

Dual Trimming & Corner Rounding: Rough trimming cuts excess edging preliminarily to reduce tool wear; high-speed fine trimming with alloy discs creates flat edges. The corner rounding unit shapes smooth, attractive rounded board ends.
Dual Scraping & Buffing: Contour scraping removes wave marks from cutting; flat scraping further polishes tiny uneven spots. The final buffing wheel eliminates glue traces for mirror-smooth edge finishes.

Technical Specifications

Specification	Value
Outline Dimension	6600×900×1600mm
Machine Weight	2600kg
Working Voltage	380V/50Hz
Total Power	17.9kw
Plate Thickness	10-60mm
Conveyor Speed	18-24m/min
Minimum Width	50mm
Minimum Length	70mm
Operating Air Pressure	0.7Mpa
Edge Banding Thickness	0.3-3mm

Stable Intelligent Control System

Equipped with PLC microcomputer control and high-precision encoder, the machine synchronizes all mechanical movements via timing control logic, featuring fast response, stable operation and low failure rates for long-hour continuous production.

Industry Applications

This full-automatic edge bander greatly cuts manual polishing work and improves finished furniture quality. It is ideal for mass production of wardrobes, cabinets, wooden doors and custom panel furniture. We provide complete operation manuals, free online video technical support and factory training services for global customers.

Frequently Asked Questions

What is an edge banding machine?

An edge banding machine is a woodworking tool used to apply edge materials--such as PVC, ABS, veneer, or melamine--to the raw edges of furniture panels, improving their appearance and durability.

What materials can the machine work with?

It can be used with various materials, including MDF (Medium Density Fiberboard), particleboard, plywood, solid wood panels, and acrylic or laminated boards. The edge banding can also vary in type and thickness, depending on your production needs.

What types of edge banding machines are available?

Common types include manual edge banding machines for small workshops, semi-automatic machines combining manual feeding with automatic gluing and trimming, fully automatic machines for industrial production lines, CNC edge banding machines for maximum precision, and laser edge banding machines for seamless, glue-free finishing.

What is the working process of an edge banding machine?

The process includes pre-milling to clean and smooth the panel edge, gluing to apply adhesive, banding to attach the band, end cutting to trim excess material, fine trimming for smooth edges, and scraping and buffing for a professional finish.

What kind of glue is used in edge banding?

Typically, EVA (Ethylene Vinyl Acetate) or PUR (Polyurethane Reactive) hot-melt adhesives are used. EVA glue is economical and easy to use, while PUR glue offers stronger bonding and higher resistance to heat and moisture, ideal for high-end applications.
