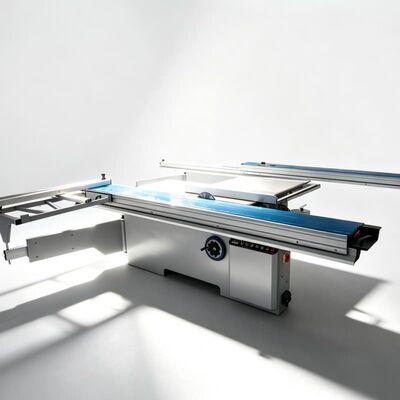

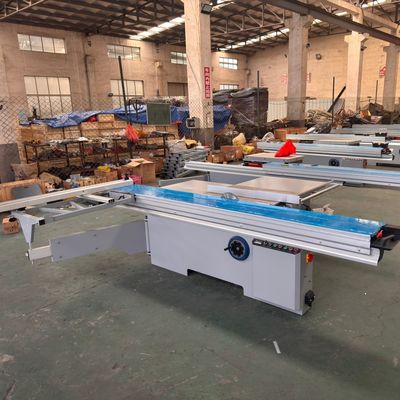

3200mm Furniture Wood Processing Panel Saw Machine 220V / 380V Wood Cutter

This sliding table panel saw is an industrial high-performance model built to deliver exceptional cutting precision and greater working efficiency. It comes with a stable 3200mm working travel and supports adjustable bevel cutting ranging from 0° to 45°. Powered by a heavy-duty 5.5kW main motor and a 1.1kW scoring motor, the machine runs the main saw at 4000–6000 RPM and the scoring saw at 7000–8000 RPM, ensuring clean, neat cuts for materials up to 70mm in thickness. It is upgraded with electric lifting for the main saw unit and a digital display for precise angle adjustment. We adopt a reinforced heavy frame weighing 750kg, constructed with 6mm side plates and a 16mm top plate, making this panel saw well suited for heavy-duty industrial cutting tasks.

• This industrial panel saw adopts an upgraded structural design to deliver superior stability and machining accuracy. It is fitted with a standard thickened sliding table sized 3200×375mm, alongside a heavy-duty steel frame with 6mm thick front and rear plates and a 16mm top plate. This reinforced structure greatly boosts overall rigidity and vibration absorption capacity, ensuring stable long-term operation.




  The machine is equipped with a high-power dual-motor system, consisting of a 5.5kW main motor and a 1.1kW scoring motor. The matched power configuration enables smooth, burr-free and chip-free cutting for diverse wood materials, meeting high-standard processing requirements.

  Multiple humanized advanced functions are integrated to optimize operation efficiency. The electric saw lifting structure supports fast and convenient height adjustment, while the digital display module realizes accurate 0-90° angle reading and positioning, effectively improving cutting precision and operational convenience.

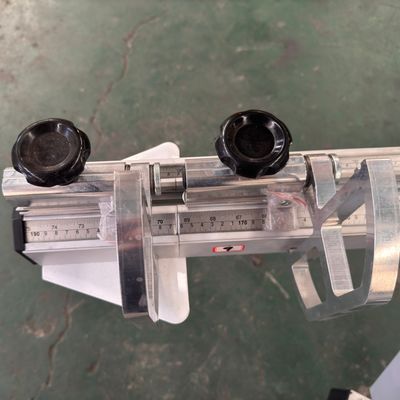

  It comes with a high-precision positioning fencing system. The longitudinal rip fence adopts a 45mm diameter solid chrome-plated shaft with an effective working length of 1500mm for flexible fine adjustment. Meanwhile, the 1850mm heavy-duty crosscut fence is equipped with two flip-stops, ensuring consistent and repeatable precise cutting results.




  The professional dust removal structure realizes efficient dust collection. The reserved 150mm bottom vacuum port and the follow-up saw blade dust hood can effectively collect and discharge cutting dust, keeping the working environment clean.




  Optimized operating accessories bring a better user experience. The upgraded fine-tuning handle features more sensitive control and comfortable hand feel, allowing operators to complete parameter adjustment more effortlessly. All electrical components adopt Delixi brand accessories, with stable quality and durable performance to support long-term industrial operation.

Product Application

Details display

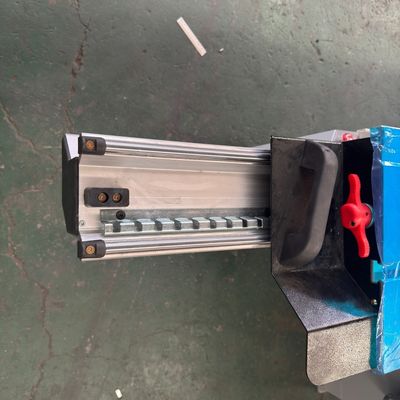

Standard thickened push table

Slide table size: 3200 * 375mm

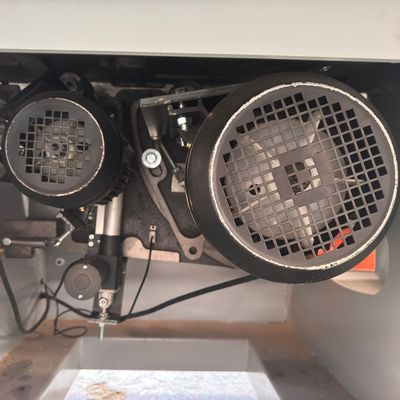

5.5 * 1.1kw high power

The motor is installed above the frame

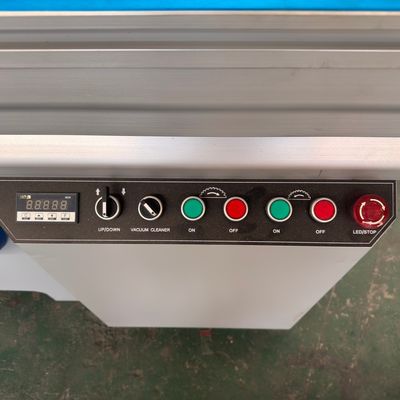

Accurate display from 0-90 °

Main saw rapid lifting and lowering
