Fully Automatic Dual Station CNC Nesting Machine 60m/Min Speed 3050x1830mm Processing Size

Name: Fully Automatic Dual Station CNC Nesting Machine 60m/Min Speed 3050x1830mm Processing Size
Brand: Qingdao Baihang Industry and Trade Co., Ltd
SKU: 1830A
Price: 6,500.00 USD
Availability: InStock

Brand Name:	BH
Model Number:	1830A
MOQ:	1
Price:	$5000 - $8000
Payment Terms:	T/T
Supply Ability:	3000sets /year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao,China

Certification:

Name:

1830 Dual - Station Automatic Tool Change CNC Nesting Machine

Size:

6900 × 2570 × 2100 Mm,Customized Size

Finish:

8-20Days

Control System:

Taiwan LNC-B

Tool Capacity:

12 Tools (Linear ATC)

Operating Voltage:

AC380/3PH/50HZ

Packaging Details:

3700*2250*2400mm

Highlight:

Dual Station CNC Nesting Machine

Automatic CNC Nesting Machine

Product Description

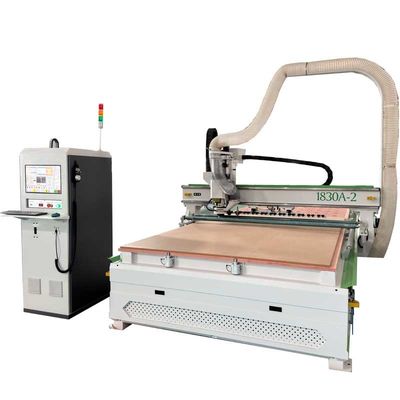

Fully Automatic 1830 Dual-Station Automatic Tool Change CNC Nesting Machine

Product Overview

The 1830A-2 is a professional-grade, dual-station CNC router engineered for high-volume, high-mix production. It seamlessly combines the heavy-duty processing power needed for cabinet boxes with the high-speed precision required for intricate door carving. Featuring a robust construction, a 9KW ATC spindle, and a 12-tool automatic changer, it is the perfect all-in-one machine for modern woodworking shops aiming to maximize efficiency and output quality.

Technical Specifications

Component	Specification
Machine size	6900 * 2570 * 2100 mm
Processing Size (per station)	3050 * 1830 * 18 mm
Running Speed	60m/min
Drive type	X/Y rack; Z screw
Table structure	Partitioned vacuum adsorption table
Spindle power	9kw
Spindle speed	18000~24000r/min
Maximum operating speed	20m/min
Operating voltage	AC380/3PH/50HZ
Tool Capacity	12 Tools (Linear ATC)

Customization Available: Models and configurations can be customized to customer requirements. Please contact our team for specific pricing based on your desired configuration.

Key Features

Dual-Station & High Efficiency: Process two standard-sized panels (3050x1830mm each) independently. The exclusive "Start-from-Behind" function allows the operator to load a sheet at the rear and start the job immediately, drastically reducing non-cutting time.
Powerful ATC System: Equipped with a robust 9KW air-cooled spindle (18,000-24,000 RPM) and a patented 12-tool linear automatic tool changer. This large capacity is ideal for complex jobs requiring multiple tools for both cabinets and doors, minimizing setup time.
Unmatched Stability & Precision: The machine features a welded steel frame, reinforced steel gantry with cast iron columns, and is stress-relieved through annealing and vibration aging. Critical surfaces are milled by a 5-face machining center, ensuring long-term accuracy of ± 0.05mm.
Advanced Drive & Control System: Powered by custom 1.5KW Servo motors and a high-precision 1.5M P&C rack-and-pinion drive on X/Y axes, ensuring high-speed (up to 60m/min rapid) and accurate movement. Controlled by the user-friendly Taiwan LNC-B system.
Superior Component Quality: Built with top-tier components for reliability, including Japanese Shimpo reducers, Taiwan steel linear guides (25mm), a Taiwan Fuling inverter, and a centralized automatic lubrication system.
Enhanced Productivity Software: Features like "Rapid Plunge" for faster drilling and "Program Queue Processing" allow you to line up multiple jobs for unattended operation, significantly boosting overall equipment effectiveness (OEE).
Excellent Dust & Vacuum System: The patented dust cover ensures a clean working environment, effectively capturing even slot-cutting dust. An optional air-blowing version enables truly dust-free cutting. The powerful 11KW vacuum pump provides strong holding force to prevent small parts from shifting.

Enhanced Functionality

Combines door panel and cabinet machining capabilities
Rapid plunge function for efficient drilling operations
Form sequencing processing for batch program execution
Rear-start function for convenient operation from loading position

Frequently Asked Questions

Q1: Can customized services be supported?

A1: Yes, we can customize the color, size and logo you need.

Q2: Where is your factory located?

A2: We are a Chinese manufacturer in Qingdao city, Shandong province.

Q3: Can you make the machine according to my design or prototype?

A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.

Q4: Is this machine easy to operate for first-time users?

A4: We provide guide videos and English instruction manuals with the machine, plus free professional guidance until you can operate proficiently.

Q5: What's your MOQ and delivery terms?

A5: Minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for accurate shipping rates.

Q6: How is your after-sales service?

A6: Our sales team is available 24/7. We provide overseas installation services and free online training.

Q7: What if my machine needs repair?

A7: We offer free online support. For major issues during warranty period, we provide repair services.
