| Brand Name: | BaiHang |
| Model Number: | BH1325M |
| MOQ: | 1 |
| Price: | $2000 - $2400 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

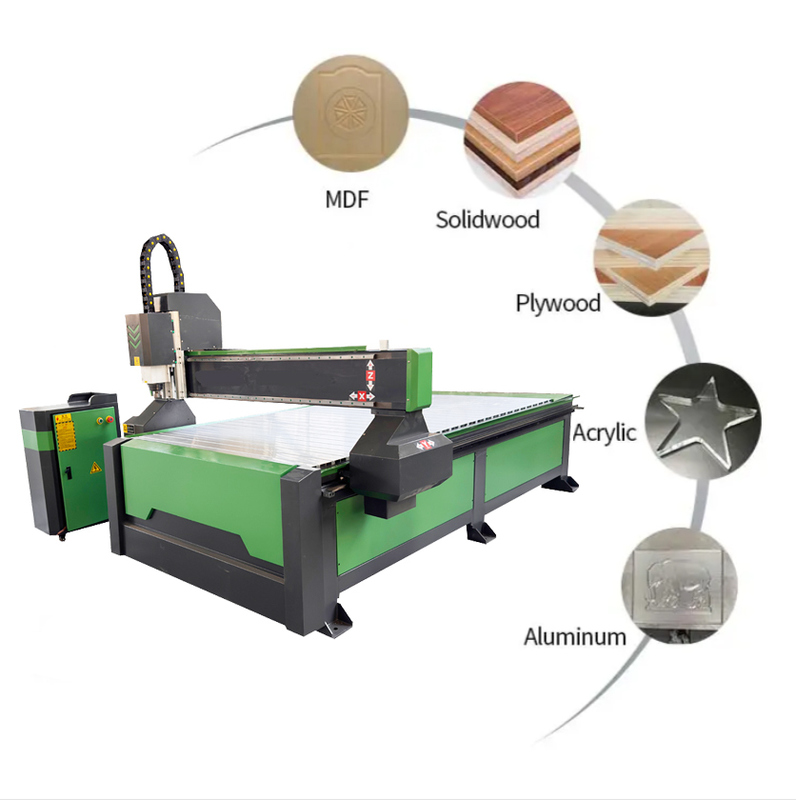

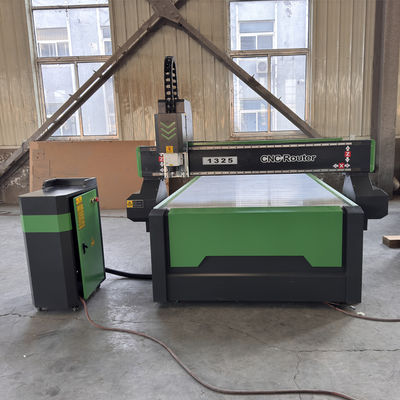

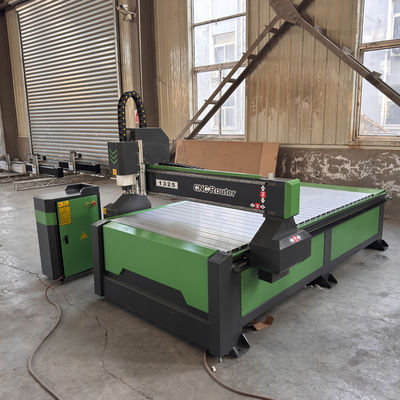

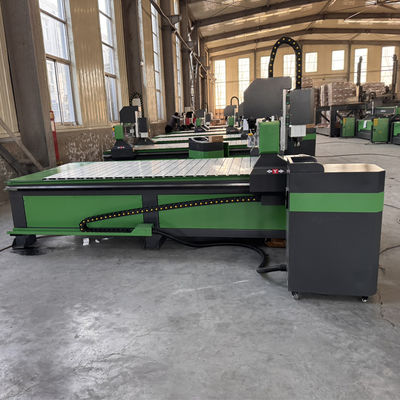

Model 1325: The Professional Choice for Panel Processing
Built to Last: Engineered with a square tube welded bed, thickened steel gantry, and cast iron columns for unwavering stability under heavy loads.
Precision Engineered: Achieves machining accuracy of ±0.05mm, powered by a 6.0KW air-cooled spindle and a high-precision rack-and-pinion transmission system.
Optimized Workflow: Features a 1300x2500mm table designed for standard boards, with an aluminum profile + PVC surface for efficient handling.
Power & Control: Integrates Chuangwei stepper motors and Skyworth drives, all managed by the intuitive JM Weihong OS within an independent control cabinet.
Reliable Value: A cost-effective solution renowned for its durable construction and supported by exceptional after-sales service.
| Component | Specification |
|---|---|
| Fuselage structure | Square tube welded bed body, detachable |
| Longmen structure | Thickened square steel gantry, cast iron columns |
| Mesa structure | Aluminum profiles+PVC, vertical laying of profiles |
| Body size | 3100*2000*1750mm |
| Table size | 1300*2500mm |
| Effective work schedule | 1.3mX2.5m (standard board size) |
| Machining accuracy | 0.05mm |
| Transmission structure | Three axis 20 square track and slider |
| Rack | 1.25m high-precision gear rack |
| Z-axis component | Drive belt+gear transmission |
| Motor set | Chuangwei 450B stepper motor |
| Driver | Skyworth 860 Drive |
| Spindle power | 6.0KW air-cooled spindle, speed 24000 RPM |
| Frequency converter | Zhuzhou 7.5KW frequency converter |
| Operating system | JM Weihong |
| Cabinet | Independent chassis control cabinet |
| Machine color | Grayish green |
| Working voltage | 380/220V 50Hz |
| MACHINE PARTS Brand: BH Origin: China Features: long lifespan, low noise, free maintenance |
|
| MAIN FEATURES Three-axis 20 square rail and slider Brand: BH Origin: China Features: fast running speed and strong bearing capacity |
|
| MACHINE PARTS Name: T-slotTable Brand: BH Origin: China Features: much more economic |
|
| MAIN FEATURES Origin: China Name: independent control cabinet Features: easy to operate and simple to control |
|
Worktable: Comprises an aluminum profile surface with a PVC protective base, combining high load-bearing capacity with enhanced durability.
Drive System: Utilizes a high-quality stepping motor and cutting head, optimized for longevity, high rotational speeds, and low-noise operation.
Frame Structure: The gantry is built from 10mm thick heat-treated square steel, providing the structural rigidity necessary for smooth motion and high precision.
Cable Management: Employs a wear-resistant drag chain with dedicated pathways for signal and power lines, preventing interference and ensuring tangle-free movement.
