| Brand Name: | BaiHang |
| Model Number: | BH1325M |
| MOQ: | 1 |
| Price: | $2000 - $2400 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |
| Component | Specification |
|---|---|
| Fuselage structure | Square tube welded bed body, detachable |
| Longmen structure | Thickened square steel gantry, cast iron columns |
| Mesa structure | Aluminum profiles+PVC, vertical laying of profiles |
| Body size | 3100*2000*1750mm |
| Table size | 1300*2500mm |
| Effective work schedule | 1.3mX2.5m (standard board size) |
| Machining accuracy | 0.05mm |
| Transmission structure | Three axis 20 square track and slider |
| Rack | 1.25m high-precision gear rack |
| Z-axis component | Drive belt+gear transmission |
| Motor set | Chuangwei 450B stepper motor |
| Driver | Skyworth 860 Drive |
| Spindle power | 6.0KW air-cooled spindle, speed 24000 RPM |
| Frequency converter | Zhuzhou 7.5KW frequency converter |
| Operating system | JM Weihong |
| Cabinet | Independent chassis control cabinet |
| Machine color | Grayish green |
| Working voltage | 380/220V 50Hz |
| MACHINE PARTS Brand: BH Origin: China Features: long lifespan, low noise, free maintenance |
|
| MAIN FEATURES Three-axis 20 square rail and slider Brand: BH Origin: China Features: fast running speed and strong bearing capacity |
|
| MACHINE PARTS Name: T-slotTable Brand: BH Origin: China Features: much more economic |
|
| MAIN FEATURES Origin: China Name: independent control cabinet Features: easy to operate and simple to control |
|

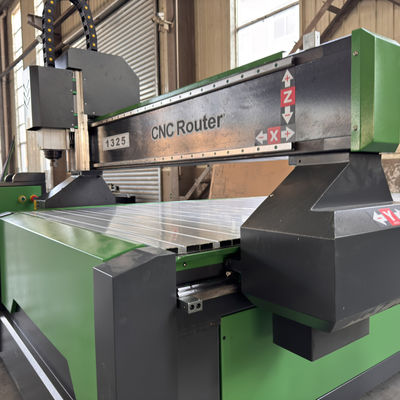

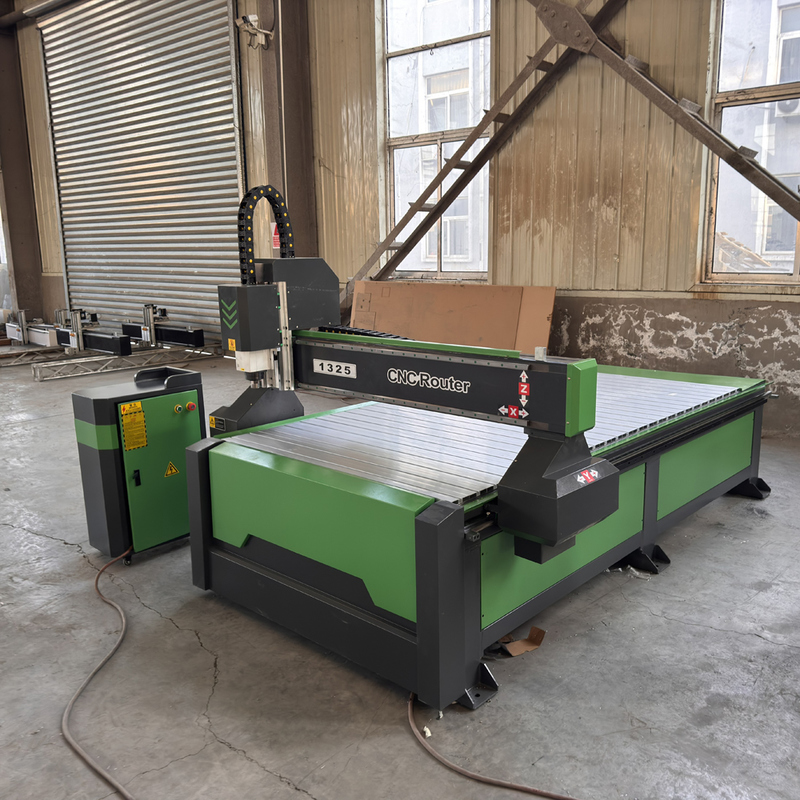

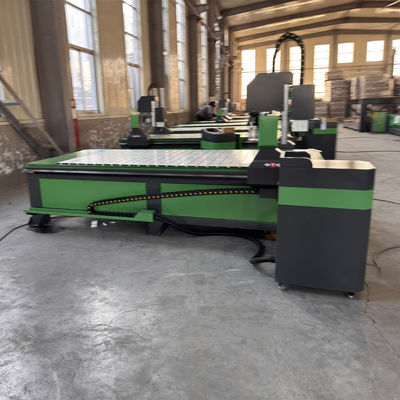

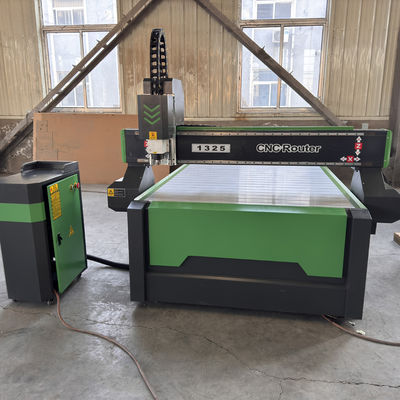

Body and Frame
The machine features a welded square tube frame that can be taken apart if needed. The gantry is made from thick square steel and supported by cast iron columns, which improves overall strength and reduces vibration during operation. This design ensures smooth movement and high machining accuracy.
Worktable
The work surface is made from aluminum profiles with a PVC cover. This combination offers excellent load-bearing capacity and protects the aluminum from damage. The table size is 1300×2500 mm, perfect for handling standard-sized sheets.
Performance and Accuracy
The BHM1325M offers an effective working area of 1.3×2.5 meters and maintains a machining accuracy of up to 0.05 mm. It uses a 6.0KW air-cooled spindle that runs at 24,000 RPM, allowing it to work on a variety of materials with ease.
Transmission System
All three axes use 20-series square rails and sliders for smooth and steady motion. The rack is a high-precision 1.25-meter gear rack, and the Z-axis uses a belt and gear drive system for accurate vertical movement.
Motor and Drive
The machine is equipped with a Chuangwei 450B stepper motor and a Skyworth 860 drive system, offering reliable power and control. A Zhuzhou 7.5KW frequency converter helps maintain stable spindle operation.
Electrical Components
Key electrical parts are from Schneider Electric, known for their durability and resistance to interference, moisture, and impact. This ensures the machine runs safely and stably over long periods.
Additional Features
Automatic Oil Lubrication: The built-in oiling system regularly lubricates the rails and screws, extending their service life.
Wear-Resistant Drag Chains: These keep power and signal cables separated and protected from interference and tangling.
Control System: The router uses a user-friendly JM Weihong operating system and comes with a separate control cabinet.
Power Supply: It operates on 380V/220V, 50Hz power.
