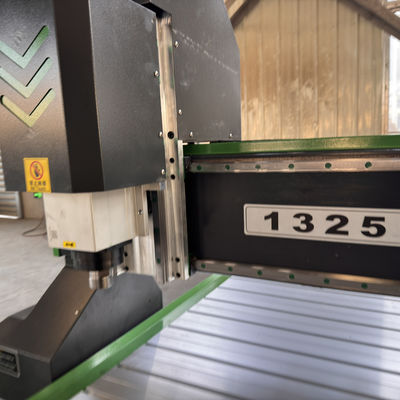

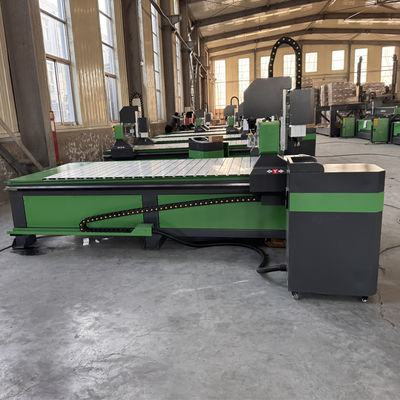

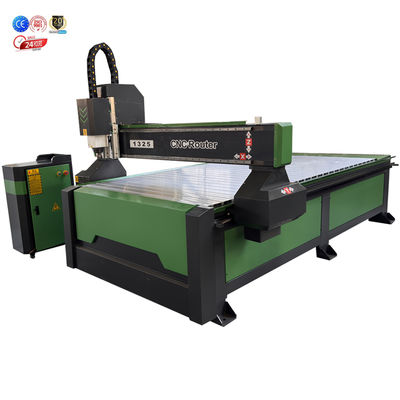

1325 Precision MDF Plywood CNC Router For Kitchen Cabinet Doors Furniture Carving

1325 Precision MDF Plywood CNC Router For Kitchen Cabinet Doors Furniture Carving

Brand Name:	BaiHang
Model Number:	BH1325M
MOQ:	1
Price:	$2000 - $2400
Payment Terms:	T/T
Supply Ability:	3000sets /year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao ,China

Certification:

Document:

BHM1325M.pdf

Product Name:

CNC Wood MDF Furniture Carving CNC Router Woodworking Machine

Place Of Origin:

Shandong, China

Brand Name:

Work Table:

T Slot Combined Vacuum Work Table

Application:

Kitchen Cabinet Doors Furnitures Making

Keywords:

CNC Wood MDF Furniture Carving CNC Router

Key Selling Points:

Easy To Operate,High-accuracy

Working Area:

3100*2000*1750mm/Customized

Cabinet:

Furniture, Doors And Cabinets Industry

Spindle Power:

6.0KW Air-cooled Spindle,speed 24000 RPM

Packaging Details:

3310*2250*1030mm

Highlight:

MDF Plywood CNC Router

Furniture Carving Plywood CNC Router

Precision MDF CNC Router

Product Description

Factory Direct Delivery 1325 MDF Plywood CNC Router

Product Overview

This CNC router combines rugged construction with an advanced PC-based control system, engineered for reliability and precision. The controller delivers powerful functionality, cost-effectiveness, and is supported by exceptional after-sales service.

Technical Specifications

Component	Specification
Fuselage structure	Square tube welded bed body, detachable
Longmen structure	Thickened square steel gantry, cast iron columns
Mesa structure	Aluminum profiles+PVC, vertical laying of profiles
Body size	310020001750mm
Table size	1300*2500mm
Effective work schedule	1.3mX2.5m (standard board size)
Machining accuracy	0.05mm
Transmission structure	Three axis 20 square track and slider
Rack	1.25m high-precision gear rack
Z-axis component	Drive belt+gear transmission
Motor set	Chuangwei 450B stepper motor
Driver	Skyworth 860 Drive
Spindle power	6.0KW air-cooled spindle, speed 24000 RPM
Frequency converter	Zhuzhou 7.5KW frequency converter
Operating system	JM Weihong
Cabinet	Independent chassis control cabinet
Machine color	Grayish green
Working voltage	380/220V 50Hz

Special reminder: Different customers can customize models and configurations according to their needs. Due to product variety, orders require prepayment. We provide quotations based on customer requirements. Please confirm actual pricing with our staff according to product model configuration.

Key Features

MACHINE PARTS Brand: BH Origin: China Features: long lifespan, low noise, free maintenance
MAIN FEATURES Three-axis 20 square rail and slider Brand: BH Origin: China Features: fast running speed and strong bearing capacity
MACHINE PARTS Name: T-slot Table Brand: BH Origin: China Features: much more economic
MAIN FEATURES Origin: China Name: independent control cabinet Features: easy to operate and simple to control

Aluminum profile with PVC countertop: Large aluminum profile surface provides stable load-bearing capacity, with PVC base protecting the aluminum profile.
Stepping motor: High-quality spindle and cutting head enable long operation time, reduced losses, fast bearing speed, and low noise.

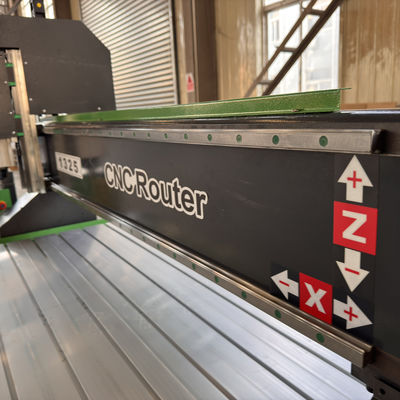

Square steel gantry frame: 1cm thick heat-treated square steel gantry frame ensures good rigidity, smooth operation, and high machine accuracy.
Drag chain: New wear-resistant drag chain with separated signal and power lines prevents signal interference and eliminates cable distortion during operation.

Applications

Woodworking Industry:

Processing of panel sheets and solid wood wave boards
Manufacturing of screens and sash windows
Cutting and engraving of wooden doors and cabinet doors
Engraving of decorative and paint-free wooden gates
Auxiliary processing for various furniture products

Other Industries:

Production of advertising signs and logos
Acrylic cutting and plastic vacuum forming for advertising displays
Fabrication of architectural models, wood patterns, propeller prototypes, and foam vehicle molds
Carving of 3D surfaces for musical instruments (e.g., violins, Erhu)
External cutting, pattern engraving, and inscription marking on instruments
Various shadow carvings and bas-reliefs for the craft and gift industry

Frequently Asked Questions

Q1: Can customized services be supported?

A1: Yes, we can customize the color, size and logo you need.

Q2: Where is your factory located?

A2: We are a Chinese manufacturer in Qingdao city, Shandong province.

Q3: Can you make the machine according to my design or prototype?

A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.

Q4: This is the first time I use this kind of machine, is it easy to operate?

A4: We provide guide videos and English instruction manuals with the machine. Our team offers free professional guidance until you can operate the machine proficiently.

Q5: What's your MOQ and delivery?

A5: Minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for the best shipping rates and machine pricing.

Q6: How is your after sales service?

A6: Our sales team is available 24/7. We also provide overseas installation services.

Q7: If my machine is broken, can you repair it for me?

A7: Yes. We offer free online training. For major issues during warranty period, we provide repair services.
