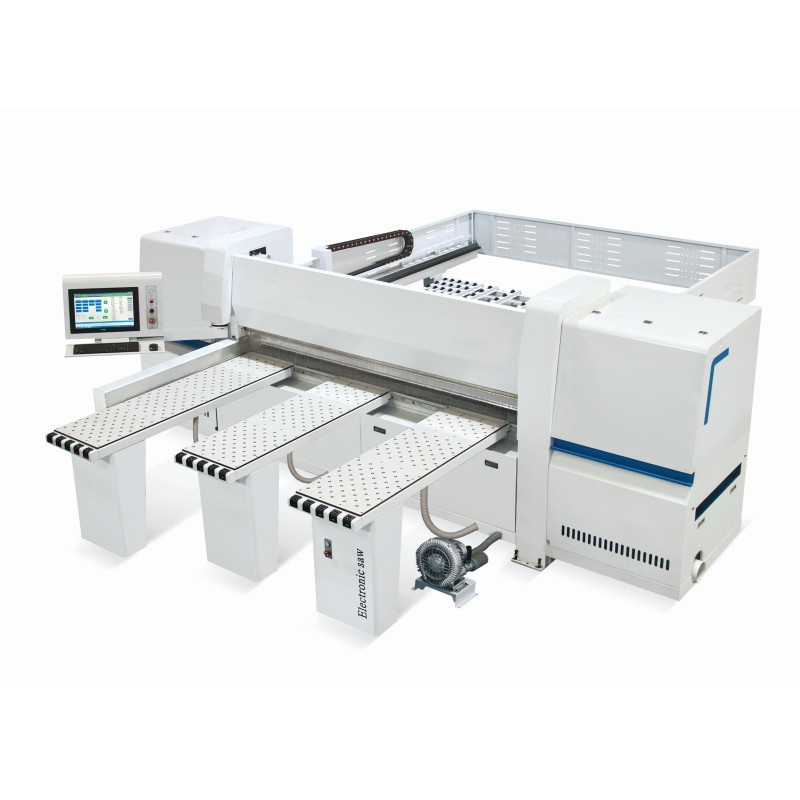

Customizable Industrial CNC Beam Saw 26kw 380V High Precision 100MM Working Thickness

Customizable Industrial CNC Beam Saw 26kw 380V High Precision 100MM Working Thickness

Brand Name:	BaiHang
Model Number:	BHMNP330B
MOQ:	1
Price:	$18000 - $20500
Payment Terms:	T/T
Supply Ability:	3000sets /year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao ,China

Certification:

Working Thickness:

100MM

Place Of Origin:

Shandong, China

Application:

Kitchen Cabinet Doors Furnitures Making

Power(w):

26kw

Voltage:

380 Volts, 3-phase, 50 Hertz

Machine Size:

5900x6200x1800mm

Packaging Details:

3920*940*1210mm*2

Highlight:

Customizable CNC Beam Saw

CNC Beam Saw 26kw

Industrial Beam Saw 380V

Product Description

Customizable Computer Beam Saw High-End Carpentry Tailored Cutting Solutions

This high-precision computer beam saw is designed for processing materials including acrylic, PVC board, particle board, multi-layer board, medium dry board, density board, chipboard, artificial stone board, external wall calcium silicate board, and paperboard. Featuring linear guide rails for both main saw and feeding rack, it delivers exceptional precision unaffected by environmental conditions or magnetic fields.

Key Advantages

Precision sawing with ±0.2mm accuracy and 0.02mm servo positioning
Advanced dust collection system with near 100% efficiency
Robotic arm structure enables cutting down to 30×50mm
Dual speed control options: servo motor and frequency converter
Integrated fault detection with automatic shutdown
Visual sawing inspection system
Intelligent cutting optimization software for material efficiency

Premium Components

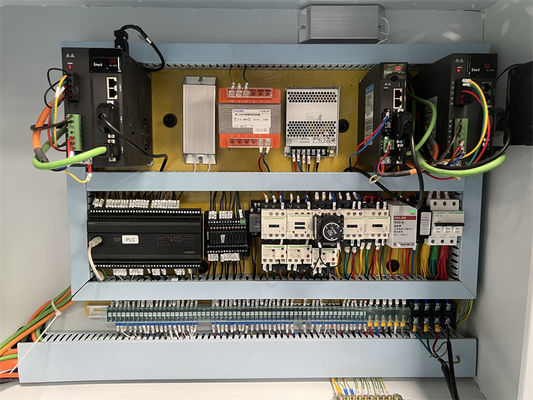

Taiwan YANHONG (FATEK) control system
INVT Servo and Frequency Converter
Schneider Electric components

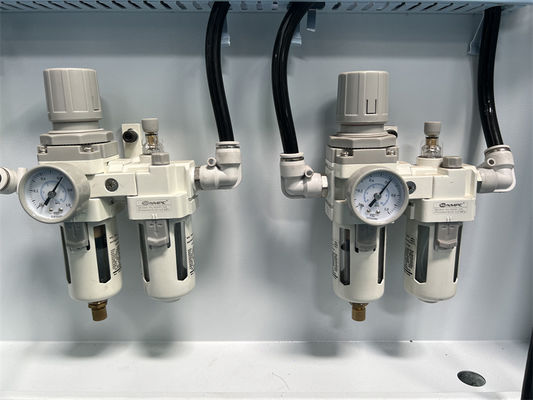

Taiwan Airtac Pneumatic Solenoid Valves
High-quality flexible robot cables for extended service life
Dual-treated welded frame (electromagnetic aging and annealing) for permanent stability

Equipment Workflow

Material loading (manual or automatic)
Dimension input
Automatic clamping
Precision positioning and edge alignment
Automatic sawing operation
Barcode scanning and labeling
Complete cutting cycle

Technical Specifications

Parameter	Specification
Main motor power	16.5kw (18.5KW optional)
Maximum sawing width	2750mm / 3300mm
Maximum sawing length	2600mm / 3300mm
Maximum sawing thickness	100MM
Minimum cutting size	40mm (longitudinal), 5mm (transverse)
Sawing accuracy	±0.2mm
Main saw blade diameter	φ350mm (Max φ400mm)
Sawing speed	0-80 meters/minute
Total power	26kw (Optional 28kw)

Advanced Features

Circular guide rails prevent slot jamming and dust adhesion

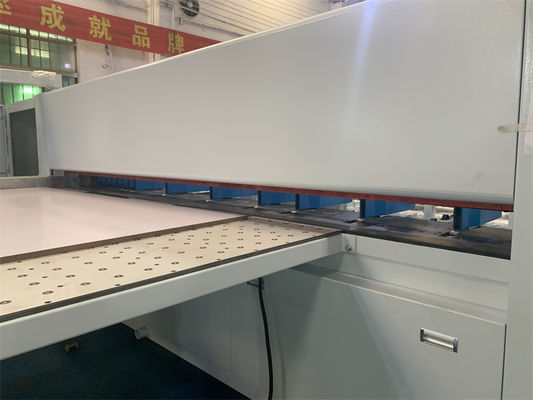

Pneumatic floating ball table for effortless material handling
Automatic sawing stroke positioning reduces idle time
User-friendly control interface with troubleshooting guidance
ERP-compatible software integration
Rubber-coated pressing blocks for durability
±0.1mm positioning accuracy with servo-controlled robotic arm
Opposed saw blade configuration for flawless cut quality

Frequently Asked Questions

Q1: Can customized services be supported?

A1: Yes, we can customize the color, size and logo you need.

Q2: Where is your factory located?

A2: We are a Chinese manufacturer in Qingdao city, Shandong province.

Q3: Can you make the machine according to my design?

A3: Yes. Our professional designers will create the optimal production plan for your requirements.

Q4: Is the machine easy to operate for beginners?

A4: We provide instructional videos and manuals, plus free professional guidance until proficiency.

Q5: What's your MOQ and delivery terms?

A5: Minimum order is 1 set, shipped directly to your designated port.

Q6: How is your after-sales service?

A6: 24/7 support with optional overseas installation services.

Q7: What about repairs during warranty?

A7: Free online training and repair services for warranty issues.

Contact us immediately for more product information! Special reminder: Custom configurations available. Orders require prepayment - please confirm pricing with our staff based on your specific requirements.
