| Brand Name: | BaiHang |
| Model Number: | BHMNP330B |
| MOQ: | 1 |
| Price: | $18000 - $20500 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

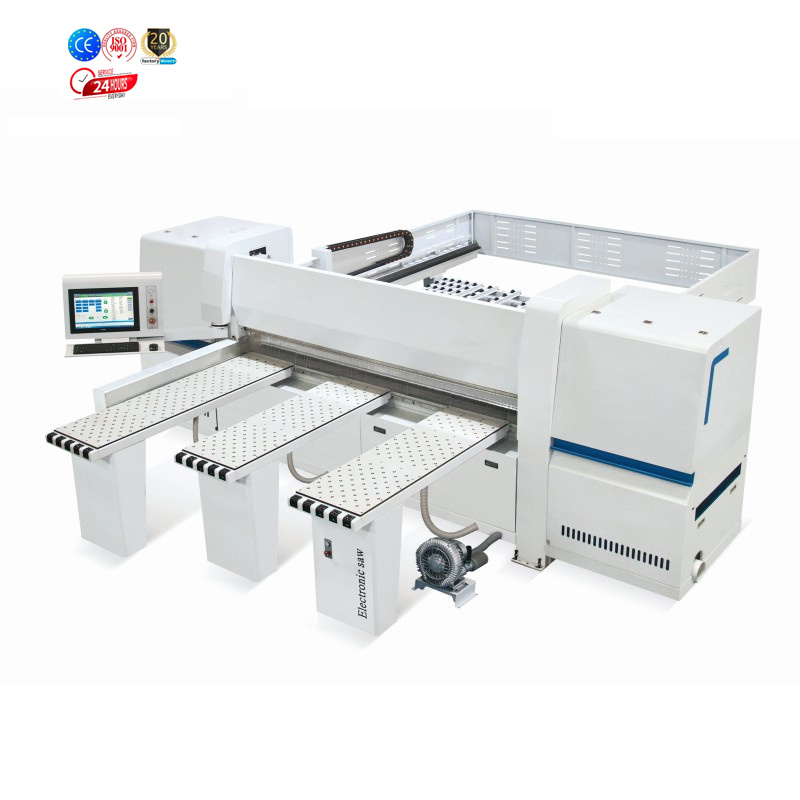

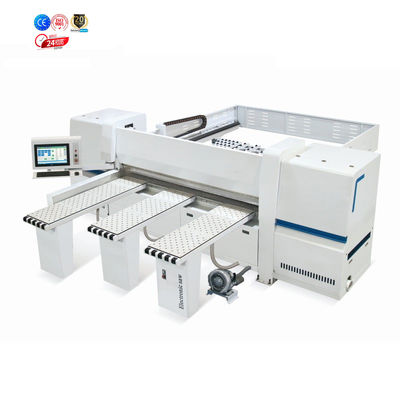

This modern wood cutting machine makes panel processing simple and efficient. It's perfect for furniture factories, cabinet shops, and wood product manufacturers who need accurate cuts every time.
Easy Automated Operation
The machine handles most work automatically. You just place the panel on the table, start the clamping system, and press begin. The machine takes care of the rest:
Finding the right position
Cutting to exact sizes
Moving finished pieces out
Key Benefits
Strong Build: Made with thick steel that keeps its shape over time, ensuring long-term accuracy.

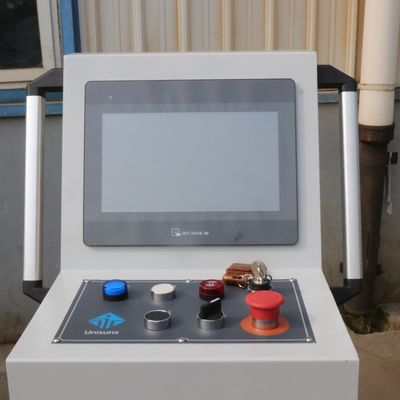

Simple Controls: The clear display makes it easy to set up cutting plans and check for problems. It works well with many design programs.
Precise Movement: Quality motors and controls make sure the saw moves exactly where needed for perfect cuts.
Easy Material Handling: The special table uses air to help panels float on small balls, letting workers move heavy materials easily.
Reliable Cutting System: The powerful motor and saw work smoothly together, with sensors that prevent problems.
Good Safety Features: Includes safety systems that help protect operators during work.
Extra Features Available
Smart Software: Optional software helps plan cuts to save material, manage orders, and print labels.
Side Pushing Device: Special attachment for handling smaller panels more efficiently.

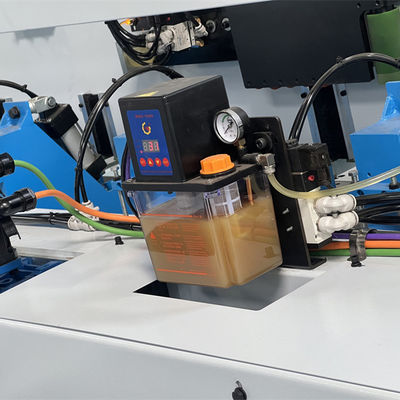

Automatic Lubrication: The machine oils its own rails regularly to keep everything running smoothly.
| Specification | Value |
|---|---|
| Main Saw Motor Power | 15 kW |
| Scoring Saw Motor Power | 2.2 kW |
| Maximum Cutting Length | 3300 mm |
| Maximum Cutting Thickness | 100 mm |
| Maximum Cutting Width | 3300 mm |
| Servo Positioning Accuracy | ±0.02 mm |
| Cutting Accuracy | ±0.1 mm |
| Main Saw Blade Diameter | 350 mm |
| Main Saw Speed | 4800 rpm |
| Traction Motor Power | 1.5 kW |
| Cutting Speed | 0-100 m/min |
| Air Pressure | 0.6-0.7 MPa |
| Air Floatation Table Size | 1800x520 mm |
| Overall Machine Dimensions | ~5860x5760x1800 mm |
| Total Power | ~23 kW |
| Display | 19-inch |
