| Brand Name: | BaiHang |
| Model Number: | BHMNP330B |
| MOQ: | 1 |
| Price: | $18000 - $20500 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

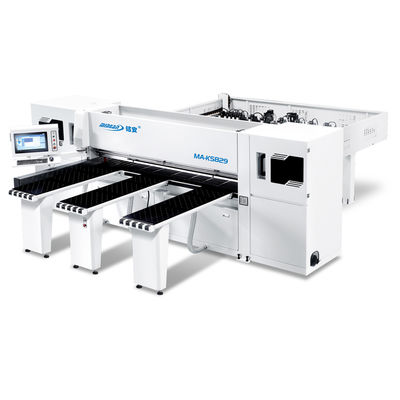

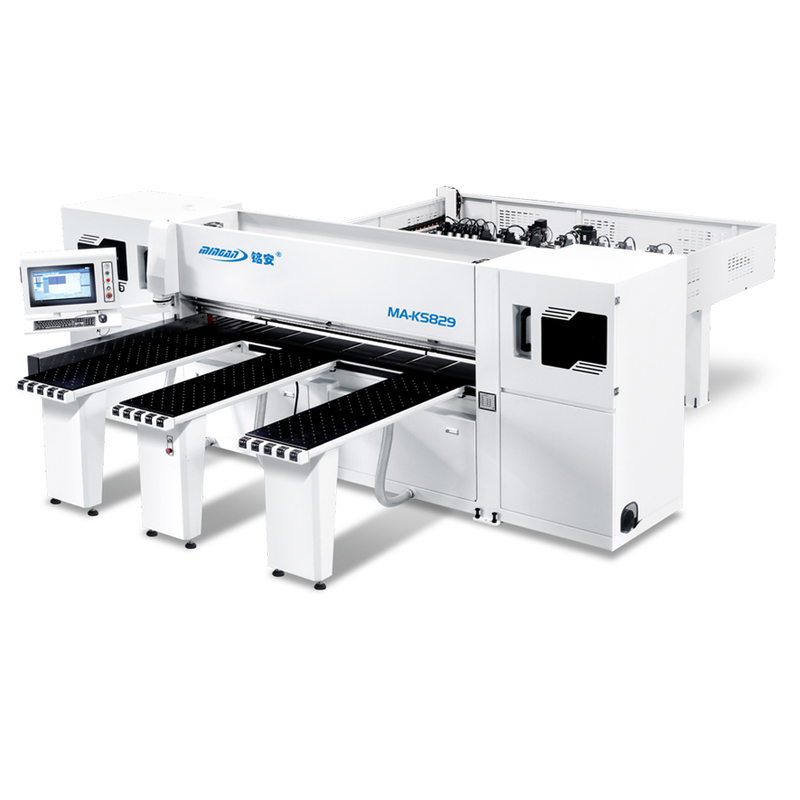

The 3300L CNC Beam Saw is a practical and efficient solution for woodworking shops that need accurate panel cutting. It automates the cutting process to save time and reduce errors, making it ideal for furniture manufacturing, cabinet making, and other panel processing tasks.
Easy Operation
Using this machine is simple. Place the panel on the table, press start, and the machine does the rest. It automatically clamps, positions, aligns, cuts, and unloads the material based on your design data. This means less manual work and more consistent results.
Solid Construction
The machine is built to last. Its main structure uses 18mm steel formed into strong square tubes, and it has been heat-treated to prevent warping over time. This sturdy design ensures the machine stays accurate even with daily use.
Key Features
Powerful Cutting: Equipped with a 16.5kW main motor and a scoring saw, it can cut panels up to 85mm thick.
Accurate Positioning: The INVT servo system provides precise control, with a positioning accuracy of 0.02mm and cutting accuracy within ±0.2mm.

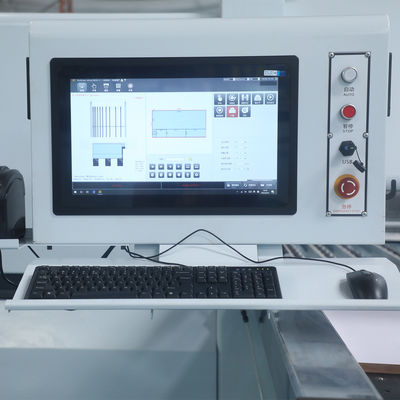

User-Friendly Control: The Fatek PLC and 19-inch touch screen make it easy to operate. The system includes clear guides and error alerts.
Smooth Movement: Taiwan Yinchuang linear guides ensure the machine moves smoothly and quietly.

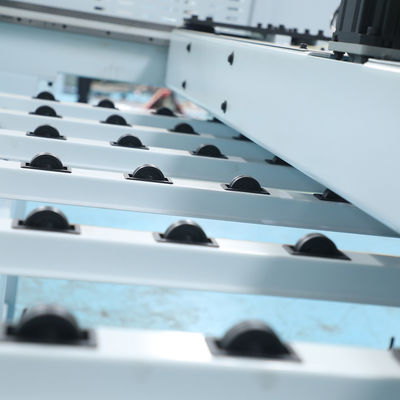

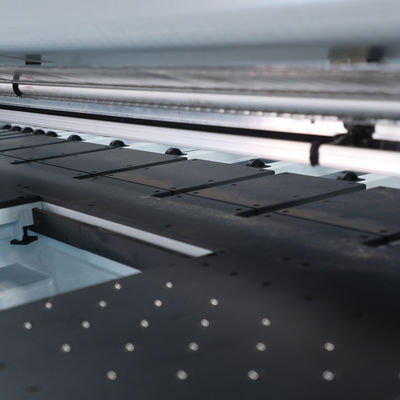

Easy Material Handling: The air flotation table lets you move heavy panels easily, and the pneumatic clamps hold them securely during cutting.
Low Maintenance: The automatic oiling system keeps the rails lubricated for smooth operation.
Technical Specifications
Max Cutting Length: 3200mm
Max Cutting Width: 3300mm
Max Cutting Thickness: 85mm
Saw Blade Diameter: 360mm (outer)
Cutting Speed: 0-100 m/min
Machine Power: 24.5kW
Machine Dimensions: 5030x5800x1900mm
Trusted Components
We use reliable brands for key parts, including:
PLC: Taiwan Fatek
Servo System: INVT
Linear Guides: Taiwan Yinchuang Technology
Electrical Components: Schneider
Pneumatic Parts: Easun
| Main and scoring saw power | 16.5kw |
| Maximum cutting length | 3200mm |
| Maximum cutting thickness | 85mm |
| Maximum sawing width | 3300mm |
| Minimum cross-cutting board size | 5mm |
| Minimum board size for vertical cutting | 40mm |
| Positioning method | Automatic |
| Servo positioning accuracy | 0.02mm |
| Sawing accuracy | ±0.2mm |
| Main saw blade outer diameter | 360mm |
| Main saw blade inner diameter | 30mm |
| Main saw speed | 4800r/min |
| Saw car servo motor | 2KW |
| Robot servo motor | 2kw |
| Cutting speed | 0-100 m/min |
| Return speed | 120 m/min |
| High pressure blower | 4KW |
| Air pressure | 0.6-0.8MPA |
| Air flotation table specifications | 1750*540mm |
| Machine tool dimensions | 5030x5800x1900m |
| Power | 24.5KW |
