Fully Automatic Dual Table CNC Nesting Machine With Seamless Alternating Machining

Name: Fully Automatic Dual Table CNC Nesting Machine With Seamless Alternating Machining
Brand: Qingdao Baihang Industry and Trade Co., Ltd
SKU: 1830A
Price: 6,500.00 USD
Availability: InStock

Brand Name:	BH
Model Number:	1830A
MOQ:	1
Price:	$5000 - $8000
Payment Terms:	T/T
Supply Ability:	3000sets /year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao,China

Certification:

Name:

1830 Dual - Station Automatic Tool Change CNC Nesting Machine

Size:

6900 × 2570 × 2100 Mm,Customized Size

Finish:

8-20Days

Control System:

Taiwan LNC-B

Tool Capacity:

12 Tools (Linear ATC)

Operating Voltage:

AC380/3PH/50HZ

Packaging Details:

3700*2250*2400mm

Highlight:

Fully Automatic CNC Nesting Machine

3PH CNC Nesting Machine

Product Description

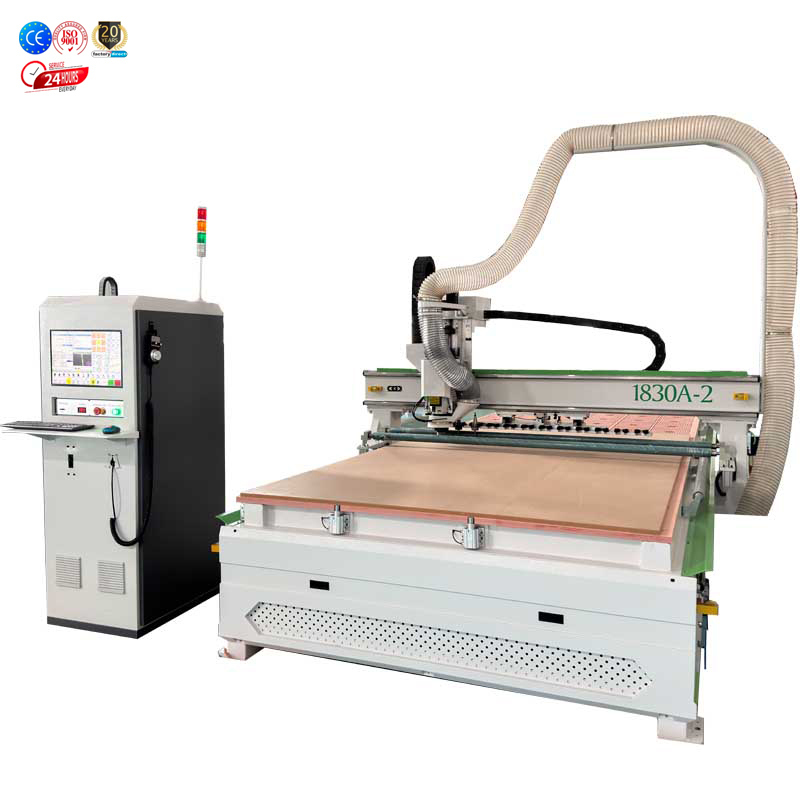

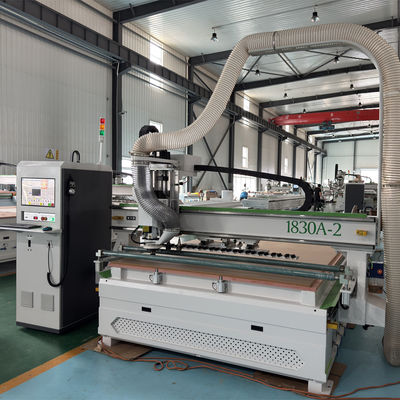

Fully Automatic 1830 Dual-Station Automatic Tool Change CNC Nesting Machine

Product Overview

The 1830A-2 Dual-Table Automatic Tool Change (ATC) Nesting Machine is more than just a piece of equipment; it is a highly efficient production cell. Its innovative dual-worktable design completely eliminates machine downtime for loading and unloading, propelling your panel processing productivity to new heights. It is the ideal solution for furniture manufacturers and panel processors seeking large-scale, continuous production capabilities.

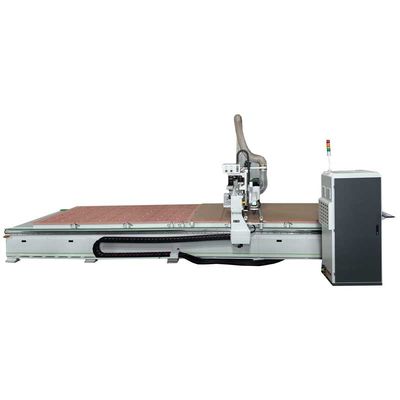

Core Advantage: Dual-Table Synergy, Doubled Efficiency

The most prominent feature of this model is its dual-worktable design. This revolutionary layout allows for the loading and unloading of materials on one table while machining is actively occurring on the other. This "simultaneous machining and material handling" mode enables seamless production continuity, maximizes spindle utilization, and significantly reduces overall production cycle times—making it exceptionally suited for the continuous operation of large-volume orders.

Technical Specifications

Component	Specification
Machine size	6900 * 2570 * 2100 mm
Processing Size (per station)	3050 * 1830 * 18 mm
Running Speed	60m/min
Drive type	X/Y rack; Z screw
Table structure	Partitioned vacuum adsorption table
Spindle power	9kw
Spindle speed	18000~24000r/min
Maximum operating speed	20m/min
Operating voltage	AC380/3PH/50HZ
Tool Capacity	12 Tools (Linear ATC)

Customization Available: Models and configurations can be customized to customer requirements. Please contact our team for specific pricing based on your desired configuration.

Key Features

Seamless Alternating Machining: The intelligent control system automatically switches machining operations between the two worktables, enabling genuine "non-stop" production and multiplying efficiency compared to single-table machines.

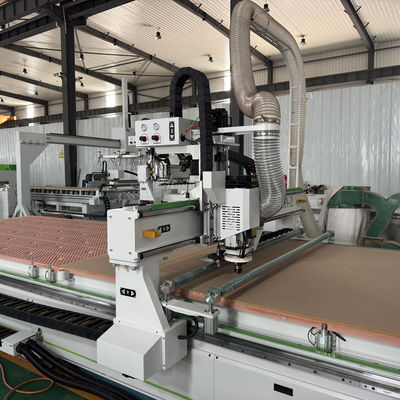

Powerful Core Drive: Equipped with a robust 9KW high-power direct-drive ATC spindle (18,000-24,000 RPM) and a 12-tool linear tool magazine, it effortlessly handles diverse tasks from cabinet carcass cutting to intricate door panel engraving without manual intervention.
Precision Motion System: Features custom 1.5KW servo motors, Japan SHIMPO precision reducers, and 25mm Taiwan-made linear guideways, paired with high-wear-resistance 1.5 Module rack and pinion drives (X/Y axes), ensuring high-speed, long-term stable and precise operation.
Independent & Efficient Vacuum System: Each worktable is equipped with a powerful patented zoned vacuum adsorption system and an 11KW vacuum pump, providing ample and reliable holding force for panels of various sizes, ensuring stability during high-speed cutting.
Optimized Dust Extraction & Cable Management: The patented dust hood offers excellent extraction, while the layered, separated-wire drag chain design simplifies maintenance and troubleshooting, enhancing overall operational stability.

Enhanced Functionality

Combines door panel and cabinet machining capabilities
Rapid plunge function for efficient drilling operations
Form sequencing processing for batch program execution
Rear-start function for convenient operation from loading position

Ideal For

Furniture manufacturers requiring high-volume production of cabinets and doors.
Panel processing shops looking to maximize output and reduce delivery times.
Any business where minimizing machine idle time is critical to profitability.

Frequently Asked Questions

Q1: Can customized services be supported?

A1: Yes, we can customize the color, size and logo you need.

Q2: Where is your factory located?

A2: We are a Chinese manufacturer in Qingdao city, Shandong province.

Q3: Can you make the machine according to my design or prototype?

A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.

Q4: Is this machine easy to operate for first-time users?

A4: We provide guide videos and English instruction manuals with the machine, plus free professional guidance until you can operate proficiently.

Q5: What's your MOQ and delivery terms?

A5: Minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for accurate shipping rates.

Q6: How is your after-sales service?

A6: Our sales team is available 24/7. We provide overseas installation services and free online training.

Q7: What if my machine needs repair?

A7: We offer free online support. For major issues during warranty period, we provide repair services.
