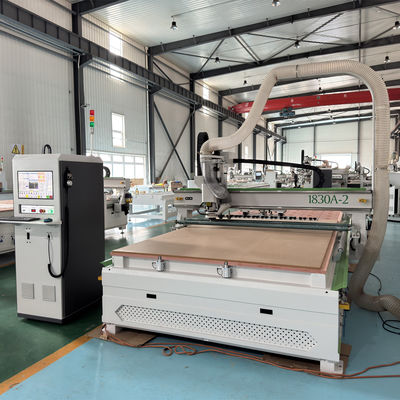

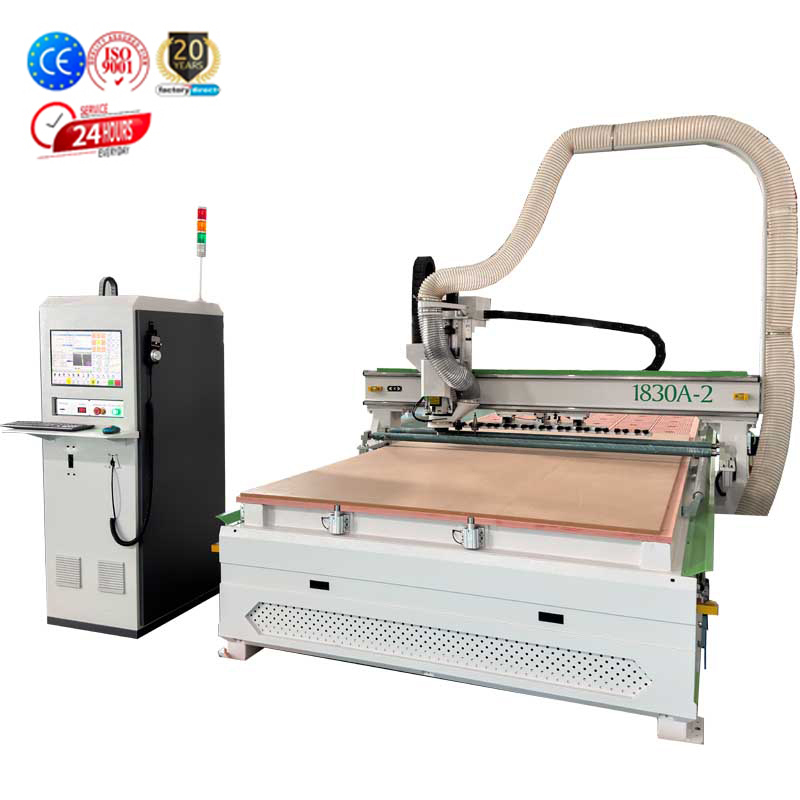

1830 Dual Table CNC Nesting Machine 60m/min With Cutting Drilling And Milling

Name: 1830 Dual Table CNC Nesting Machine 60m/min With Cutting Drilling And Milling
Brand: Qingdao Baihang Industry and Trade Co., Ltd
SKU: 1830A
Price: 6,500.00 USD
Availability: InStock

Brand Name:	BH
Model Number:	1830A
MOQ:	1
Price:	$5000 - $8000
Payment Terms:	T/T
Supply Ability:	3000sets /year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao,China

Certification:

Size:

6900 × 2570 × 2100 Mm,Customized Size

Processing Size (per Station):

3050 * 1830 * 18 Mm

Running Speed:

60m/min

Control System:

Taiwan LNC-B

Tool Capacity:

12 Tools (Linear ATC)

Operating Voltage:

AC380/3PH/50HZ

Packaging Details:

3700*2250*2400mm

Highlight:

Dual Table CNC Nesting Machine

CNC Nesting Machine 60m/min

Product Description

1830 Dual Table CNC Nesting Machine For Panel Processing With Cutting Drilling And Milling

Product Overview

This advanced CNC nesting machine combines cutting, drilling, and milling capabilities for comprehensive panel processing. Designed for high-efficiency production, it handles multiple processes with precision and automation.

Performs carving, cutting, routing, punching, slotting, chamfering, and irregular shape cutting - all in one machine
High-speed operation with exceptional accuracy and low dust emission
Ideal for customized furniture production including wardrobes, cabinets, and office furniture
Optional dual-table system enables continuous production with minimal idle time
Integrated smart dust extraction and follow-path air blowing for clean operation

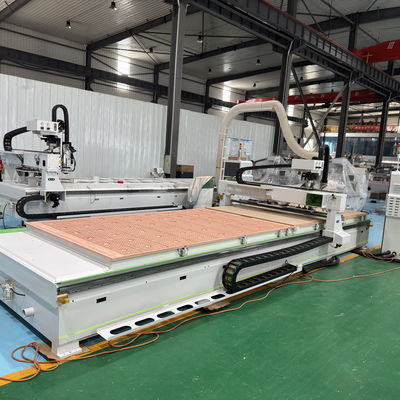

Core Advantage: Dual-Table Synergy, Doubled Efficiency

The dual-worktable design revolutionizes production workflow by allowing simultaneous material handling and machining. This continuous operation mode maximizes spindle utilization, reduces cycle times, and is perfect for large-volume orders.

Technical Specifications

Component	Specification
Machine size	6900 × 2570 × 2100 mm
Processing Size (per station)	3050 × 1830 × 18 mm
Running Speed	60m/min
Drive type	X/Y rack; Z screw
Table structure	Partitioned vacuum adsorption table
Spindle power	9kw
Spindle speed	18000~24000r/min
Maximum operating speed	20m/min
Operating voltage	AC380/3PH/50HZ
Tool Capacity	12 Tools (Linear ATC)

Customization Available: Models and configurations can be customized to customer requirements. Please contact our team for specific pricing based on your desired configuration.

Key Features

True Unmanned Production Capability: Automated dual-table system enables continuous workflow with minimal operator intervention, supporting extended lights-out operation.
All-Scenario Processing Versatility: Handles both heavy-duty cabinet cutting and high-speed, fine-detail engraving with 9KW spindle and 12-tool magazine.
Rigid-Body Engineering for Zero-Tolerance Precision: Stress-relieved steel frame maintains micron-level accuracy throughout machine lifespan.
Proactive Maintenance & Serviceability: Centrally located components and centralized lubrication system minimize downtime.
CleanTech Workshop Environment: High-efficiency dust collection captures over 99% of particulate matter for cleaner operation.

Enhanced Functionality

Combined door panel and cabinet machining capabilities
Rapid plunge function for efficient drilling
Form sequencing processing for batch program execution
Rear-start function for convenient operation

Ideal For

Furniture manufacturers requiring high-volume production
Panel processing shops looking to maximize output
Businesses where minimizing machine idle time is critical

Frequently Asked Questions

Q1: Can customized services be supported?

A1: Yes, we can customize the color, size and logo you need.

Q2: Where is your factory located?

A2: We are a Chinese manufacturer in Qingdao city, Shandong province.

Q3: Can you make the machine according to my design or prototype?

A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.

Q4: Is this machine easy to operate for first-time users?

A4: We provide guide videos and English instruction manuals with the machine, plus free professional guidance until you can operate proficiently.

Q5: What's your MOQ and delivery terms?

A5: Minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for accurate shipping rates.

Q6: How is your after-sales service?

A6: Our sales team is available 24/7. We provide overseas installation services and free online training.

Q7: What if my machine needs repair?

A7: We offer free online support. For major issues during warranty period, we provide repair services.
