| Brand Name: | BaiHang |
| Model Number: | BHMNP330B |
| MOQ: | 1 |
| Price: | $18000 - $20500 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

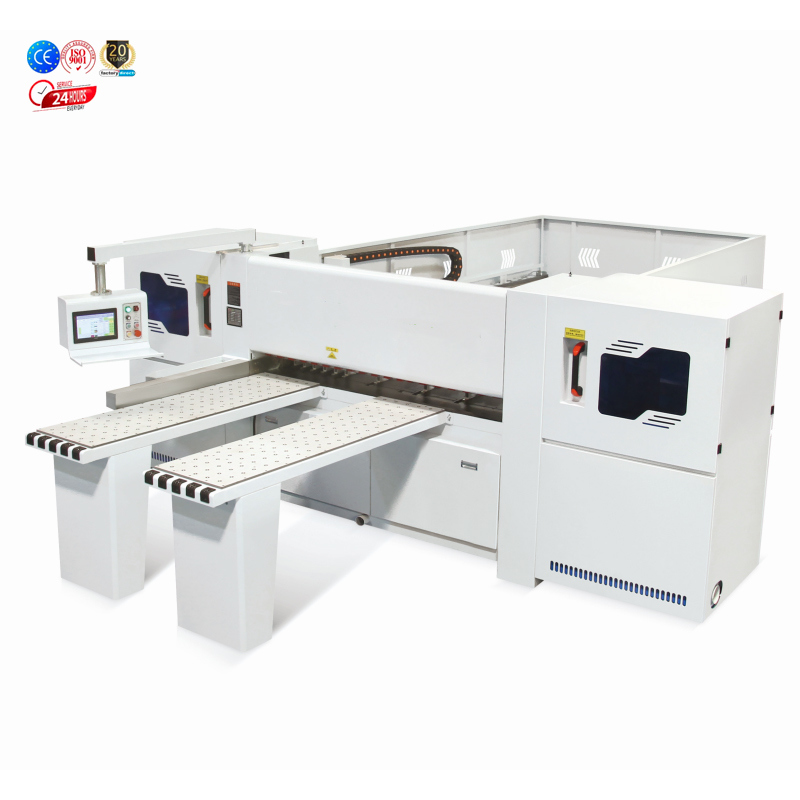

From loading to unloading, the CNC Beam Saw ensures a seamless and fully automated workflow. Operators simply place the raw panel on the worktable or loading device, activate the clamping system, and initiate the automated process.
| Main and scoring saw power | 16.5kw |
|---|---|
| Maximum cutting length | 3200mm |
| Maximum cutting thickness | 85mm |
| Maximum sawing width | 3300mm |
| Minimum cross-cutting board size | 5mm |
| Minimum board size for vertical cutting | 40mm |
| Positioning method | Automatic |
| Servo positioning accuracy | 0.02mm |
| Sawing accuracy | ±0.2mm |
| Main saw blade outer diameter | 360mm |
| Main saw blade inner diameter | 30mm |
| Main saw speed | 4800r/min |
| Saw car servo motor | 2KW |
| Robot servo motor | 2kw |
| Cutting speed | 0-100 m/min |
| Return speed | 120 m/min |
| High pressure blower | 4KW |
| Air pressure | 0.6-0.8MPA |
| Air flotation table specifications | 1750*540mm |
| Machine tool dimensions | 5030x5800x1900m |
| Power | 24.5KW |
