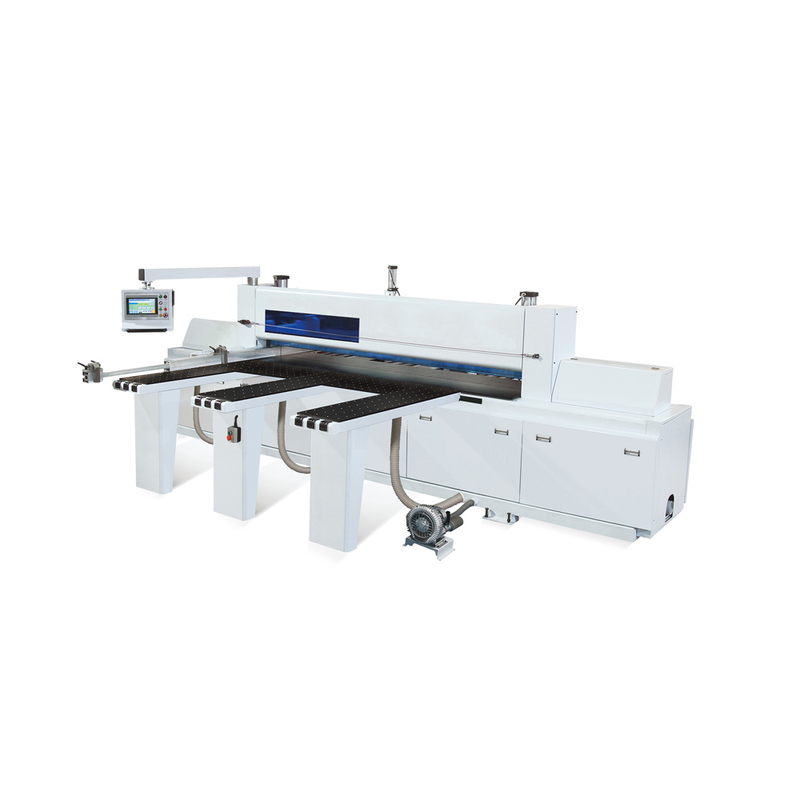

Automatic High Precision Cutting Machine CNC Panel Saw BHMNP330B

Name: Automatic High Precision Cutting Machine CNC Panel Saw BHMNP330B
Brand: Qingdao Baihang Industry and Trade Co., Ltd
SKU: BHMNP330B
Price: 19,250.00 USD
Availability: InStock

Brand Name:	BaiHang
Model Number:	BHMNP330B
MOQ:	1
Price:	$18000 - $20500
Payment Terms:	T/T
Supply Ability:	3000sets /year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao ,China

Certification:

Working Thickness:

100MM

Main Saw Blade Diameter:

350 Mm

Main Saw Motor Power:

15 KW

Machine Tool Dimensions:

5030x5800x1900m

Air Pressure:

0.6-0.8MPA

Voltage:

380 Volts, 3-phase, 50 Hertz

Packaging Details:

3920*940*1210mm*2

Highlight:

Automatic High Precision Cutting Machine

Automatic CNC Panel Saw

High Precision CNC Panel Saw

Product Description

Automatic High-Precision Cutting Machine CNC Panel Saw BHMNP330B

Elevate your manufacturing capabilities with our state-of-the-art Fully Automatic Computerized Panel Saw. Engineered for demanding production environments, this machine delivers unmatched precision, remarkable efficiency, and robust reliability for furniture, cabinetry, and panel processing operations.

Streamlined, Intelligent Operation

Experience a seamless workflow designed for maximum productivity. The process begins with easy loading of panels onto the work surface. With a simple command, powerful clamps secure the material. The machine then takes over, executing a flawless automated sequence that includes precise positioning, intelligent edge squaring, high-speed sawing, and automatic offloading.

Engineered for Excellence: Core System Highlights

Unshakable Foundation: Heavily reinforced framework constructed from premium steel with advanced welding and heat treatment processes.
Smart Control Center: High-performance programmable logic controller (PLC) for rapid processing and operational stability.
Intuitive Human-Machine Interface: User-centric control panel with clear display for simple operation and seamless software integration.

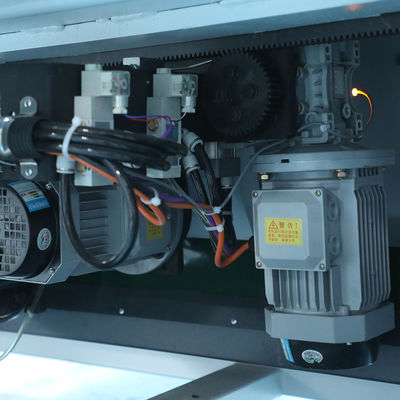

High-Speed Servo Drive: Advanced servo motors for lightning-fast response and exceptional positioning accuracy.

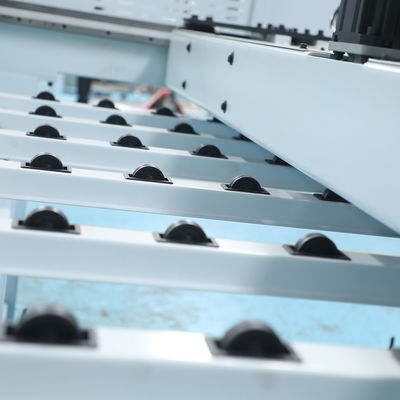

Effortless Material Handling: Integrated air floatation table with ball bearings for easy panel positioning.

Superior Components for Uncompromising Quality

Built with top-tier components from renowned brands for electrical controls, drive systems, and precision guides to ensure long-term reliability and performance.

Technical Specifications

Specification	Value
Main Saw Motor Power	15 kW
Scoring Saw Motor Power	2.2 kW
Maximum Cutting Length	2700 mm
Maximum Cutting Thickness	100 mm
Maximum Cutting Width	2700 mm
Servo Positioning Accuracy	±0.02 mm
Cutting Accuracy	±0.1 mm
Main Saw Blade Diameter	350 mm
Main Saw Speed	4800 rpm
Traction Motor Power	1.5 kW
Cutting Speed	0-100 m/min
Air Pressure	0.6-0.7 MPa
Air Floatation Table Size	1800x520 mm
Overall Machine Dimensions	~5860x5760x1800 mm
Total Power	~23 kW
Display	19-inch

Frequently Asked Questions

Q1: Can customized services be supported?

A1: Yes, we can customize the color, size and logo you need.

Q2: Where is your factory located?

A2: We are a Chinese manufacturer in Qingdao city, Shandong province.

Q3: Can you make the machine according to my design?

A3: Yes. Our professional designers will create the optimal production plan for your requirements.

Q4: Is the machine easy to operate for beginners?

A4: We provide instructional videos and manuals, plus free professional guidance until proficiency.

Q5: What's your MOQ and delivery terms?

A5: Minimum order is 1 set, shipped directly to your designated port.

Q6: How is your after-sales service?

A6: 24/7 support with optional overseas installation services.

Q7: What about repairs during warranty?

A7: Free online training and repair services for warranty issues.

Contact us immediately for more product information! Special reminder: Custom configurations available. Orders require prepayment - please confirm pricing with our staff based on your specific requirements.
