| Brand Name: | BH |
| Model Number: | 1830A |
| MOQ: | 1 |
| Price: | $5000 - $8000 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

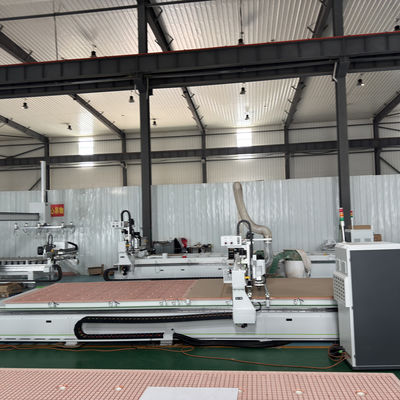

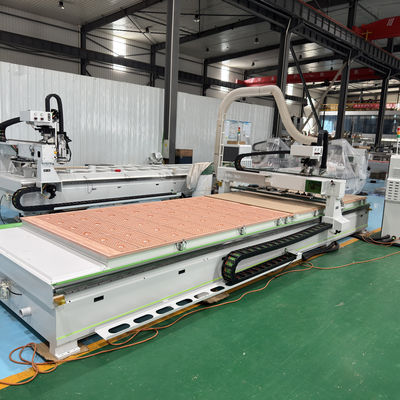

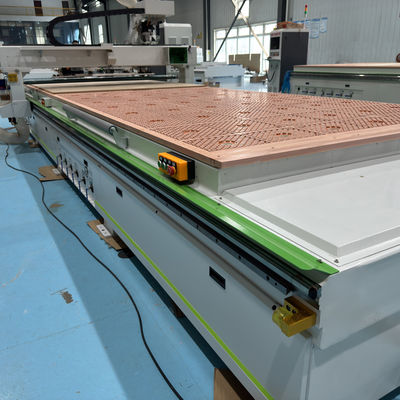

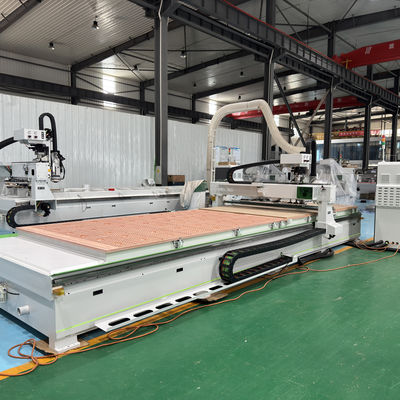

Meet the 1830A-2, a powerful twin-table CNC machine designed to boost your workshop's output. It handles everything from cabinet boxes to detailed doors with ease. Built for smooth, all-day operation, it's the reliable partner you need to grow your business.
Smart Design for Real Workshops
We build this machine around how you actually work. The twin-table setup means you can load one sheet while the other is being cut. There's no waiting. The machine also lets you start the job from the back, right where you load the material, saving you precious time with every panel.
| Component | Specification |
|---|---|
| Machine size | 6900 * 2570 * 2100 mm |
| Processing Size (per station) | 3050 * 1830 * 18 mm |
| Running Speed | 60m/min |
| Drive type | X/Y rack; Z screw |
| Table structure | Partitioned vacuum adsorption table |
| Spindle power | 9kw |
| Spindle speed | 18000~24000r/min |
| Maximum operating speed | 20m/min |
| Operating voltage | AC380/3PH/50HZ |
| Tool Capacity | 12 Tools (Linear ATC) |
Two Jobs in One Machine: This single machine can cut parts for cabinet boxes and also machine beautiful doors. You don't need two different machines.
Simple Controls: An intuitive Taiwan LNC system makes operation straightforward, even for new users.
Powerful Cutter: A 9kW self-changing spindle provides the muscle for quick and clean cuts through various materials.
Accurate Drive System: The machine moves on sturdy steel rails and is driven by a precise gear-and-rail system for consistent, reliable performance.
Strong Hold & Clean Cut: Multiple vacuum zones and a powerful pump keep your material firmly in place. An efficient dust collection system keeps your workspace clean.
No-Stop Tool Switching: The 12-tool automatic changer lets you run complex jobs without pausing to switch tools manually.
How It Makes You More Money
This machine is an investment that pays back by making your entire workflow more efficient.
Versatility: It's a true all-in-one solution, perfectly capable of machining both structural cabinet parts and decorative door panels.
Faster Throughput: Features like rapid drilling and the ability to queue multiple files slash the time between finished jobs.
Less Downtime: With reliable brand-name parts and easy-to-access service points, the machine spends more time cutting and less time being maintained.
