| Brand Name: | BaiHang |
| Model Number: | BH1325M |
| MOQ: | 1 |
| Price: | $2000 - $2400 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

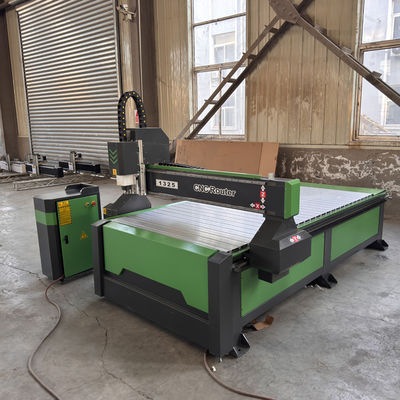

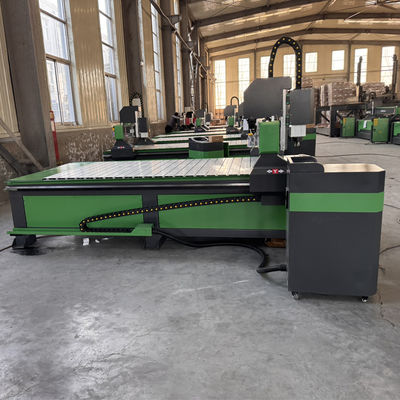

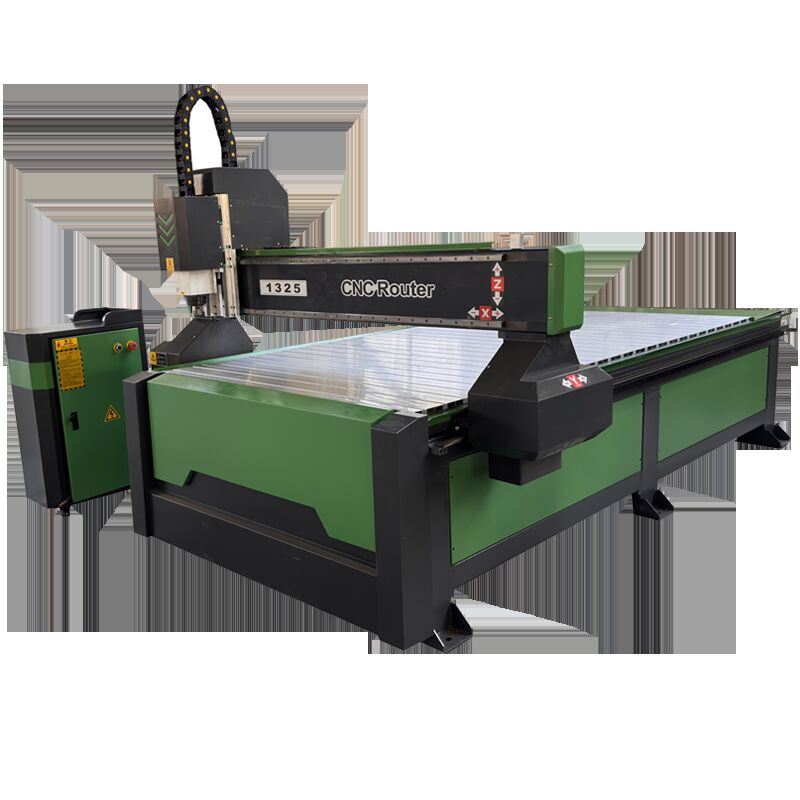

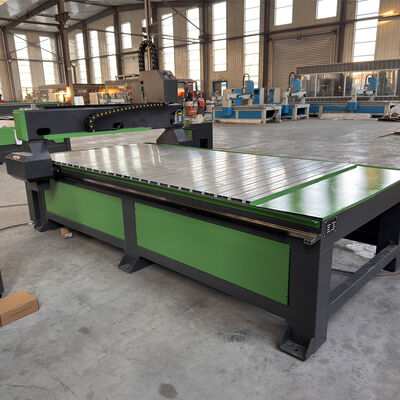

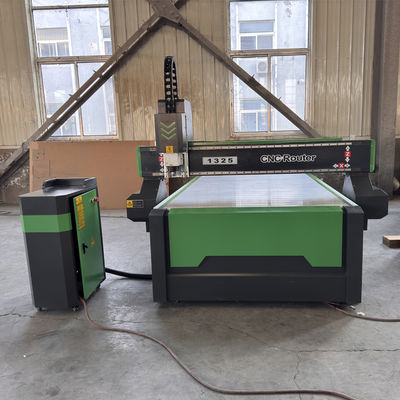

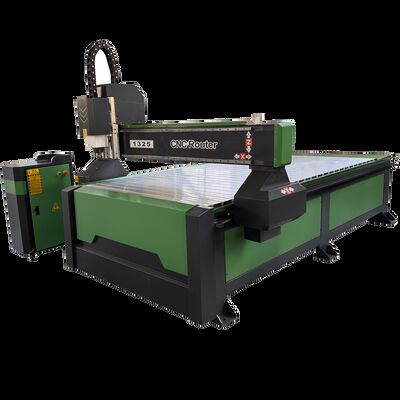

The BHM1325M CNC Router from Baihang Machinery is engineered for high-precision, stable, and efficient machining of materials like wood, plastic, composites, and non-ferrous metals. Designed with a robust construction and premium components, it ensures reliable performance in industrial and workshop environments.
Heavy-Duty Construction: Features a square tube welded bed with a detachable design and a thickened square steel gantry with cast iron columns. This ensures exceptional overall rigidity, minimal vibration, and long-term accuracy.
Stable Worktable: Utilizes a vertical-laid aluminum profile base with a protective PVC top layer, offering stable load-bearing capacity and durability.
High-Precision Machining: Achieves a positioning accuracy of 0.05mm, supported by a 20-square linear guide rail system and a high-precision 1.25m gear rack transmission on all three axes.
Powerful Spindle System: Equipped with a 6.0KW air-cooled spindle (24,000 RPM) and a 7.5KW frequency converter, delivering ample power for smooth, high-speed cutting.
Reliable Drive & Control: Powered by Chuangwei 450B stepper motors with Skyworth 860 drivers, controlled by a user-friendly JM Weihong operating system housed in a separate cabinet.
Premium Electrical Components: Incorporates Schneider Electric components for superior impact resistance, anti-interference, moisture protection, and operational stability.
Enhanced Durability: Includes an automatic lubrication system for regular maintenance of guides and screws, along with a wear-resistant drag chain that organizes power and signal cables separately to reduce interference.
| Component | Specification |
|---|---|
| Fuselage structure | Square tube welded bed body, detachable |
| Longmen structure | Thickened square steel gantry, cast iron columns |
| Mesa structure | Aluminum profiles+PVC, vertical laying of profiles |
| Body size | 3100*2000*1750mm |
| Table size | 1300*2500mm |
| Effective work schedule | 1.3mX2.5m (standard board size) |
| Machining accuracy | 0.05mm |
| Transmission structure | Three axis 20 square track and slider |
| Rack | 1.25m high-precision gear rack |
| Z-axis component | Drive belt+gear transmission |
| Motor set | Chuangwei 450B stepper motor |
| Driver | Skyworth 860 Drive |
| Spindle power | 6.0KW air-cooled spindle, speed 24000 RPM |
| Frequency converter | Zhuzhou 7.5KW frequency converter |
| Operating system | JM Weihong |
| Cabinet | Independent chassis control cabinet |
| Machine color | Grayish green |
| Working voltage | 380/220V 50Hz |
