| Brand Name: | BH |
| Model Number: | 1330A |
| MOQ: | 1 |
| Price: | $5000 - $8000 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |
Product Overview

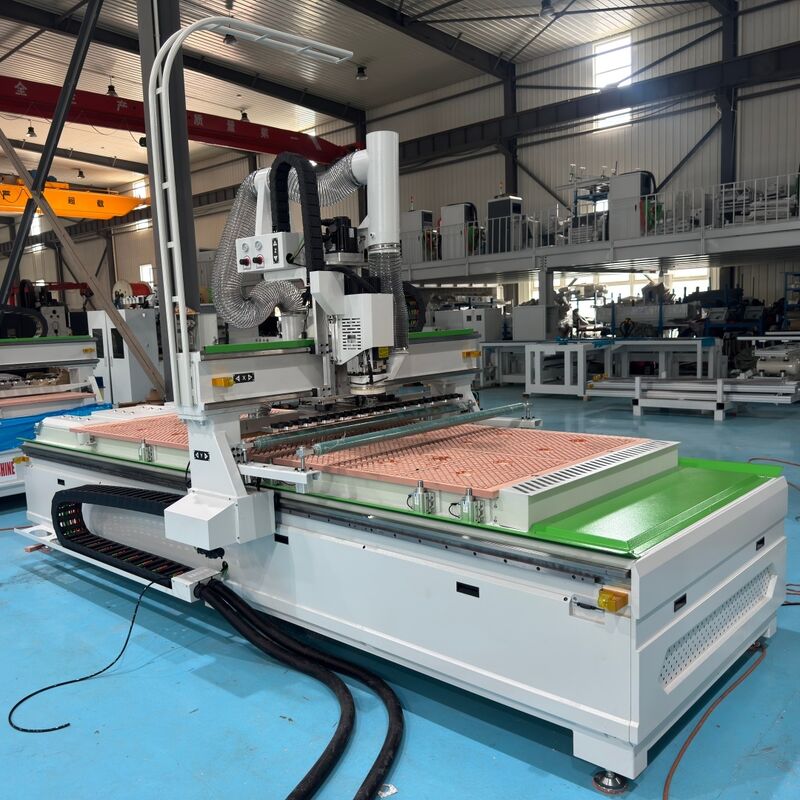

The 1330A Linear Tool Changer + Press Roller Machining Center is a high-performance CNC processing machine that integrates door panel processing and cabinet body machining capabilities. Equipped with a high-power 9kW automatic tool-changing spindle supporting speeds from 18,000 to 24,000 rpm, it features a linear 12-tool magazine to meet fast tool change requirements for complex processes. The machine has overall dimensions of 4300×2000×2100mm and a maximum processing capacity of 3050×1220×18mm, with rapid traverse speeds of 60m/min and working speeds of 20m/min. It includes a zoned vacuum adsorption table and a patented dual-press roller system to ensure board flatness and machining accuracy. Controlled by a Taiwanese LNC CNC system and paired with servo drives and high-precision transmission components, it is suitable for efficient and precise processing in custom furniture, panel furniture, and decorative building materials.
| Component | Specification |
|---|---|
| Machine size | 4300*2000*2100mm |
| Sheet processing dimensions | 3050*1220*18mm |
| Running Speed | 60m/min |
| Drive type | X/Y rack; Z screw |
| Table structure | Partitioned vacuum adsorption table |
| Spindle power | 9kw |
| Spindle speed | 18000~24000r/min |
| Maximum operating speed | 20m/min |
| Operating voltage | AC380/3PH/50HZ |
Product Advantages
Multi-Functional Integrated Design: Combines door panel engraving and cabinet body cutting, supporting multi-purpose use and saving equipment investment and space.
Efficient Automatic Tool Changer: Features a linear 12-tool magazine to meet fast tool change needs for diverse processes, improving production efficiency.
High Rigidity Structure and Precision Machining: The body adopts frame-type welding and vibration stress relief treatment, while the gantry beam undergoes quenching, sandblasting, and five-face machining center finishing to ensure stability and precision during heavy cutting.
Intelligent Control System and User-Friendly Features: The Taiwanese LNC CNC system offers a user-friendly interface with smart functions such as rapid plunge cutting, batch processing by form sorting, and rear-start operation, significantly simplifying workflows.

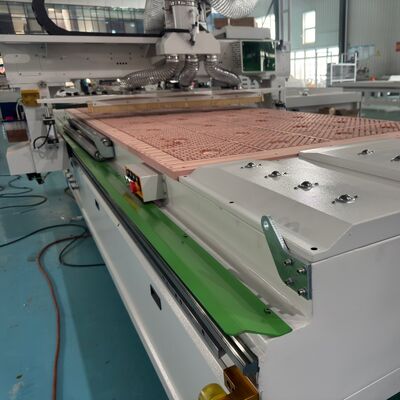

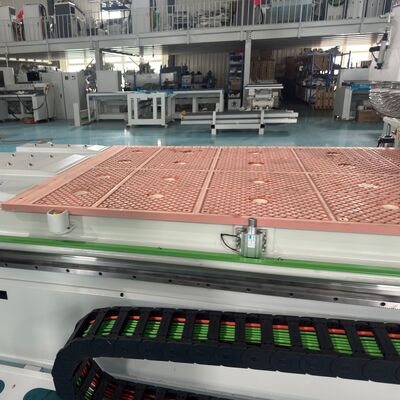

Efficient Adsorption and Clamping System: Zoned vacuum adsorption table paired with an 11kW high-power vacuum pump provides strong suction; the patented dual-press roller system applies even pressure to prevent board shifting and ensure surface flatness.
Product Applications
Whole-House Custom Furniture Manufacturing: Suitable for cabinet body cutting and door panel engraving, grooving, and other complex processing for wardrobes, kitchen cabinets, and tatami units.
Batch Panel Furniture Production: Efficiently performs cutting, drilling, and milling for office furniture, hotel furniture, and other standardized production needs.
Decorative Building Materials and Display Fixtures: Used for custom-shaped cutting and surface engraving of wall panels, feature walls, and commercial display cabinets.
Wooden Doors and Interior Decorative Components: Supports door panel processing, profile milling, hollow carving, and other decorative techniques.
