| Brand Name: | BH |
| Model Number: | 1330A |
| MOQ: | 1 |
| Price: | $5000 - $8000 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |
Product Overview

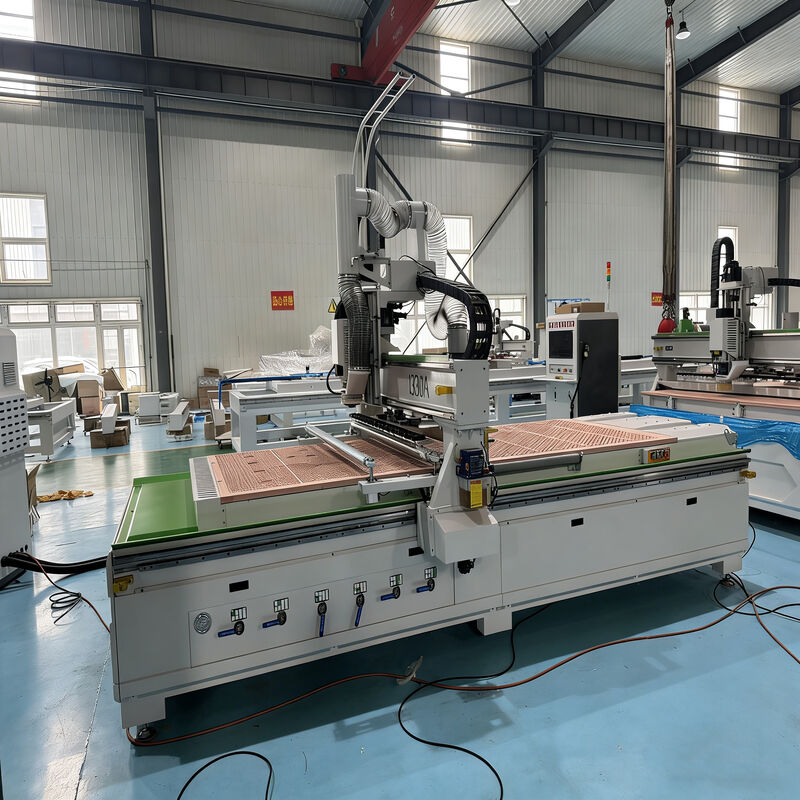

The machine is a high-performance CNC processing machine that integrates the functions of door panel fine machining and cabinet body efficient cutting. The equipment features a high-power 9kW automatic tool-changing spindle, supporting a wide speed range of 18,000-24,000 rpm, and is equipped with a linear 12-tool magazine system, capable of meeting rapid switching requirements for complex processes. The overall machine dimensions are 4300×2000×2100mm, with a maximum processing size of 3050×1220×18mm. It achieves high-speed rapid traverse of 60m/min and stable working speed of 20m/min. Through the coordinated action of the zoned vacuum adsorption table and the patented dual press roller system, precise positioning and surface flatness of the board during processing are ensured. Powered by the LNC CNC system and high-precision transmission components, it is suitable for efficient, high-precision processing needs in custom furniture, panel furniture, and decorative building materials sectors.
| Component | Specification |
|---|---|
| Machine size | 4300*2000*2100mm |
| Sheet processing dimensions | 3050*1220*18mm |
| Running Speed | 60m/min |
| Drive type | X/Y rack; Z screw |

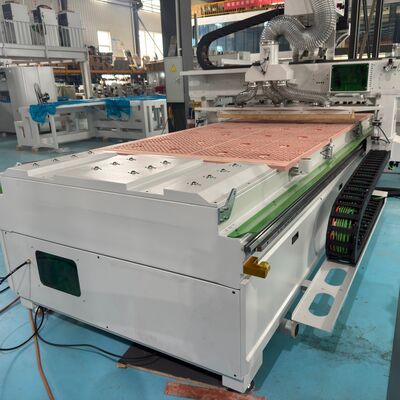

| Table structure | Partitioned vacuum adsorption table |
| Spindle power | 9kw |
| Spindle speed | 18000~24000r/min |
| Maximum operating speed | 20m/min |
| Operating voltage | AC380/3PH/50HZ |
Product Advantages
Multi-function Combined Processing Capability: Integrates door panel engraving and cabinet body cutting functions into a single machine, achieving versatility and significantly improving equipment utilization and production flexibility.
Efficient Automatic Tool Changing System: The 12-tool linear magazine supports continuous multi-process machining, featuring fast tool changes and precise positioning, greatly enhancing production efficiency.
High Rigidity Structural Design and Precision Manufacturing Process: The frame employs a welded truss structure, with internal stress relieved through vibration aging and tempering treatments; the beam and guide rail surfaces are precision machined by a five-face machining center, ensuring stability and long-term accuracy retention under heavy cutting conditions.
Intelligent Control System and User-Friendly Operation Experience: The LNC CNC system features a friendly human-machine interface and supports intelligent functions such as rapid plunge cutting, form sorting for batch processing, and rear machine start, simplifying operation procedures and increasing production efficiency.
Efficient Board Fixturing and Dust Removal System: The zoned vacuum adsorption table, combined with an 11kW high-power vacuum pump, provides strong suction and prevents shifting; the patented dust collection hood and following-path air blowing device enable efficient dust extraction, supporting dust-free cutting and improving the working environment.
Product Applications
Intelligent Manufacturing for Whole-House Custom Furniture: Suitable for efficient processing of cabinet body cutting (e.g., wardrobes, kitchen cabinets, tatami) and complex door panel techniques like engraving, grooving, and hollowing.
Large-Scale Panel Furniture Production: Capable of efficiently performing cutting, drilling, and milling operations, applicable to batch production scenarios such as office furniture, hotel furniture, and children's furniture.
Decorative Building Materials and Display Fixture Manufacturing: Used for custom-shaped cutting and fine surface engraving of wall panels, feature walls, commercial display cabinets, and display racks.
Wooden Door and Solid Wood Customization Fields: Supports milling, engraving, and hole processing for products like door leaves, door frames, and decorative moldings.
Small to Medium-Sized Furniture Processing Centers and Shared Workshops: Meets the flexible production needs for orders that are multi-variety, small-batch, and high-complexity, enabling diverse processing tasks to be completed on a single machine and enhancing overall production capacity.
