| Brand Name: | BH |
| Model Number: | 1830 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |
Product Introduction

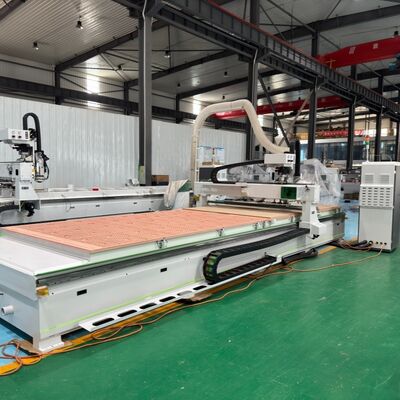

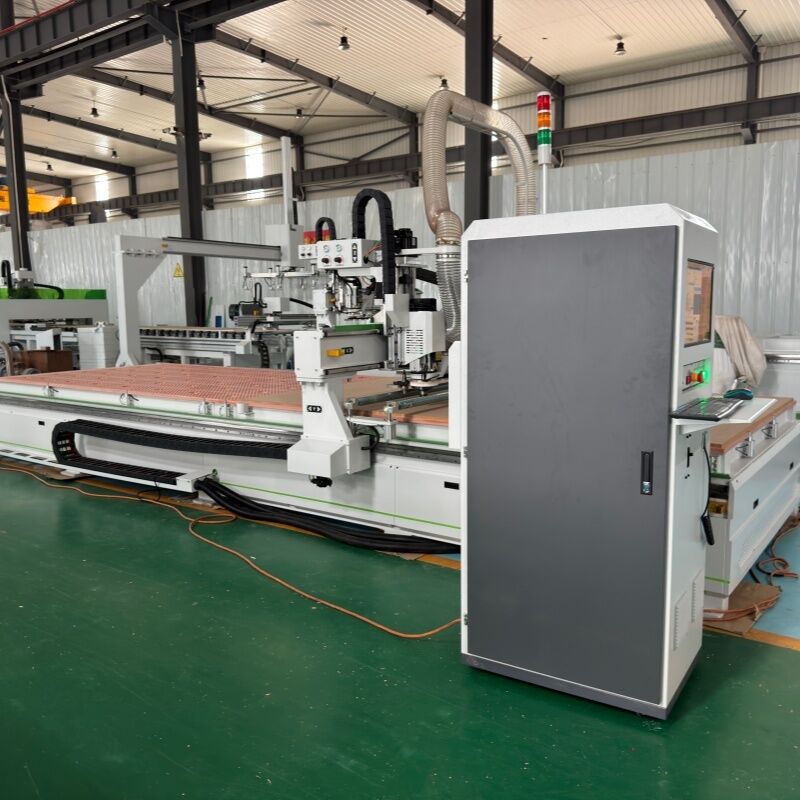

The1830 Tool Changer Machining Center represents a pinnacle of precision engineering tailored for modern woodworking and panel processing industries. Built with a rigid, integrally welded steel truss frame, the machine undergoes a series of advanced manufacturing processes—including tempering (annealing) for gantry beams and side arms, vibration aging for the bed, and precision machining via a 5-face machining center—to ensure exceptional structural stability and dimensional accuracy. This robust construction enables the machine to withstand heavy cutting operations while maintaining consistent performance
| Component | Specification |
|---|---|
| Overall dimensions | 6900*2570*2100mm |
| Sheet processing dimensions | 3050*1830*18mm |
| Running Speed | 60m/min |
| Transmission type | X/Y rack and pinion; Z lead screw |
| Table structure | Partitioned vacuum adsorption table |
| Spindle power | 9kw |
| Spindle speed | 18000~24000r/min |
| Maximum operating speed | 20m/min |
| Operating voltage | AC380/3PH/50HZ |
Product Advantages

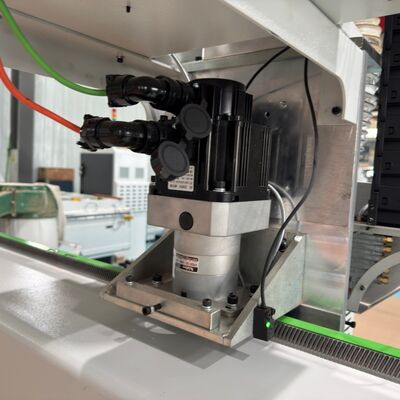

Uncompromising Precision & Stability: The integration of Japanese Shimpo reducers (helical planetary structure) and Taiwanese steel guide rails ensures a positioning accuracy that meets strict industrial standards. The 5-face machining center processes the bed and gantry in a single setup, guaranteeing parallelism and perpendicularity of XYZ axes—critical for achieving consistent cutting quality across large batches.
High Efficiency for Mass Production: With an empty travel speed of 60m/min and a maximum working speed of 20m/min, the machine outperforms conventional models in throughput. The dual-station layout allows operators to load/unload workpieces on one station while the other is in operation, reducing idle time by up to 40%. Additionally, the 12-tool magazine eliminates frequent tool change delays, supporting continuous processing of complex parts.
Superior Material Adaptability: The 9KW spindle, with its wide speed range (18,000-24,000 rpm), handles a variety of materials—including MDF, particleboard, solid wood, and laminated panels. The zoned vacuum adsorption table, featuring a patent design with screw-fixed surfaces, provides strong and uniform suction, preventing small workpieces from shifting during cutting. A powerful 11KW vacuum pump further enhances adsorption performance, ensuring stability even for thin or irregularly shaped panels.
Durable & Low-Maintenance Design: High-quality components—such as Hengtong high-flexibility shielded drag chain cables (resistant to extreme temperature variations) and Delixi electrical parts (easily accessible nationwide)—minimize downtime and maintenance costs. The centralized lubrication system automatically delivers timed, lubrication to lead screws, guide rails, and slides, extending the service life of transmission components by up to 30%.
Eco-Friendly & Safe Operation: A patent-designed dust collection hood efficiently captures dust from cutting grooves, while an optional square air-blowing hood achieves dust-free cutting. A path-following air-blowing device further ensures a clean working environment, complying with occupational health and safety standards. Emergency stop buttons, safety interlocks, and clear warning indicators enhance operator safety.
Product Applications
Furniture Manufacturing: Ideal for producing kitchen cabinets, wardrobes, office furniture, and door panels. Its ability to handle both and door processing makes it a one-stop solution for furniture factories.
Woodworking Workshops: Supports custom woodworking projects, such as decorative panels, shelving, and architectural millwork, where precision and flexibility are paramount.
Composite Material Processing: Efficiently processes composite panels (e.g., HPL, melamine-faced boards) used in retail displays, hotel interiors, and commercial fit-outs.
Modular Construction: Facilitates the production of prefabricated wall panels and modular furniture components, aligning with the growing demand for fast-track construction projects.
