| Brand Name: | BH |
| Model Number: | 1330A |
| MOQ: | 1 |
| Price: | $5000 - $8000 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

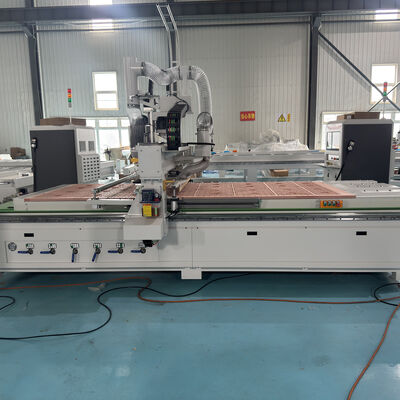

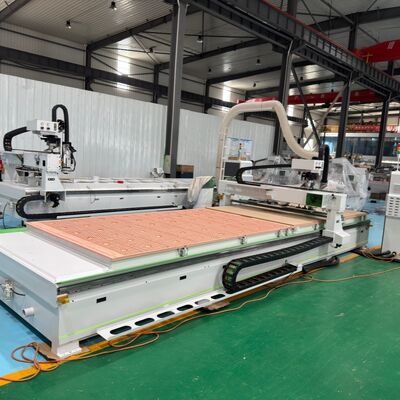

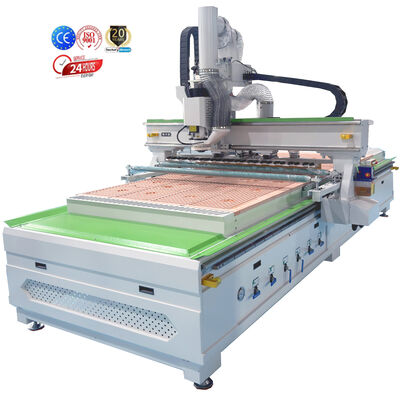

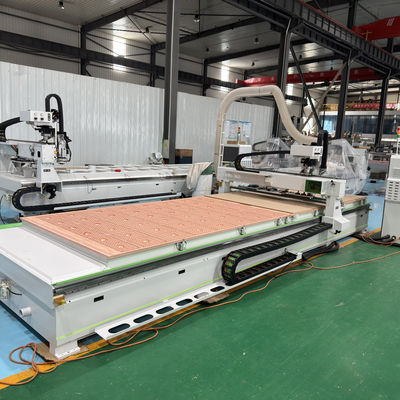

The 1330A Machining Center is engineered to meet the complex demands of today's custom furniture and cabinet manufacturing. It seamlessly integrates high-speed machining for both cabinet casework and intricate door panels into a single, robust platform. Designed for efficiency and precision, this machine empowers workshops to increase throughput and expand their service capabilities.
Core Configuration for Reliable Performance
At the heart of the 1330A is a powerful 9KW automatic tool-changing spindle (18,000-24,000 RPM) driven by a Taiwan Fuling inverter for smooth, responsive operation. Movement is handled by 1.5KW servo motors and precision gear racks (X/Y axes) and ball screws (Z axis), guided by durable 25mm Taiwan steel linear guides. The system is orchestrated by a user-friendly Taiwan LNC control system, ensuring stability and ease of use.
Engineered for Accuracy and Productivity
A key feature is the dual roller-press system, which applies uniform pressure to stabilize panels during cutting and engraving, guaranteeing dimensional accuracy and a flawless surface finish. The machine is equipped with a straight-line 12-tool magazine for versatile job processing and a patented zoned vacuum table with an 11KW pump, providing exceptional hold-down force even for smaller workpieces.
Intelligent Features for Streamlined Workflow
Beyond core machining, the 1330A includes productivity-enhancing functions: a rapid plunging cycle for faster drilling, batch job sorting to process multiple files in sequence, and a rear-start function allowing the operator to begin a job directly from the loading side, saving valuable time.
Built for Durability and Clean Operation
Constructed from stress-relieved, milled steel with a hardened and sandblasted gantry, the frame ensures rigidity for heavy cutting. It features a centralized lubrication system, high-flex drag-chain cables, and an effective dust collection hood with optional follow-path air blow for a cleaner workshop environment.
| Component | Specification |
|---|---|
| Machine size | 4300*2000*2100mm |
| Sheet processing dimensions | 3050*1220mm |
| Running Speed | 60m/min |
| Drive type | X/Y rack; Z screw |
| Table structure | Partitioned vacuum adsorption table |
| Spindle power | 9kw |
| Spindle speed | 18000~24000r/min |
| Maximum operating speed | 20m/min |
| Operating voltage | AC380/3PH/50HZ |
Ideal for furniture, cabinet, and door manufacturers, the 1330A ATC CNC Router is engineered to maximize output, precision, and operational convenience for professional panel processing.
