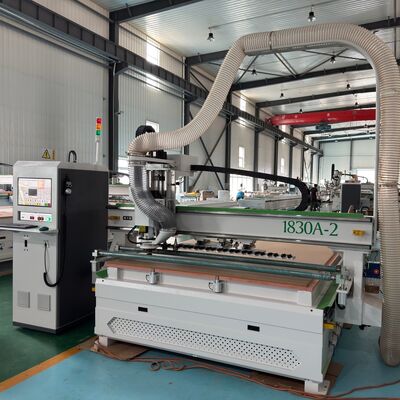

Dual-Station 12-Tool Linear ATC CNC Nesting Machine with 9kW High-Power Spindle for MDF Board Cutting

Name: Dual-Station 12-Tool Linear ATC CNC Nesting Machine with 9kW High-Power Spindle for MDF Board Cutting
Brand: Qingdao Baihang Industry and Trade Co., Ltd
SKU: 1830A
Price: 6,500.00 USD
Availability: InStock

Brand Name:	BH
Model Number:	1830A
MOQ:	1
Price:	$5000 - $8000
Payment Terms:	T/T
Supply Ability:	3000sets /year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao,China

Certification:

Name:

1830 Dual - Station Automatic Tool Change CNC Nesting Machine

Size:

6900 × 2570 × 2100 Mm,Customized Size

Finish:

8-20Days

Control System:

Taiwan LNC-B

Tool Capacity:

12 Tools (Linear ATC)

Operating Voltage:

AC380/3PH/50HZ

Packaging Details:

3700*2250*2400mm

Highlight:

Dual-Station Design CNC Nesting Machine

12-Tool Linear ATC CNC Router

9kW High-Power Spindle Automatic Tool Change CNC Machine

Product Description

Double Station Straight Row ATC CNC Machine for MDF Board Cutting

The 1830A-2 Dual-Station Linear Tool Changer Machining Center is a high-efficiency CNC processing equipment specifically engineered for large-scale panel furniture production. With its dual-station coordinated design, it supports simultaneous or alternating operations between two workstations, significantly enhancing production continuity and equipment utilization.

Technical Specifications

Component	Specification
Machine Size	6900 * 2570 * 2100 mm
Processing Size (per station)	3050 * 1830 * 18 mm
Running Speed	60 m/min
Drive Type	X/Y rack; Z screw
Table Structure	Partitioned vacuum adsorption table
Spindle Power	9 kW
Spindle Speed	18,000-24,000 rpm
Maximum Operating Speed	20 m/min
Operating Voltage	AC380/3PH/50HZ
Tool Capacity	12 Tools (Linear ATC)

Customization Available: Models and configurations can be customized to customer requirements. Please contact our team for specific pricing based on your desired configuration.

Key Features

Dual-Station Efficient Collaborative Operation: Supports simultaneous or alternating processing, enabling continuous loading and production while reducing equipment idle time and increasing overall output capacity.
High-Power Precision Spindle: 9kW automatic tool-changing spindle delivers strong cutting force with a wide speed range of 18,000-24,000 rpm, meeting diverse processing requirements from door panel engraving to cabinet body cutting.
Large-Capacity Intelligent Tool Magazine: Linear 12-tool magazine design offers ample tool capacity with fast and precise tool changes. Patented PE material tool holder features spring design for durability and reliability.
High-Rigidity Precision Frame: Integral steel frame welded structure with internal stress eliminated through vibration aging and tempering treatments. Precision-machined by five-face machining center for stability and long-term accuracy.
Intelligent Control System: Taiwanese LNC control system with user-friendly interface and intelligent functions including rapid plunge cutting, batch processing by form sorting, and rear-start operation.

Enhanced Functionality

Large-Scale Whole-House Custom Furniture Production: Suitable for high-efficiency batch processing of cabinet bodies and complex door panel techniques including engraving, grooving, and hollowing.
Smart Panel Furniture Factories: Capable of handling multiple orders simultaneously with parallel operations including cutting, drilling, and milling.
High-End Decorative Materials Manufacturing: Used for custom-shaped cutting and fine surface engraving of wall panels, feature walls, and commercial display fixtures.
Wooden Door and Solid Wood Custom Production: Supports batch milling, engraving, and hole processing for door leaves, door frames, and decorative moldings.
Large Furniture Processing Centers: Ideal for medium to large orders, meeting comprehensive processing needs for multi-variety, high-volume production.

Frequently Asked Questions

Q1: Can customized services be supported?

A1: Yes, we can customize the color, size and logo you need.

Q2: Where is your factory located?

A2: We are a Chinese manufacturer in Qingdao city, Shandong province.

Q3: Can you make the machine according to my design or prototype?

A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.

Q4: Is this machine easy to operate for first-time users?

A4: We provide guide videos and English instruction manuals with the machine, plus free professional guidance until you can operate proficiently.

Q5: What's your MOQ and delivery terms?

A5: Minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for accurate shipping rates.

Q6: How is your after-sales service?

A6: Our sales team is available 24/7. We provide overseas installation services and free online training.

Q7: What if my machine needs repair?

A7: We offer free online support. For major issues during warranty period, we provide repair services.
