| Brand Name: | BH |
| Model Number: | 368F |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 2000Sets/Year |

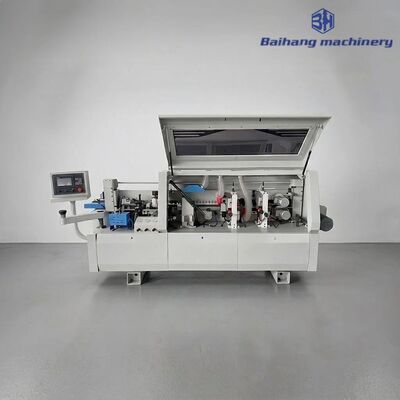

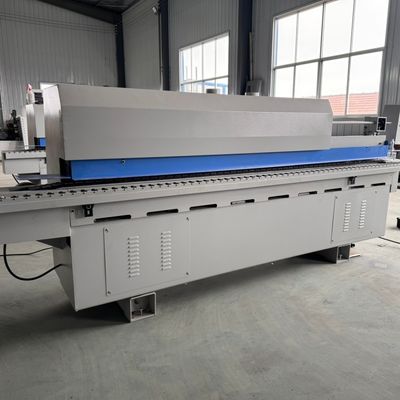

The BHM368F Edge Banding Machine is a high-performance, fully automatic edge banding solution designed for straight-line edge processing in panel furniture manufacturing. With overall dimensions of 3500*750*1500mm and a machine weight of 1000kg, it offers robust and durable construction. The machine delivers a conveyor speed of 16m/min and processes panels with thickness of 10-60mm and edge banding thickness of 0.3-3mm. The minimum workpiece dimensions are 50mm in width and 70mm in length.
Equipped with a standard PLC microcomputer control system based on time control principles, the machine ensures enhanced stability and operational safety. High-quality branded accessories guarantee long-term reliability.
| Specification | Value |
|---|---|
| Weight | 1000kg |
| Motor Power | 7kw |
| Overall Size | 3500*750*1500mm |
| Feed Speed | 16m/min |
| Panel Thickness | 10-60mm |
| Voltage | 380V 50Hz 3Phase (Optional) |

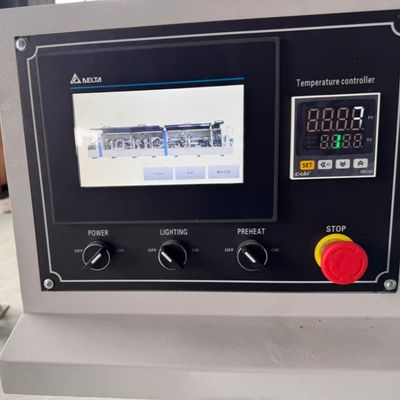

PLC microcomputer control system using time control principles significantly improves machine stability and operational safety.
Glue tank heating device uses spiral structure to evenly apply hot melt adhesive, ensuring strong bonding and durable edge banding.
Single-rail design accurately trims excess edge banding from both panel ends for a clean, flush finish.

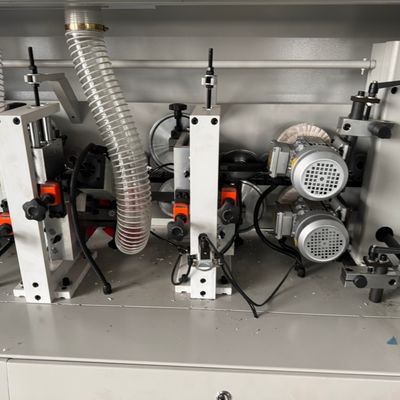

High-speed oblique cutting motor with adjustable alloy disc blade delivers smooth, even, and precise trimming results.
Eliminates ripple marks caused by non-linear cutting, making upper and lower edges smoother and neater.
Enhances smoothness and surface quality of edge banding section for professional finish.
Standard PLC microcomputer control using time control principles greatly increases stability and safety.
The glue coating device heats hot melt adhesive through a glue pot and uses a spiral structure to evenly apply glue, ensuring strong adhesive force.

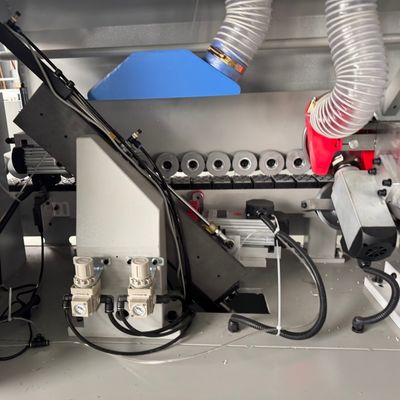

End cutting unit adopts single guide rail to cut the edges of the board at both ends.
High speed oblique cutting motor with adjustable operation and alloy disc ensures smooth and even trimming.
Eliminates ripple marks caused by non-linear cutting processes during edge trimming, making upper and lower parts smoother and neater.
Polishing makes the edge sealing section smoother and more effective.
