Multifunctional Big Woodworking CNC Router Machine Customizable Size

Multifunctional Big Woodworking CNC Router Machine Customizable Size

Brand Name:	BaiHang
Model Number:	BH1325M
MOQ:	1
Price:	$2000 - $2400
Payment Terms:	T/T
Supply Ability:	3000sets /year

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao ,China

Certification:

Document:

BHM1325M.pdf

Product Name:

CNC Wood MDF Furniture Carving CNC Router Woodworking Machine

Place Of Origin:

Shandong, China

Work Table:

T Slot Combined Vacuum Work Table

Application:

Kitchen Cabinet Doors Furnitures Making

Power(w):

According To Your Order,3.0KW,3KW,4.5kw,4.5 Kw Air-cooling

Condition:

New

Cnc Or Not:

CNC

Packaging Details:

3310*2250*1030mm

Highlight:

Woodworking CNC Router Machine

Multifunctional CNC Router Machine

Big CNC Router Customizable

Product Description

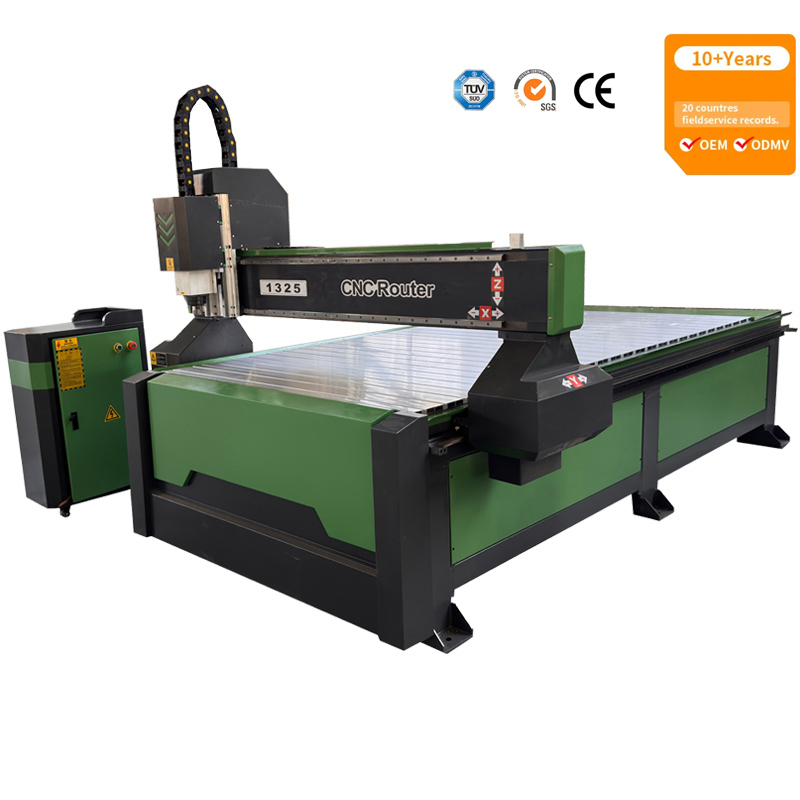

Multifunctional Woodworking 1325 CNC Router Pro Big Machines Customizable Size

Product Overview

Our 1325 Woodworking CNC Router is engineered for heavy-duty nesting and drilling tasks, delivering reliable power and sustained high precision of ±0.05mm. Its robust construction features a square tube welded bed and a rigid gantry with cast iron columns, ensuring stability. The machine is built around a 1.3m x 2.5m worktable that accommodates standard-sized panels with ease.

Driven by a potent 6.0KW air-cooled spindle (24,000 RPM) and high-precision rack-and-pinion transmission, it guarantees efficient and accurate performance.

The system is powered by Chuangwei stepper motors and Skyworth drives, all seamlessly integrated with the user-friendly JM Weihong operating system. Housed in an independent control cabinet, this cost-effective solution is backed by our excellent after-sales service, providing a complete package of durability, accuracy, and value.

Technical Specifications

Component	Specification
Fuselage structure	Square tube welded bed body, detachable
Longmen structure	Thickened square steel gantry, cast iron columns
Mesa structure	Aluminum profiles+PVC, vertical laying of profiles
Body size	310020001750mm
Table size	1300*2500mm
Effective work schedule	1.3mX2.5m (standard board size)
Machining accuracy	0.05mm
Transmission structure	Three axis 20 square track and slider
Rack	1.25m high-precision gear rack
Z-axis component	Drive belt+gear transmission
Motor set	Chuangwei 450B stepper motor
Driver	Skyworth 860 Drive
Spindle power	6.0KW air-cooled spindle, speed 24000 RPM
Frequency converter	Zhuzhou 7.5KW frequency converter
Operating system	JM Weihong
Cabinet	Independent chassis control cabinet
Machine color	Grayish green
Working voltage	380/220V 50Hz

Special reminder: Different customers can customize models and configurations according to their needs. Due to product variety, orders require prepayment. We provide quotations based on customer requirements. Please confirm actual pricing with our staff according to product model configuration.

Key Features

Feature	Description	Image
MACHINE PARTS	Brand: BH Origin: China Features: long lifespan, low noise, free maintenance
MAIN FEATURES	Three-axis 20 square rail and slider Brand: BH Origin: China Features: fast running speed and strong bearing capacity
MACHINE PARTS	Name: T-slot Table Brand: BH Origin: China Features: much more economic
MAIN FEATURES	Origin: China Name: independent control cabinet Features: easy to operate and simple to control

Aluminum profile with PVC countertop: Large aluminum profile surface provides stable load-bearing capacity, with PVC base protecting the aluminum profile.

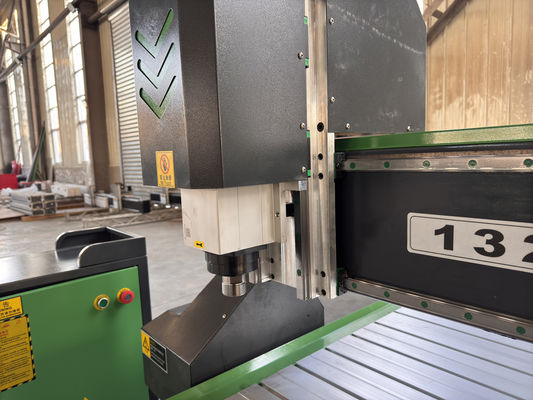

Stepping motor: High-quality spindle and cutting head enable long operation time, reduced losses, fast bearing speed, and low noise.

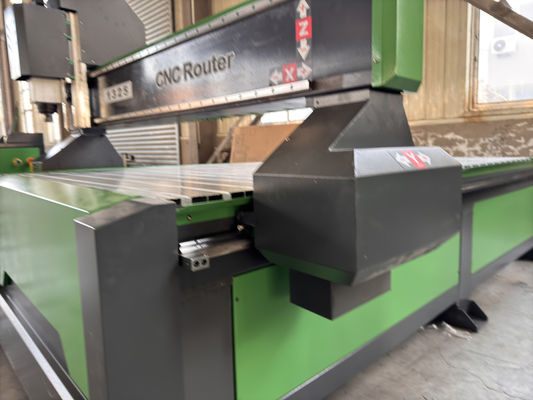

Square steel gantry frame: 1cm thick heat-treated square steel gantry frame ensures good rigidity, smooth operation, and high machine accuracy.
Drag chain: New wear-resistant drag chain with separated signal and power lines prevents signal interference and eliminates cable distortion during operation.

Applications

Woodworking: Panel processing, door/window making, furniture engraving, and custom carpentry.
Advertising: Signage, logo cutting, and acrylic display fabrication.
Model & Prototype: Architectural models, wood patterns, foam molds, and prop making.
Creative Arts: Musical instrument carving, decorative engravings, and craft gifts.

Frequently Asked Questions

Q1: Can customized services be supported?

A1: Yes, we can customize the color, size and logo you need.

Q2: Where is your factory located?

A2: We are a Chinese manufacturer in Qingdao city, Shandong province.

Q3: Can you make the machine according to my design or prototype?

A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.

Q4: This is the first time I use this kind of machine, is it easy to operate?

A4: We provide guide videos and English instruction manuals with the machine. Our team offers free professional guidance until you can operate the machine proficiently.

Q5: What's your MOQ and delivery?

A5: Minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for the best shipping rates and machine pricing.

Q6: How is your after sales service?

A6: Our sales team is available 24/7. We also provide overseas installation services.

Q7: If my machine is broken, can you repair it for me?

A7: Yes. We offer free online training. For major issues during warranty period, we provide repair services.
