| Brand Name: | BaiHang |
| Model Number: | BH1325M |
| MOQ: | 1 |
| Price: | $2000 - $2400 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets /year |

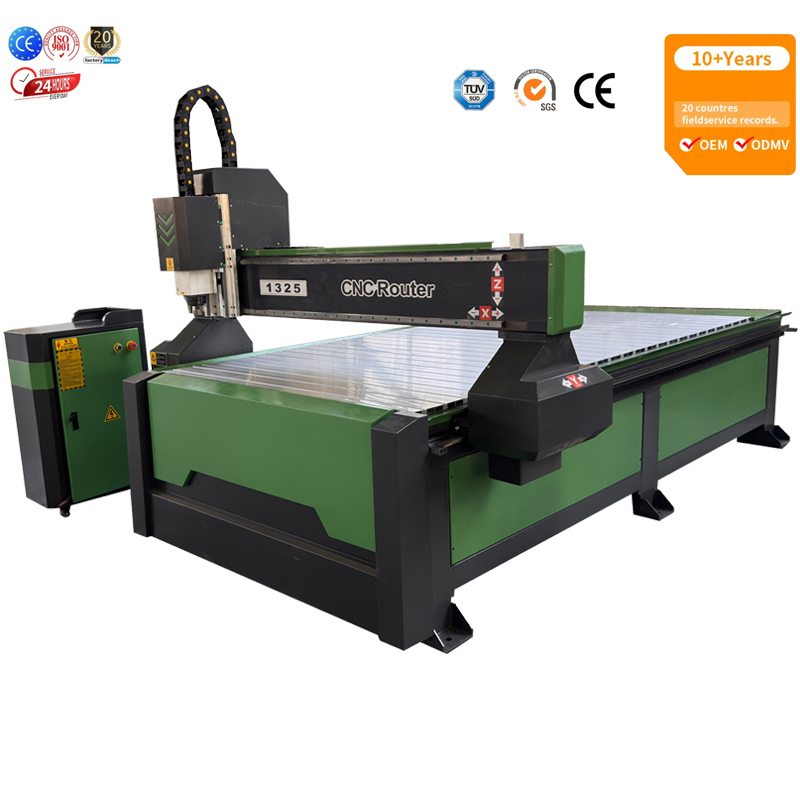

Our 1325 CNC Router is a professional-grade solution designed for high-efficiency nesting, drilling, and machining. It combines a robust mechanical structure with a high-performance control system to deliver reliable, accurate, and cost-effective performance for woodworking applications.
| Component | Specification |
|---|---|
| Fuselage structure | Square tube welded bed body, detachable |
| Longmen structure | Thickened square steel gantry, cast iron columns |
| Mesa structure | Aluminum profiles+PVC, vertical laying of profiles |
| Body size | 3100*2000*1750mm |
| Table size | 1300*2500mm |
| Effective work schedule | 1.3mX2.5m (standard board size) |
| Machining accuracy | 0.05mm |
| Transmission structure | Three axis 20 square track and slider |
| Rack | 1.25m high-precision gear rack |
| Z-axis component | Drive belt+gear transmission |
| Motor set | Chuangwei 450B stepper motor |
| Driver | Skyworth 860 Drive |
| Spindle power | 6.0KW air-cooled spindle, speed 24000 RPM |
| Frequency converter | Zhuzhou 7.5KW frequency converter |
| Operating system | JM Weihong |
| Cabinet | Independent chassis control cabinet |
| Machine color | Grayish green |
| Working voltage | 380/220V 50Hz |
